Windstar V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trailer Connector
Trailer Connector

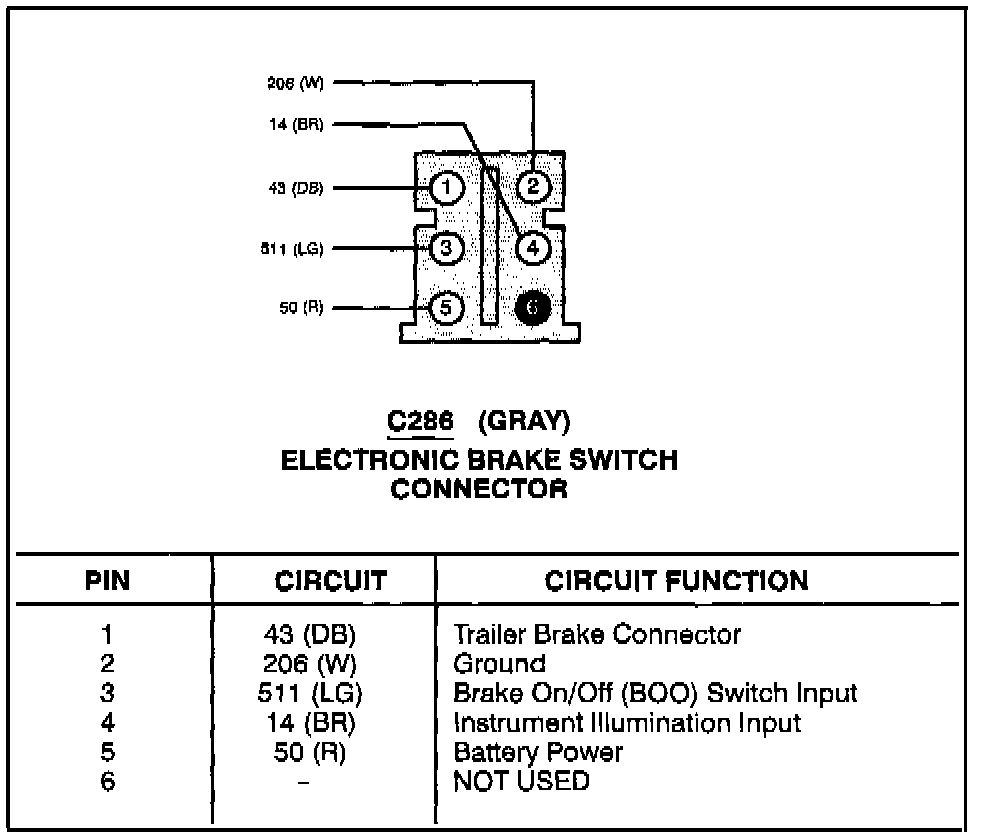

Electronic Brake Switch Connector:
