General Module

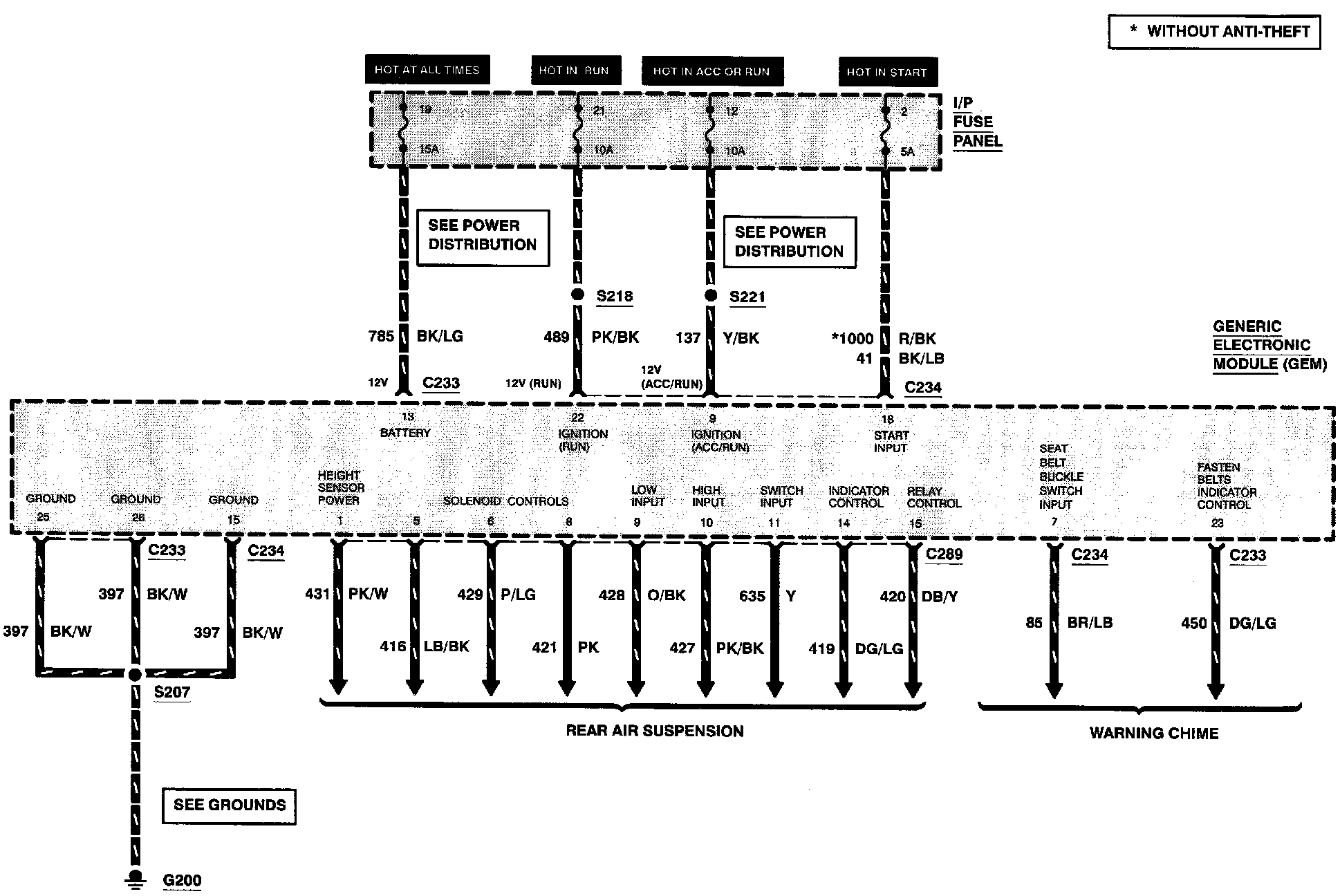

Generic Electronic Module (Part 1 Of 5):

BATTERY
FASTEN BELTS INDICATOR CONTROL
HEIGHT SENSOR POWER
SEAT BELT BUCKLE SWITCH INPUT

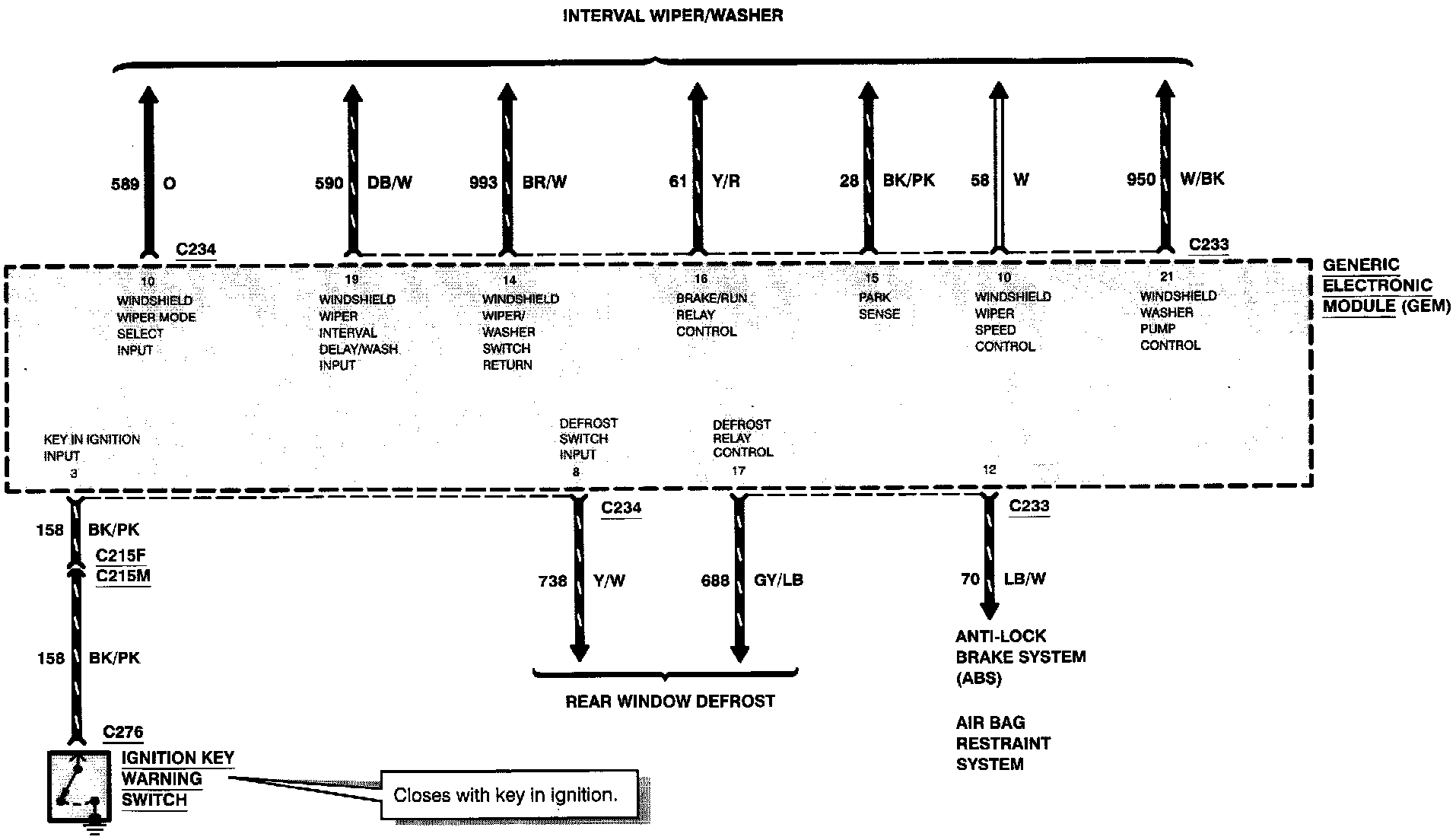

Generic Electronic Module (Part 2 Of 5):

BRAKE/RUN RELAY CONTROL
DEFROST RELAY CONTROL
DEFROST SWITCH INPUT
IGNITION KEY WARNING SWITCH
KEY IN IGNITION INPUT
PARK SENSE
WINDSHIELD WIPER INTERVAL DELAY/WASH INPUT
WINDSHIELD WIPER MODE SELECT INPUT
WINDSHIELD WIPER SPEED CONTROL
WINDSHIELD WIPER/WASHER SWITCH RETURN
WINDSHIELD WASHER PUMP CONTROL

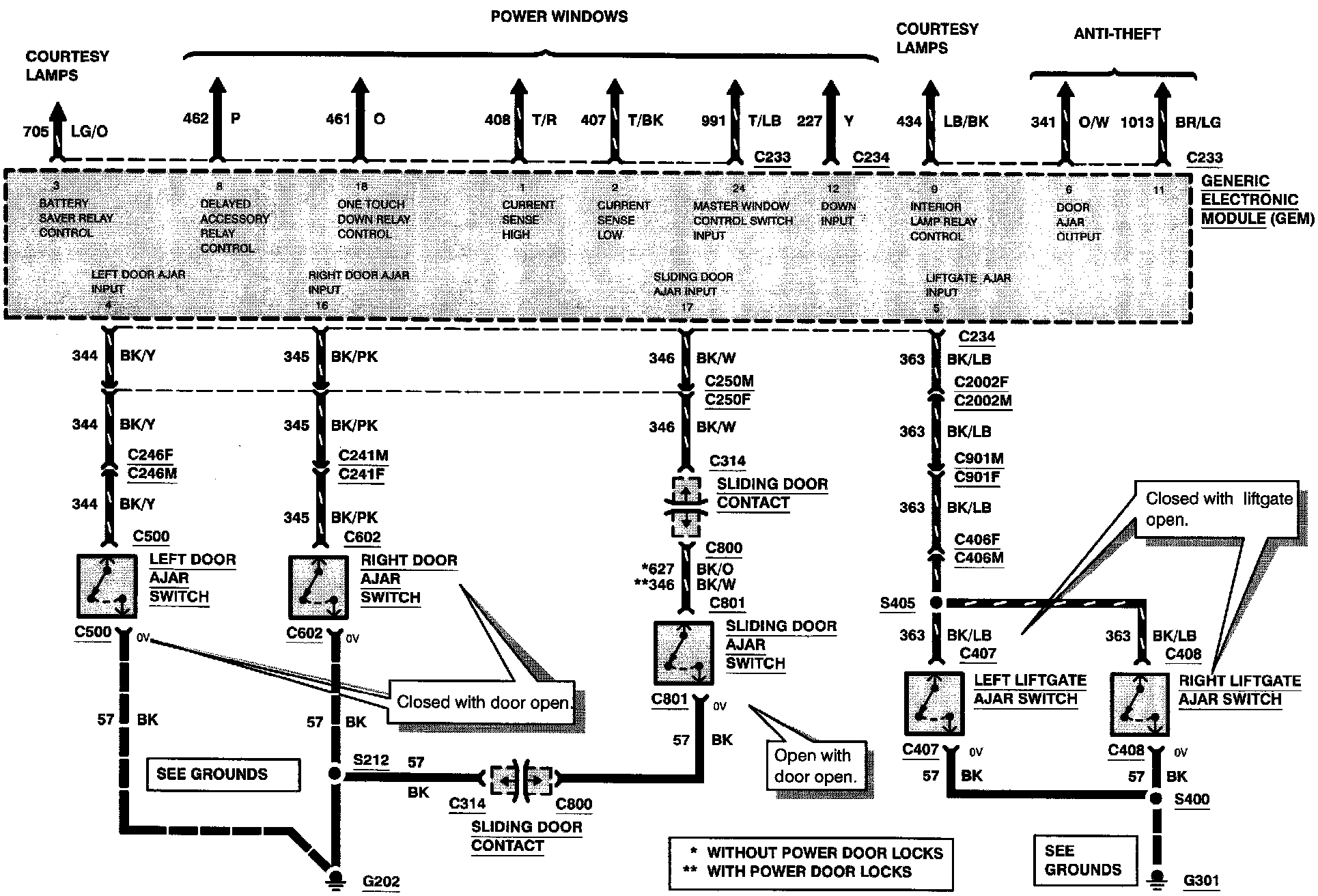

Generic Electronic Module (Part 3 Of 5):

BATTERY SAVER RELAY CONTROL
CURRENT SENSE HIGH
CURRENT SENSE LOW
DELAYED ACCESSORY RELAY CONTROL
DOOR AJAR OUTPUT
DOWN INPUT
[1][2]INTERIOR LAMP RELAY CONTROL
LEFT DOOR AJAR INPUT
LEFT DOOR AJAR SWITCH
LEFT LIFTGATE AJAR SWITCH
LIFTGATE AJAR INPUT
MASTER WINDOW CONTROL SWITCH INPUT
ONE TOUCH DOWN RELAY CONTROL
RIGHT DOOR AJAR INPUT
RIGHT DOOR AJAR SWITCH
RIGHT LIFTGATE AJAR SWITCH
SLIDING DOOR AJAR INPUT
SLIDING DOOR AJAR SWITCH
SLIDING DOOR CONTACT

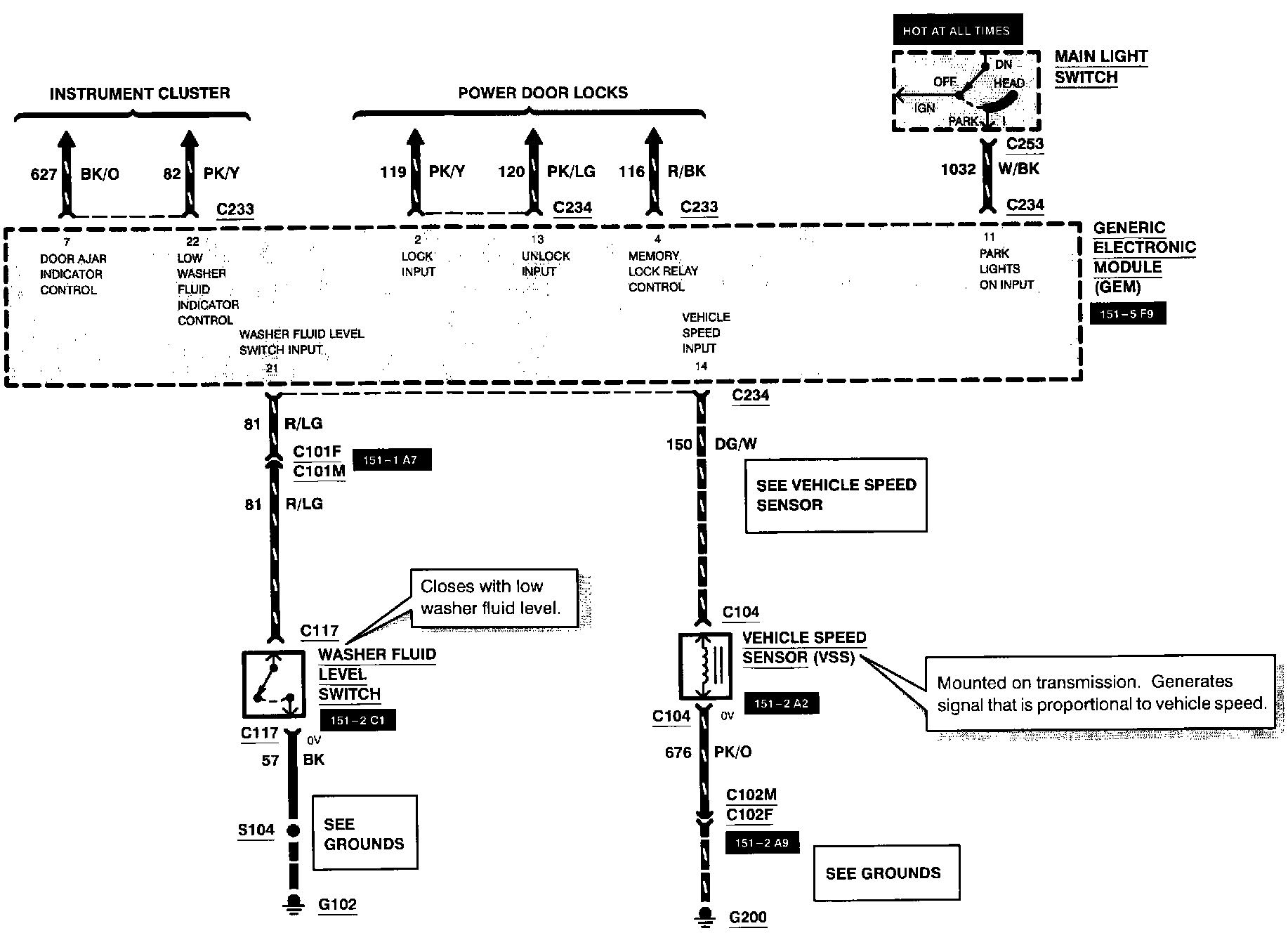

Generic Electronic Module (Part 4 Of 5):

DOOR AJAR INDICATOR CONTROL
LOW WASHER FLUID INDICATOR CONTROL
MAIN LIGHT SWITCH
MEMORY LOCK RELAY CONTROL
PARK LIGHTS ON INPUT
VEHICLE SPEED INPUT
VEHICLE SPEED SENSOR
WASHER FLUID LEVEL SWITCH
WASHER FLUID LEVEL SWITCH INPUT

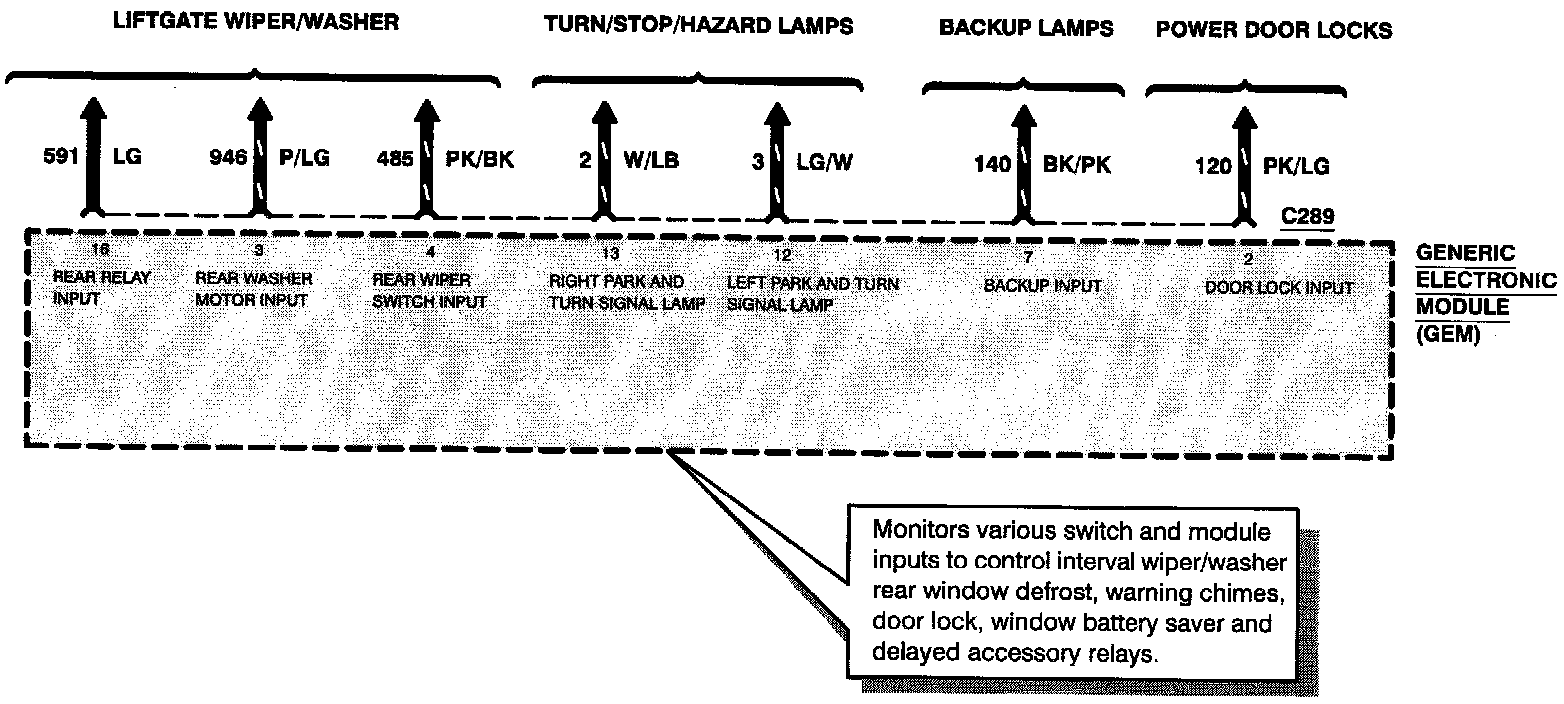

Generic Electronic Module (Part 5 Of 5):

BACKUP INPUT
DOOR LOCK INPUT
LEFT PARK AND TURN SIGNAL LAMP
REAR RELAY INPUT
REAR WASHER MOTOR INPUT
REAR WIPER SWITCH INPUT
RIGHT PARK AND TURN SIGNAL LAMP
