Blower Motor Switch: Testing and Inspection

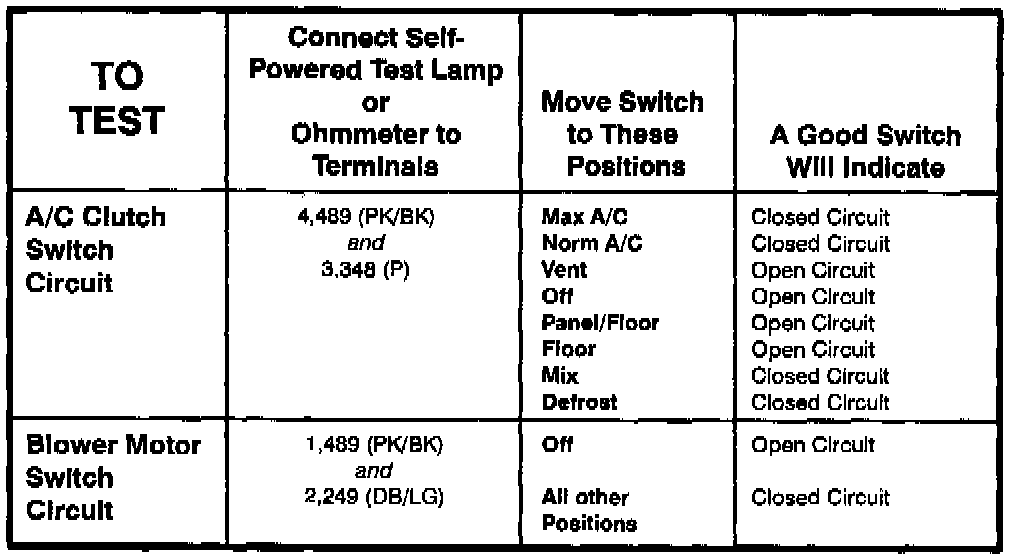

Blower Motor Switch - Component Testing Procedure:

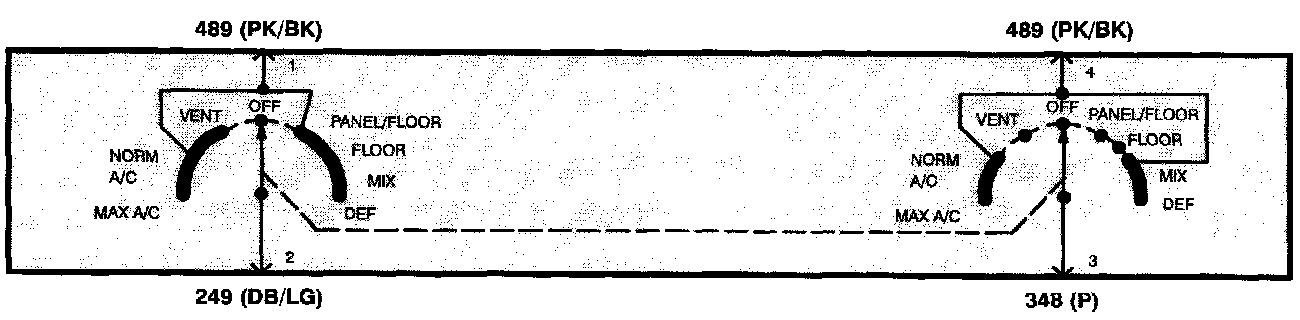

Blower Motor Switch - Terminal Locations:




Blower Motor Switch -schematic:
