Compressor Clutch Relay: Locations

Engine View:

The A/C Clutch Relay is located in the engine compartment fuse box.

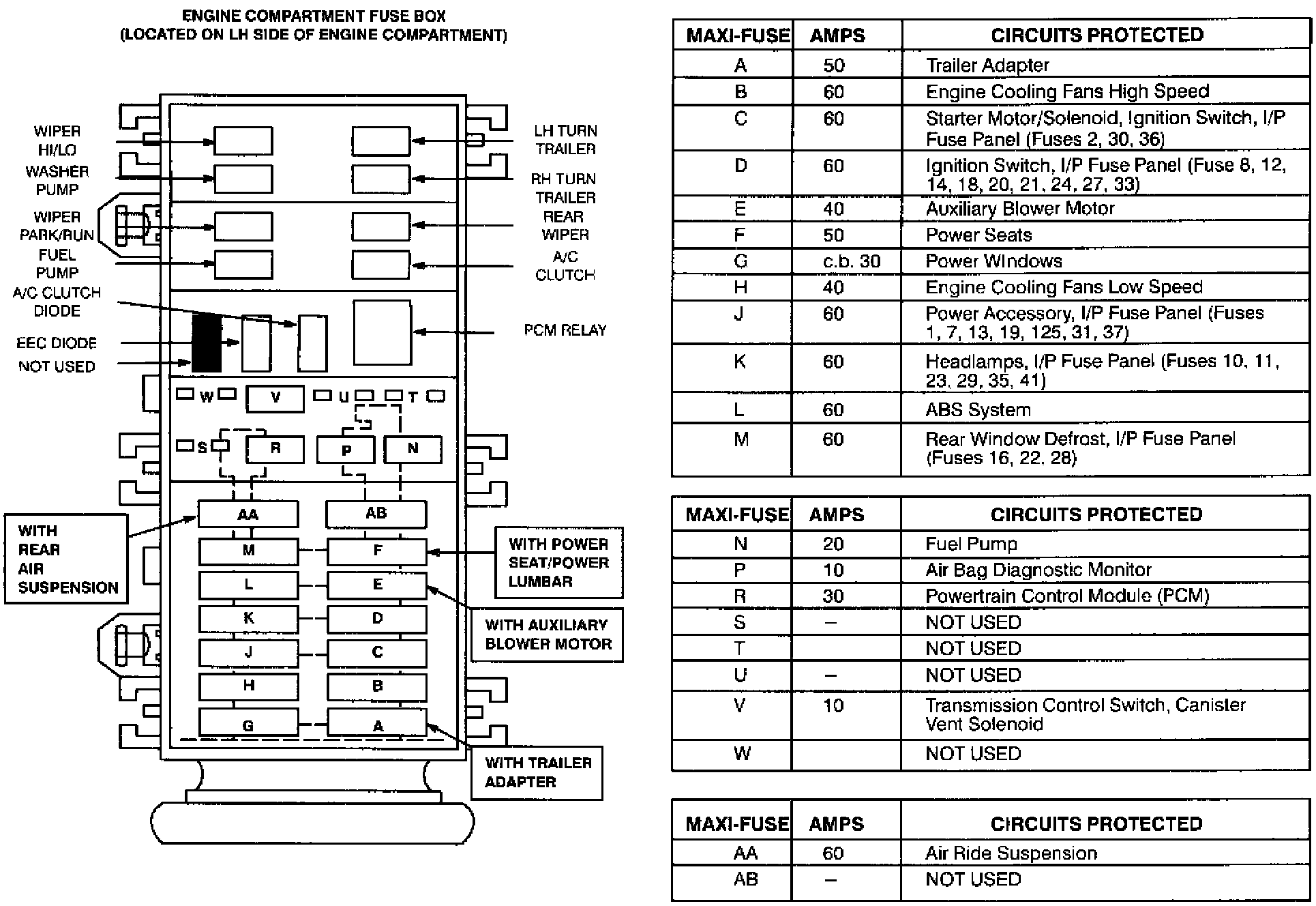

Engine Compartment Fuse Box:

Fuse Box Diagram for vehicles built prior to 9/8/97





Fuse Box Diagram for vehicles built after 9/8/97
