Control Assembly: Testing and Inspection

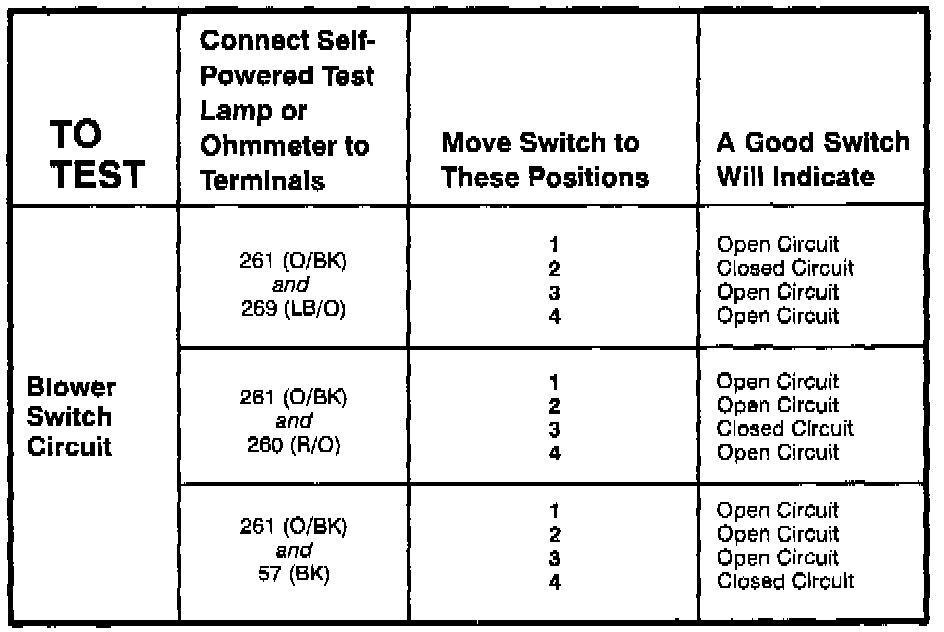

A/C-Heater Control Switch - Component Testing Procedure:

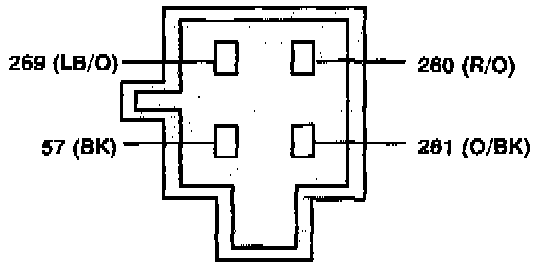

A/C-Heater Control Switch - Terminal Locations:

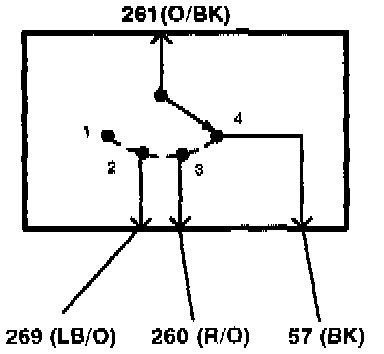

A/C-Heater Control Switch - Schematic:
