Expansion Valve: Service and Repair

REMOVAL
1. Remove the auxiliary A/C evaporator core.





2. Remove the capillary tube retaining clip located on the A/C evaporator core outlet pipe.

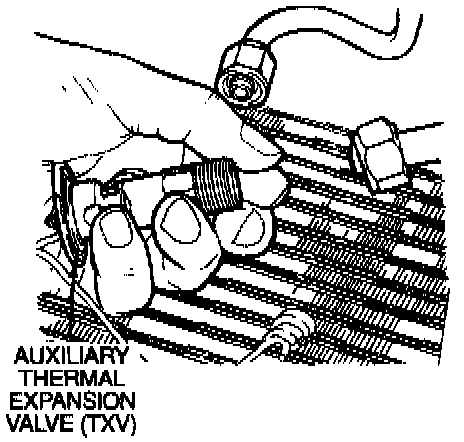

3. Loosen the thermostatic expansion valve compression fitting and remove the A/C evaporator expansion valve from the condenser to evaporator tube.

INSTALLATION
1. To install, reverse Removal procedure.
