Home >> Ford >> 1998 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Pinpoint Tests >> BA No Communication With Generic Electronic Module

BA No Communication With Generic Electronic Module

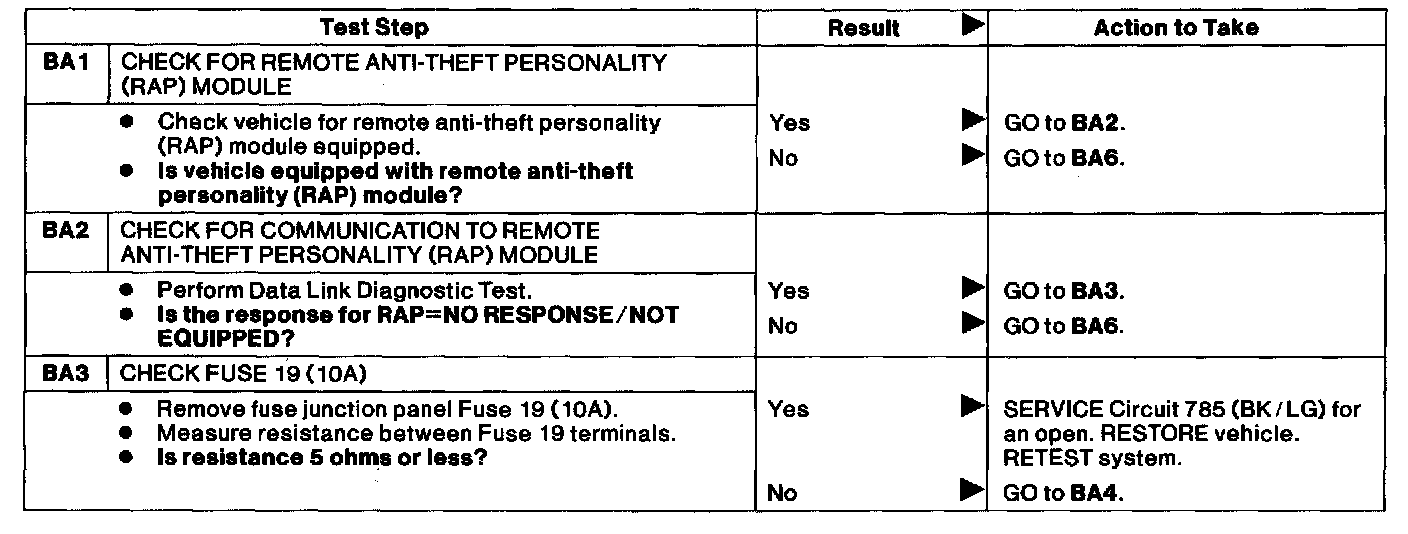

BA1 - BA3:

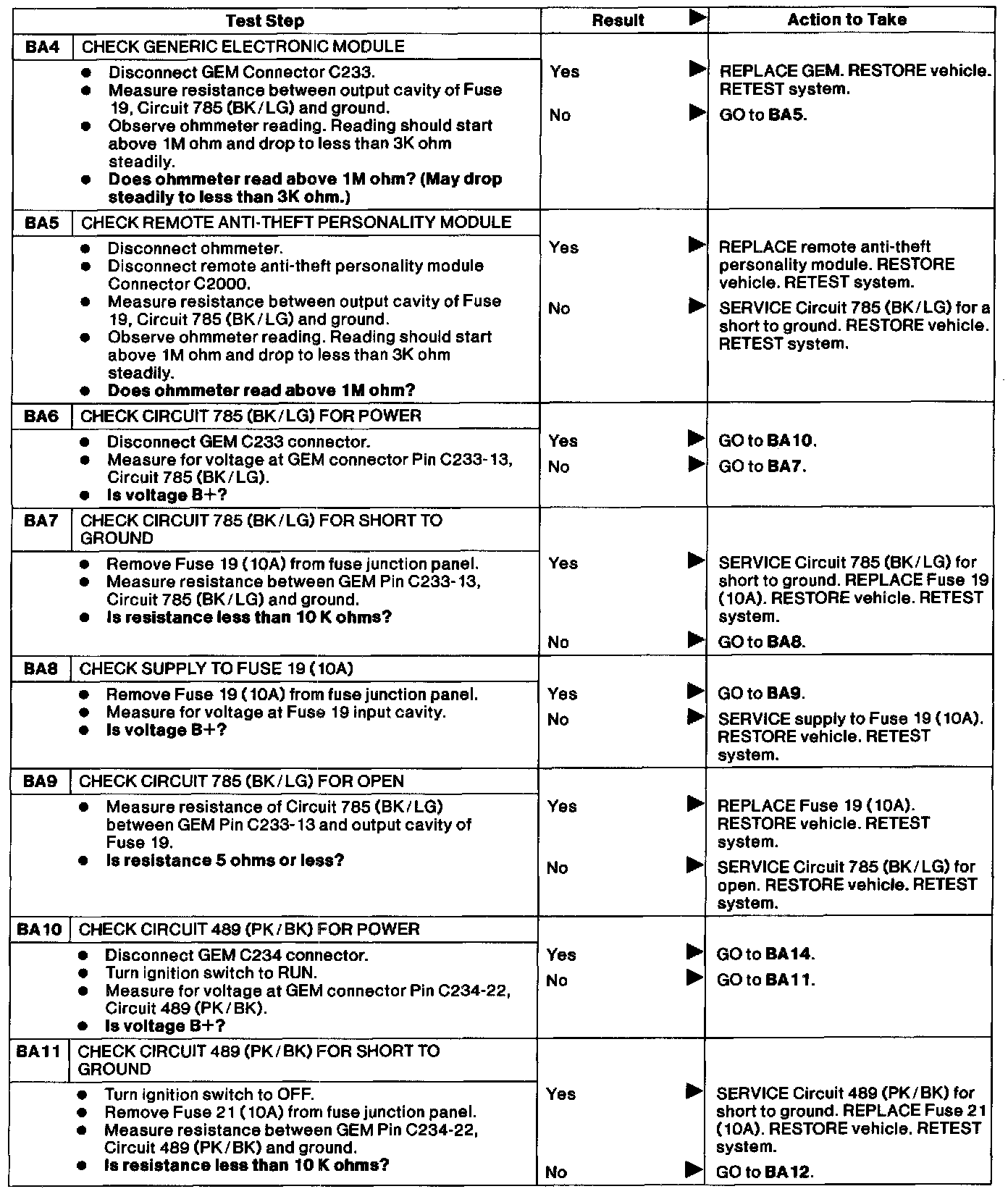

BA4 - BA11:

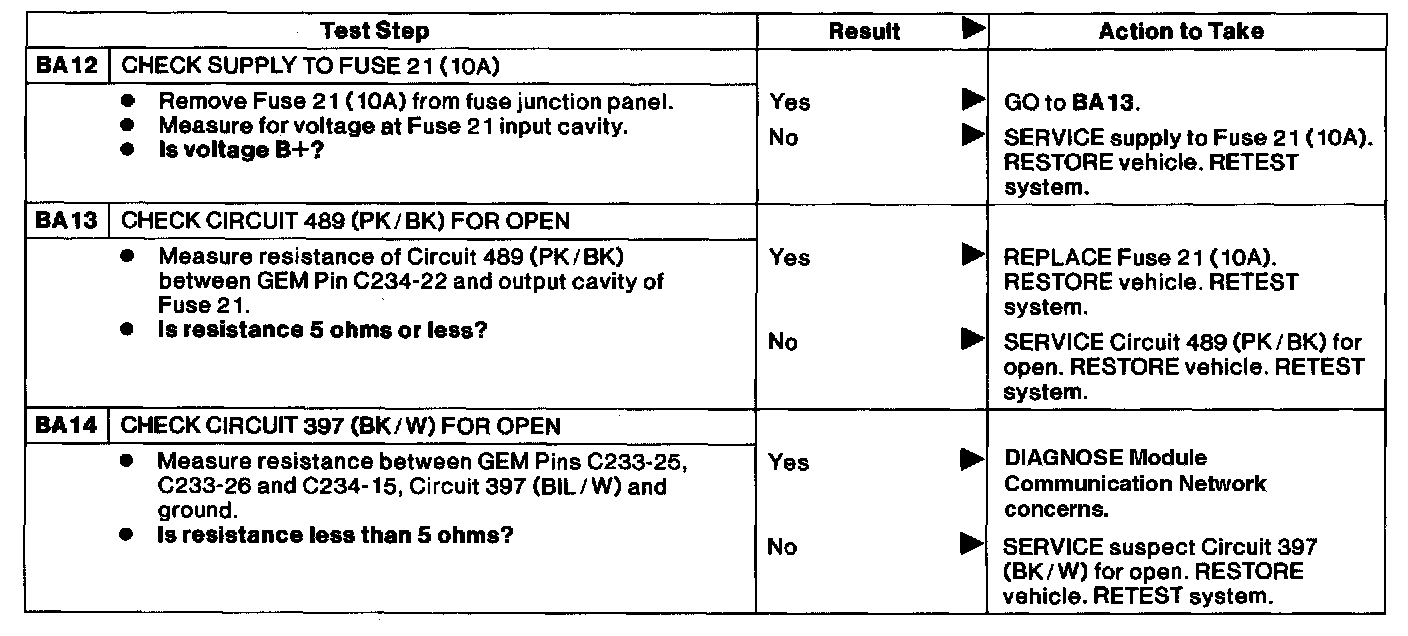

BA12 - BA14:
