Engine Views

Engine View:

A/C CLUTCH CYCLING PRESSURE SWITCH
A/C CLUTCH RELAY
A/C DIODE
A/C HIGH PRESSURE CUTOUT/FAN SWITCH
ENGINE COMPARTMENT FUSE BOX
ENGINE COOLING FAN MOTOR HIGH AND LOW SPEED RELAYS
FUEL PUMP RELAY
FUSIBLE LINKS A, B & C
HEATED OXYGEN SENSOR #12
HEATED OXYGEN SENSOR #22
HIGH PITCH HORN
LEFT FRONT PARK/TURN LAMP
LEFT FRONT SIDE MARKER LAMP
LEFT HEADLAMP
LEFT RADIATOR CRASH SENSOR
LH TRAILER TURNS/STOP/HAZARD RELAY
LIFTGATE WIPER RELAY
LOW PITCH HORN
OCTANE ADJUST PLUG
PCM POWER RELAY
POWERTRAIN CONTROL MODULE
RH TRAILER TURNS/STOP/HAZARD RELAY
RIGHT FRONT PARK/TURN LAMP
RIGHT FRONT SIDE MARKER LAMP
RIGHT HEADLAMP
RIGHT RADIATOR CRASH SENSOR
WINDSHIELD WASHER PUMP MOTOR RELAY
WINDSHIELD WIPER DYNAMIC BRAKE/RUN RELAY
WINDSHIELD WIPER MOTOR
WINDSHIELD WIPER SPEED RELAY

Engine View:

A/C CLUTCH FIELD COIL
AMBIENT TEMPERATURE SENSOR
BRAKE PRESSURE SWITCH
COOLING FAN DROPPING RESISTOR
DAYTIME RUNNING LAMPS MODULE
ENGINE OIL PRESSURE SWITCH
EXHAUST GAS RECIRCULATION VACUUM REGULATOR SOLENOID VALVE
GENERATOR
HEATED OXYGEN SENSOR #11
INTAKE AIR TEMPERATURE SENSOR
INTAKE MANIFOLD RUNNER CONTROL SOLENOID
LEFT FRONT WHEEL SPEED SENSOR
LIFTGATE WASHER PUMP MOTOR
MASS AIR FLOW SENSOR
SPEED CONTROL SERVO
VEHICLE SPEED SENSOR
WASHER FLUID LEVEL SWITCH
WINDSHIELD WASHER PUMP MOTOR

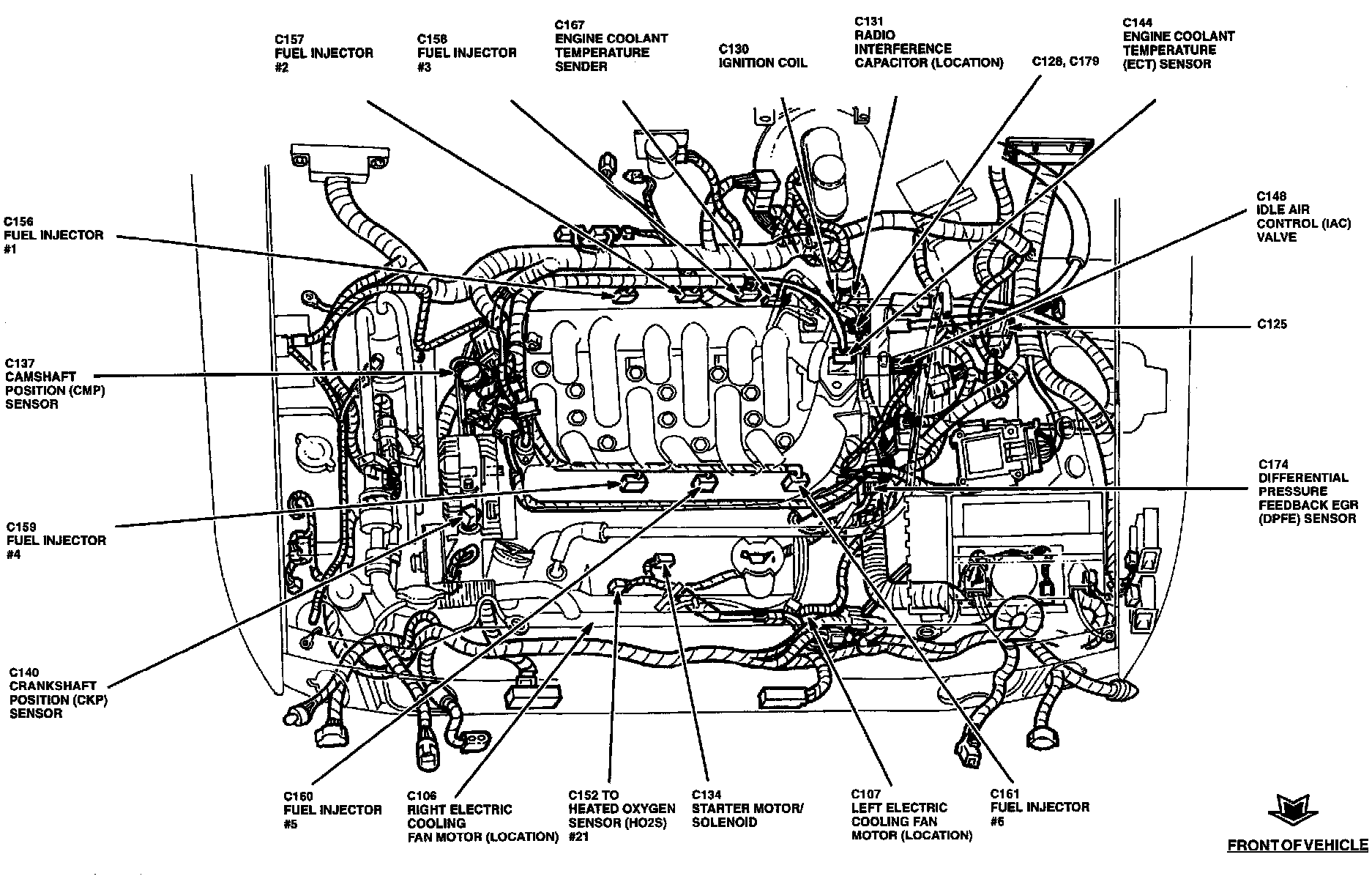

Engine View:

CAMSHAFT POSITION SENSOR
CRANKSHAFT POSITION SENSOR
DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR
ENGINE COOLANT TEMPERATURE SENDER
ENGINE COOLANT TEMPERATURE SENSOR
FUEL INJECTOR #1
FUEL INJECTOR #2
FUEL INJECTOR #3
FUEL INJECTOR #4
FUEL INJECTOR #5
FUEL INJECTOR #6
HEATED OXYGEN SENSOR #21
IDLE AIR CONTROL VALVE
IGNITION COIL
LEFT ELECTRIC COOLING FAN MOTOR
RADIO INTERFERENCE CAPACITOR
RIGHT ELECTRIC COOLING FAN MOTOR
STARTER MOTOR/SOLENOID

Engine View:

AIR SUSPENSION COMPRESSOR MOTOR/VENT SOLENOID
AIR SUSPENSION COMPRESSOR RELAY
ANTI-LOCK BRAKE CONTROL MODULE
AX4S TRANSAXLE
BRAKE FLUID LEVEL SWITCH
EVAPORATIVE EMISSIONS CANISTER PURGE VALVE
INTAKE MANIFOLD RUNNER CONTROL MONITOR #1
INTAKE MANIFOLD RUNNER CONTROL MONITOR #2
LEFT FOG LAMP
RIGHT FOG LAMP
RIGHT FRONT WHEEL SPEED SENSOR
THROTTLE POSITION SENSOR
TRANSMISSION RANGE SENSOR
TURBINE SHAFT SPEED SENSOR
