Air Temperature Sensor ( Ambient / Intake ): Service and Repair

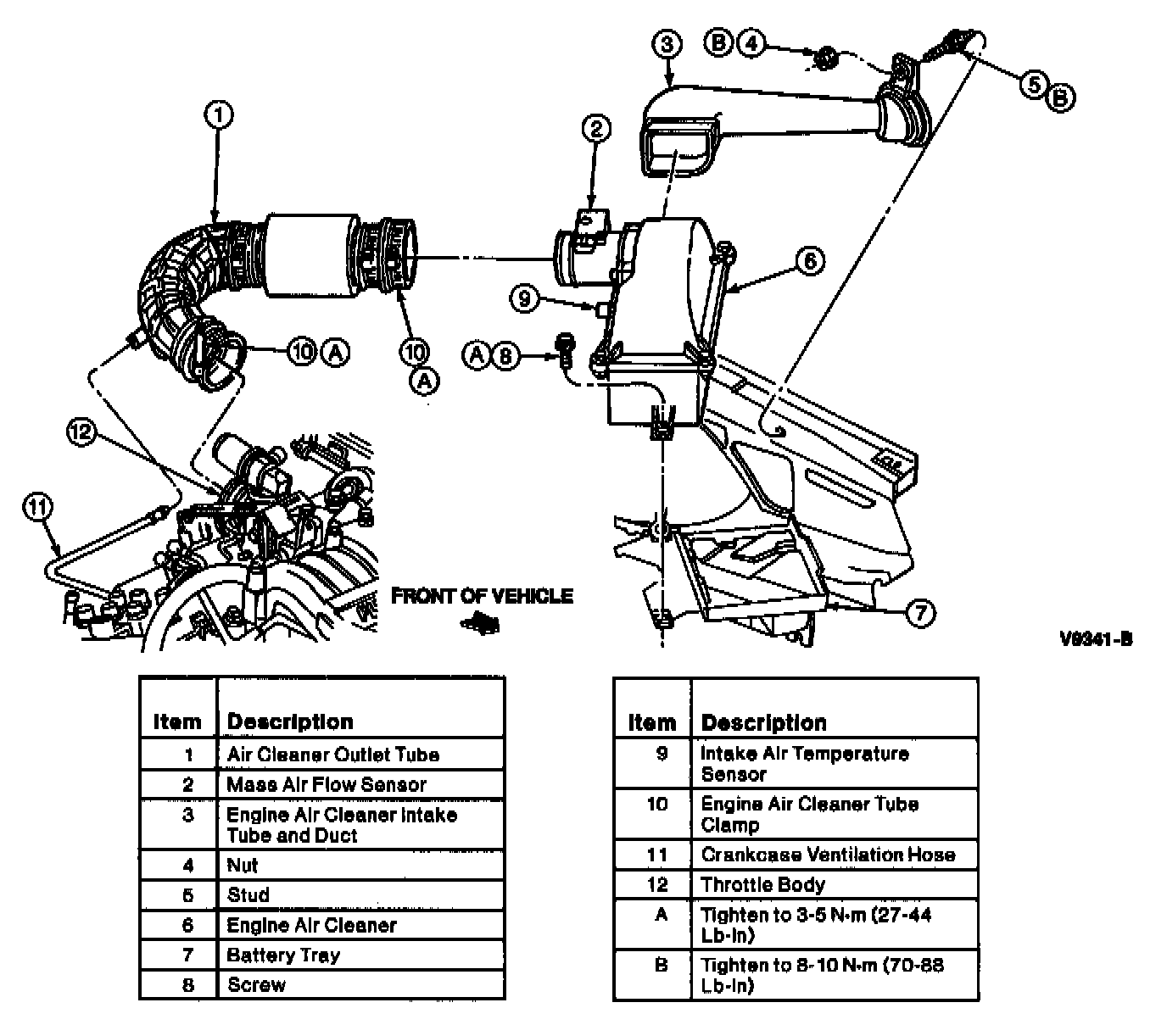

NOTE: The
intake air temperature sensor is located in the air cleaner outlet tube.
REMOVAL 1.
Disconnect battery ground cable.
2.
Disconnect engine control sensor wiring from
intake air temperature sensor.
3.
Turn
intake air temperature sensor and gently pull to remove from air cleaner outlet tube.
INSTALLATION 1.
Follow removal procedure in reverse order.
