Coolant Temperature Sensor/Switch (For Computer): Service and Repair

Engine Coolant Temperature (ECT) Sensor:

REMOVAL
1. Disconnect battery ground cable.
2. Partially drain engine cooling system.
3. Disconnect engine control sensor wiring from Engine Coolant Temperature sensor (ECT sensor).

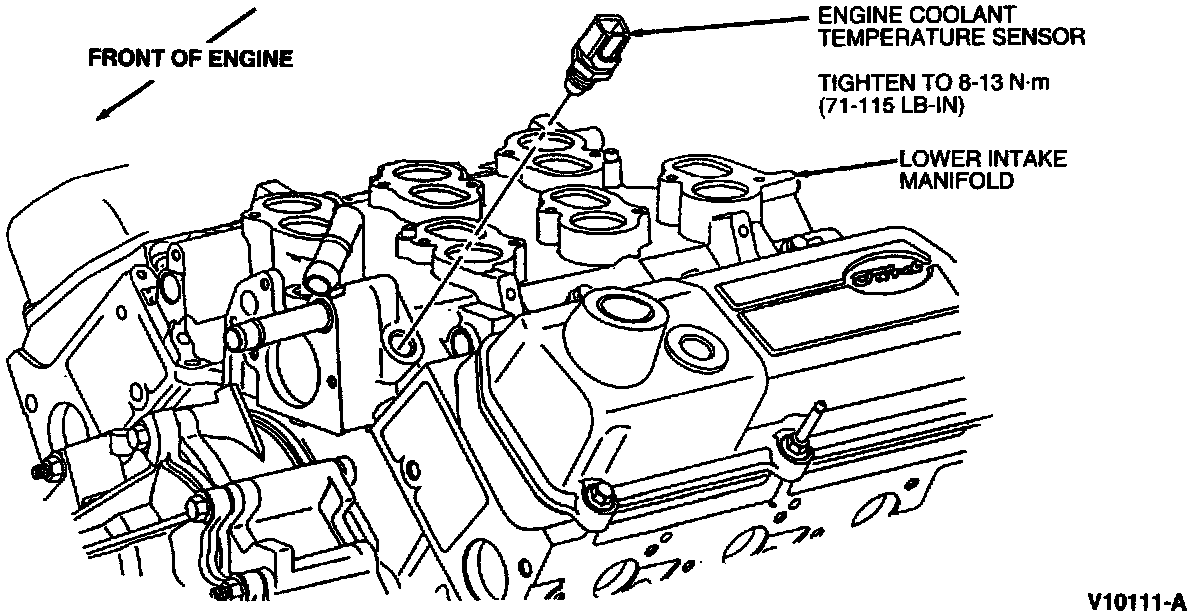

4. Remove engine coolant temperature sensor from intake manifold.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten engine coolant temperature sensor to 8-13 Nm (71-115 lb in). Refill engine cooling system.
