Electrical Diagrams

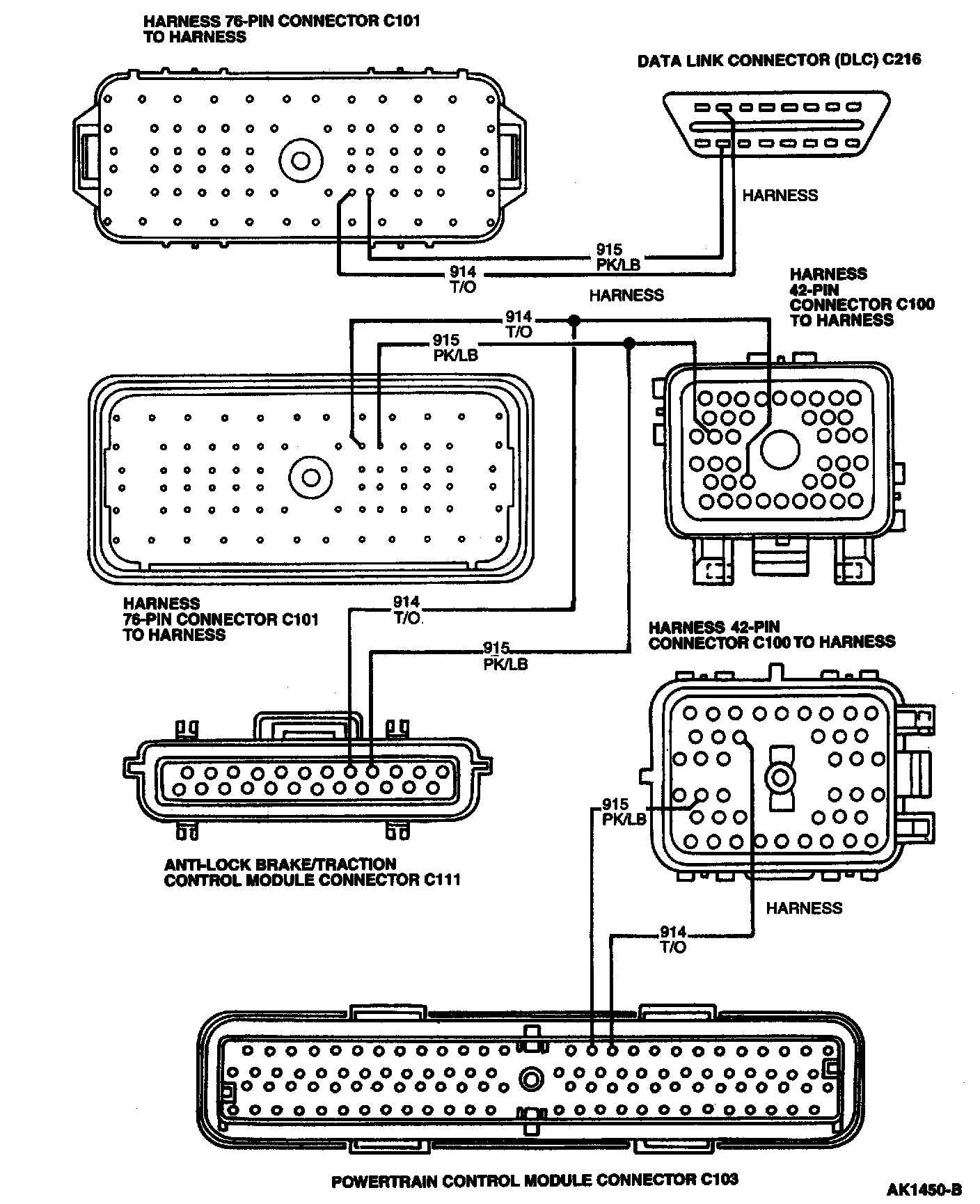

J1850 Communication Network Circuit 914 (T/O) and 915 (PK/LB)

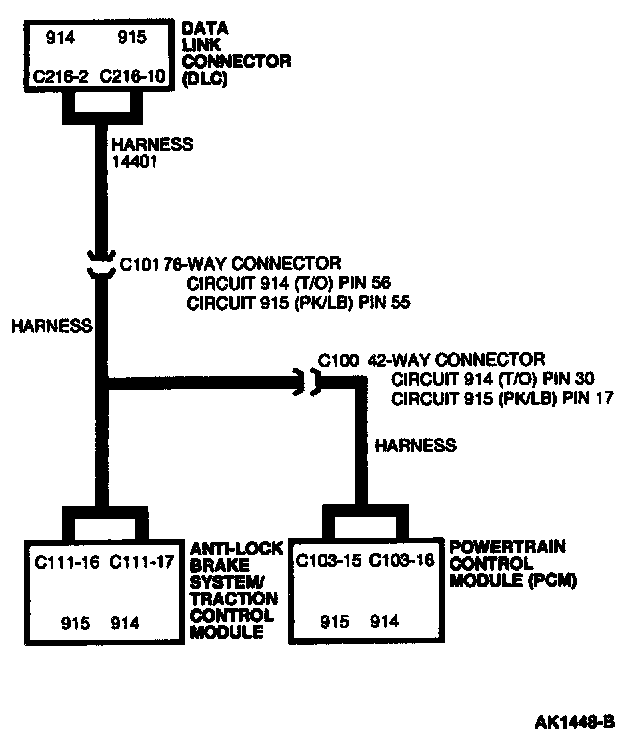

J1850 Communication Network Schematic

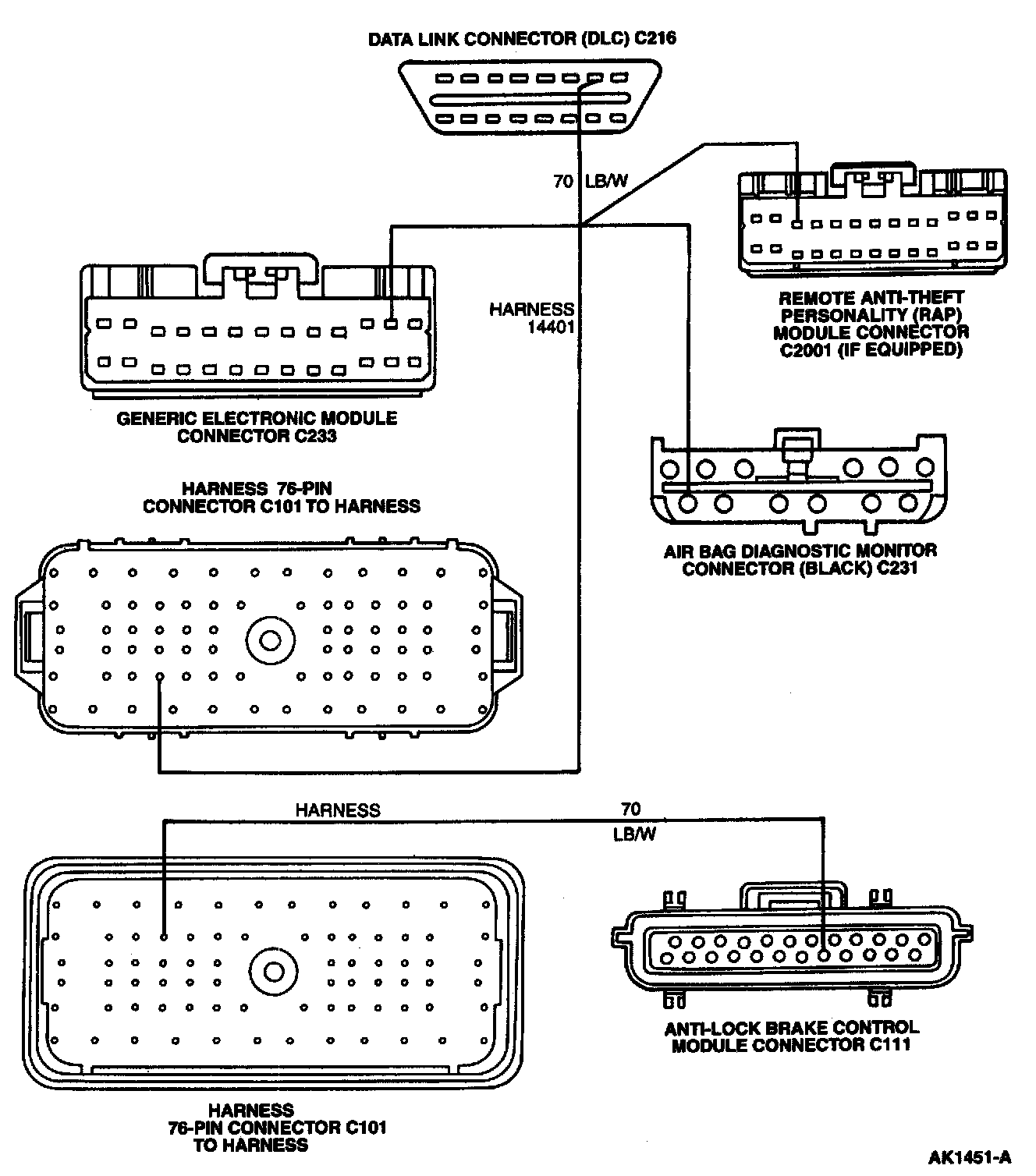

ISO 9141 Communication Network Circuit 70 (LB/W)

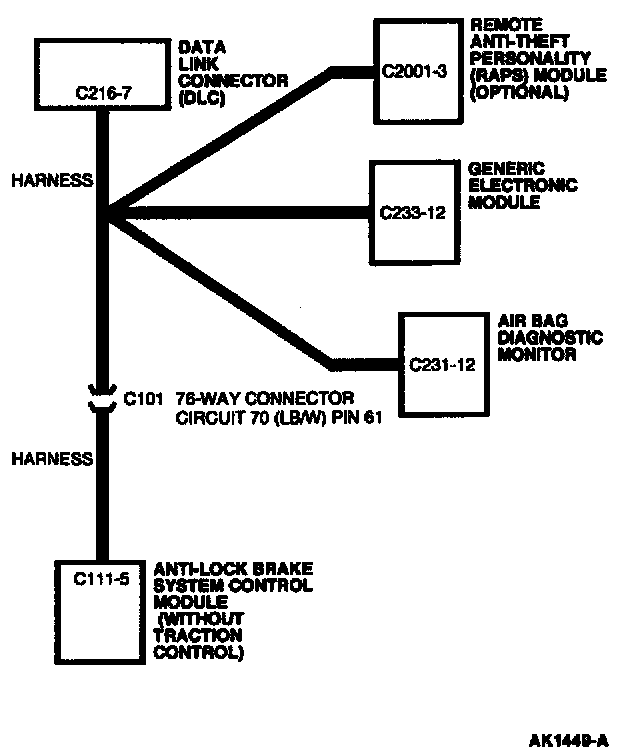

ISO 9141 Communication Network Schematic
J1850 Communication Network Circuit 914 (T/O) and 915 (PK/LB)
J1850 Communication Network Schematic
ISO 9141 Communication Network Circuit 70 (LB/W)
ISO 9141 Communication Network Schematic
