EGR Tube: Service and Repair

REMOVAL
1. Remove air cleaner outlet tube.
2. Disconnect EGR backpressure transducer hoses from EGR valve to exhaust manifold tube.

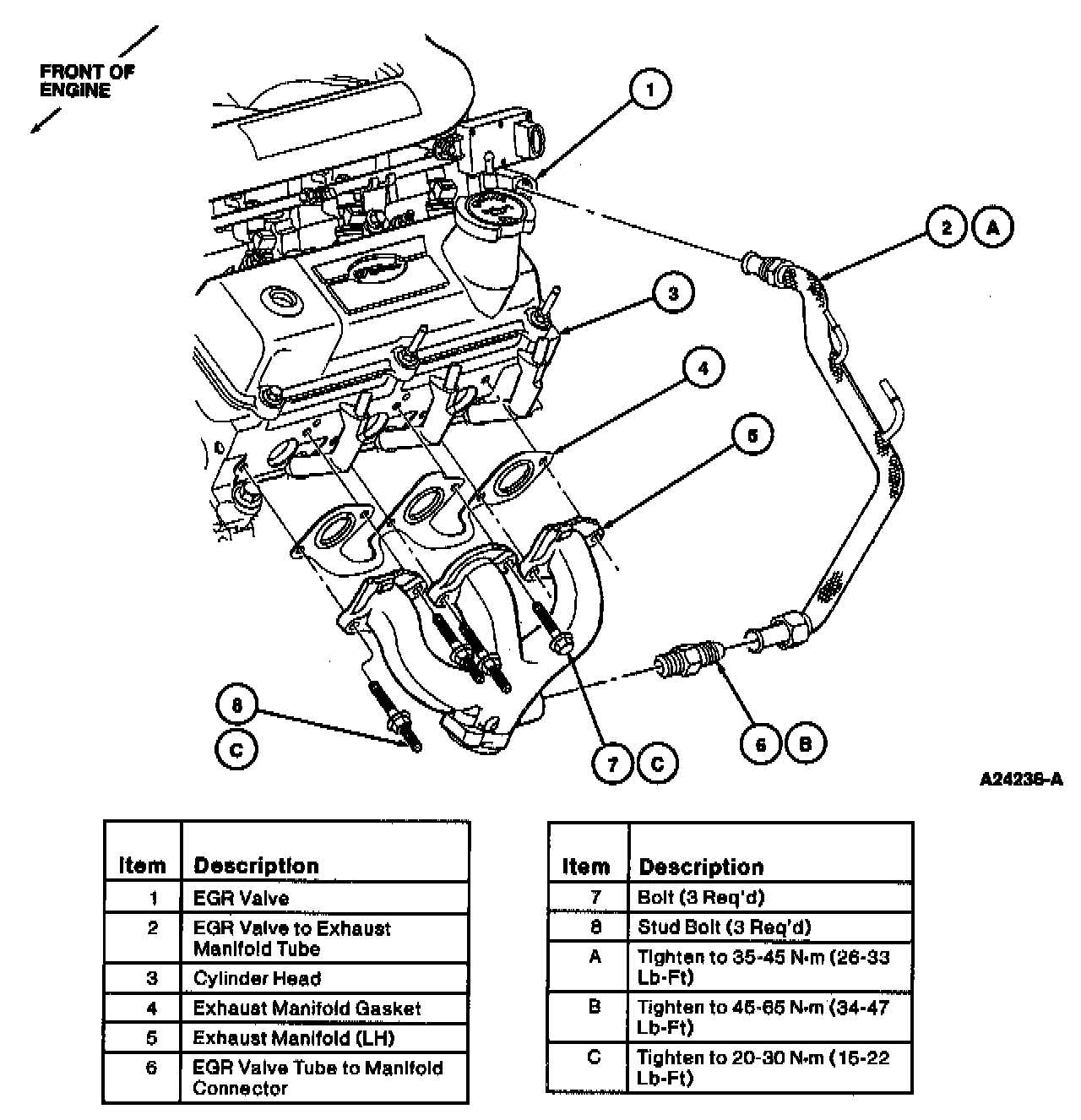

3. Disconnect EGR valve to exhaust manifold tube at EGR valve and exhaust manifold.
4. Remove EGR valve tube to manifold connector from exhaust manifold if required.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten EGR valve to exhaust manifold tube nuts to 35-45 Nm (26-33 lb ft). Tighten EGR valve tube to manifold connector to exhaust manifold to 45-65 Nm (34-47 lb ft), if removed.
