Solenoid Operation

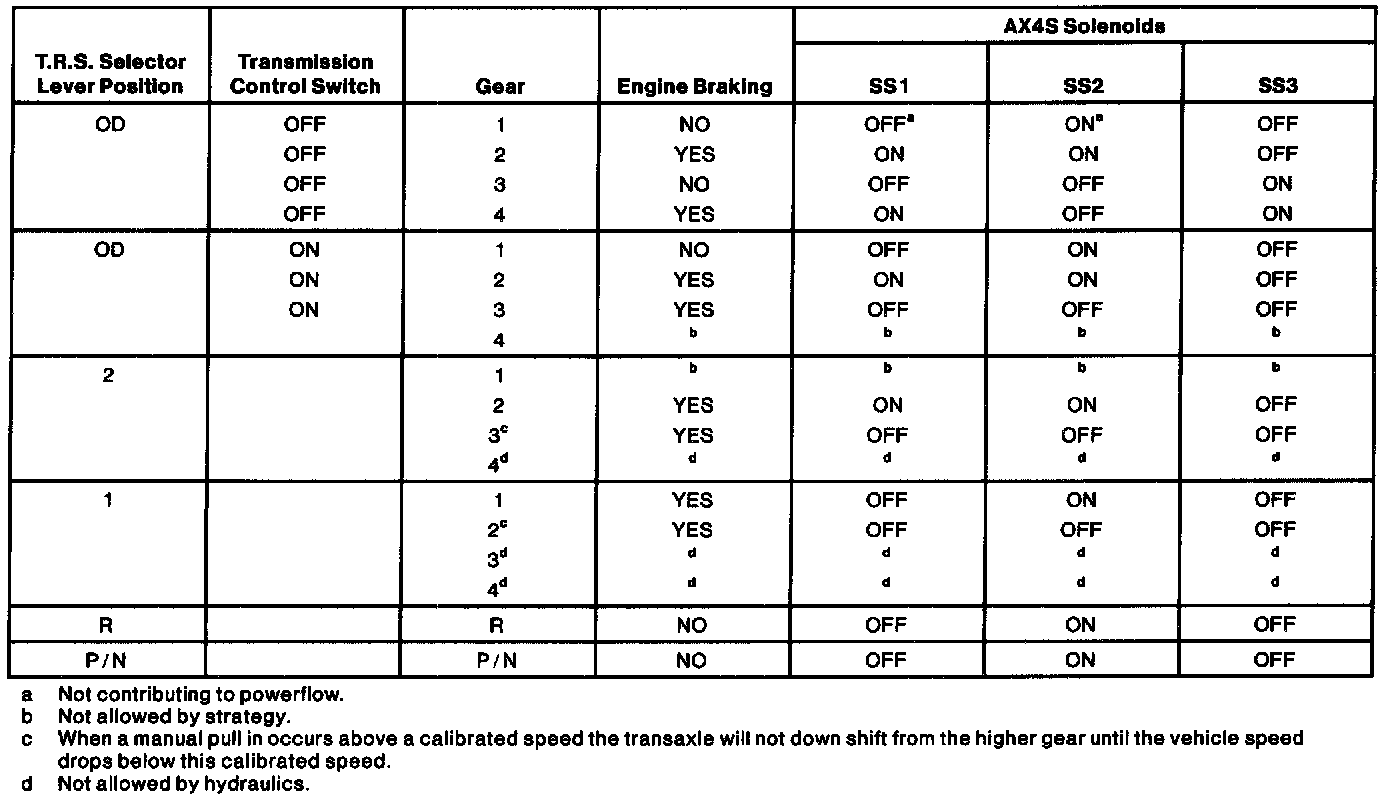

The shift solenoid operation chart shows normal
solenoid
operation for given operating modes.
