Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 1998 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Pinpoint Tests >> A: Shift Solenoids

A: Shift Solenoids

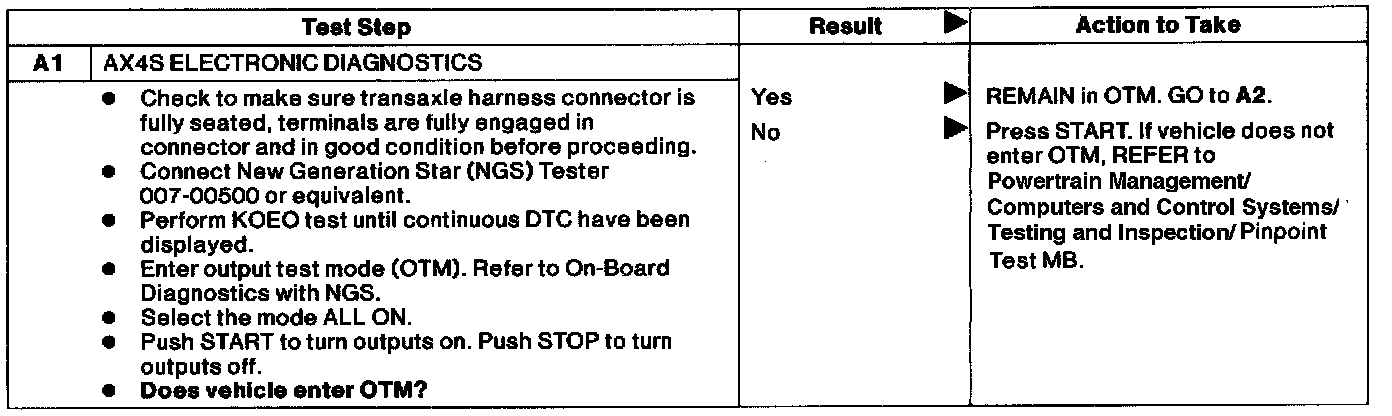

Test A1:

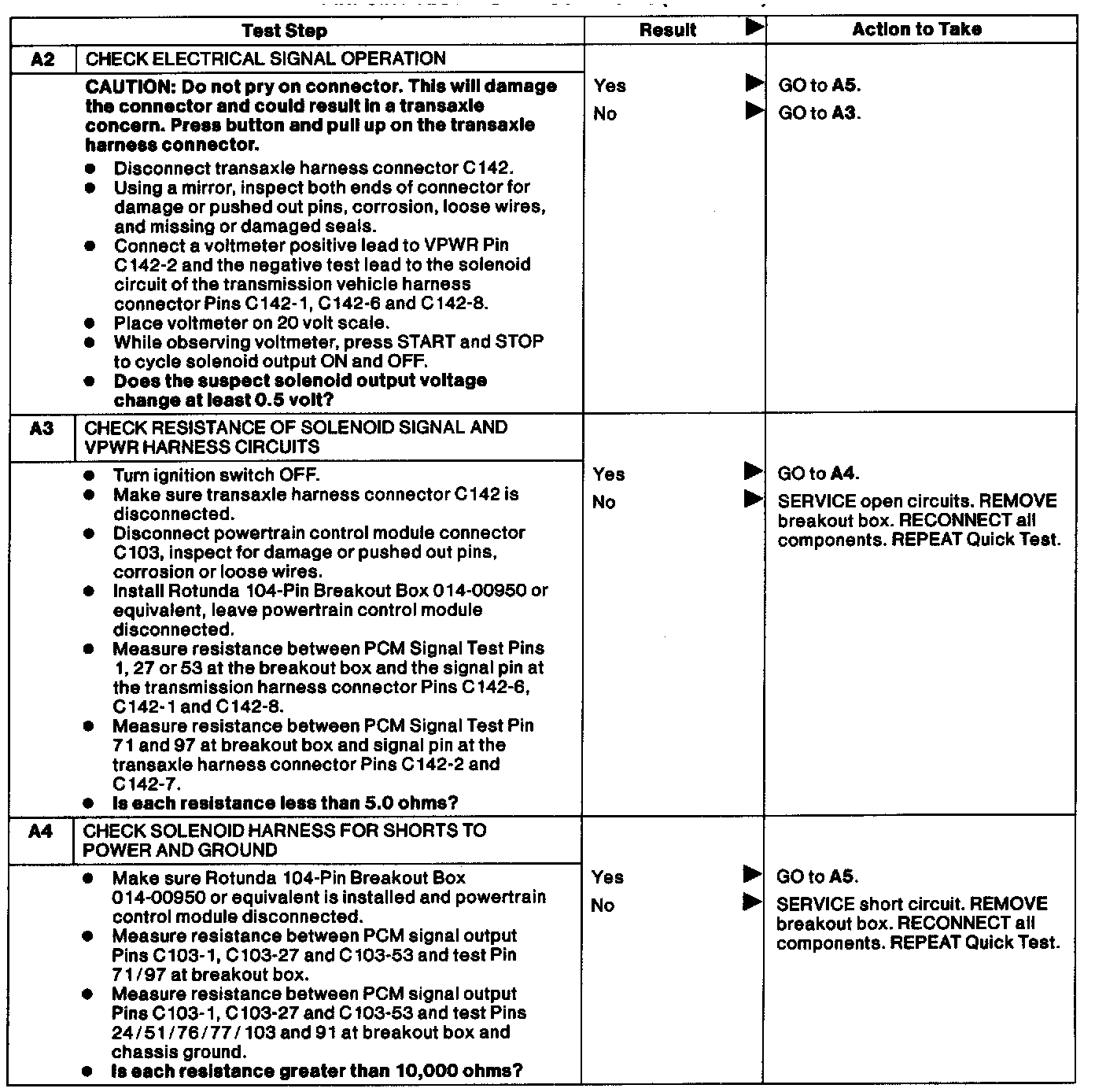

Test A2 - A4:




Test A5 - A6:




Test A7:

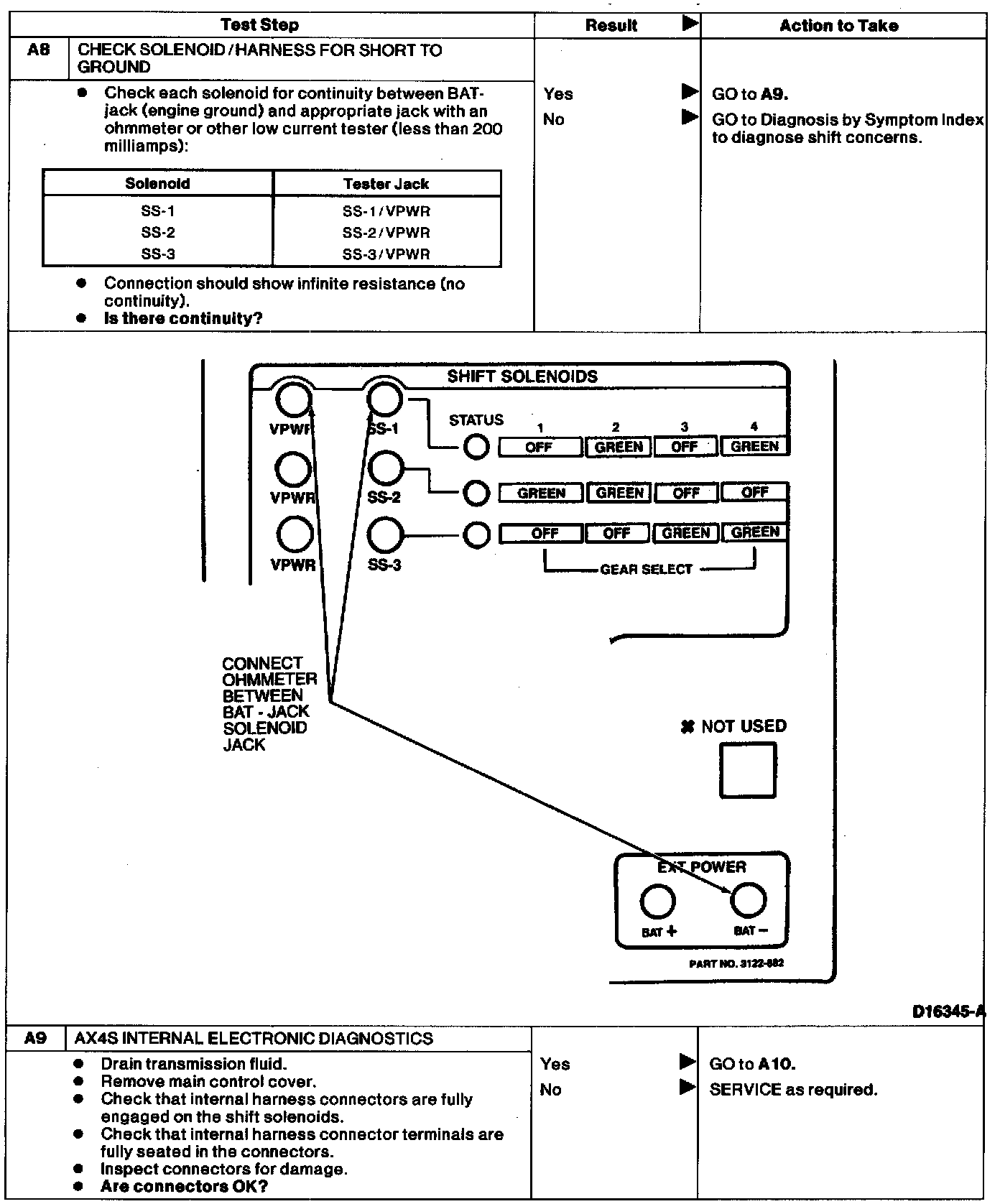

Test A8 - A9:




Test A10:
