D: Transmission Range (TR)/Manual Lever Position (MLP) Sensor
D: Transmission Range (TR)/Manual Lever Position (MLP) Sensor

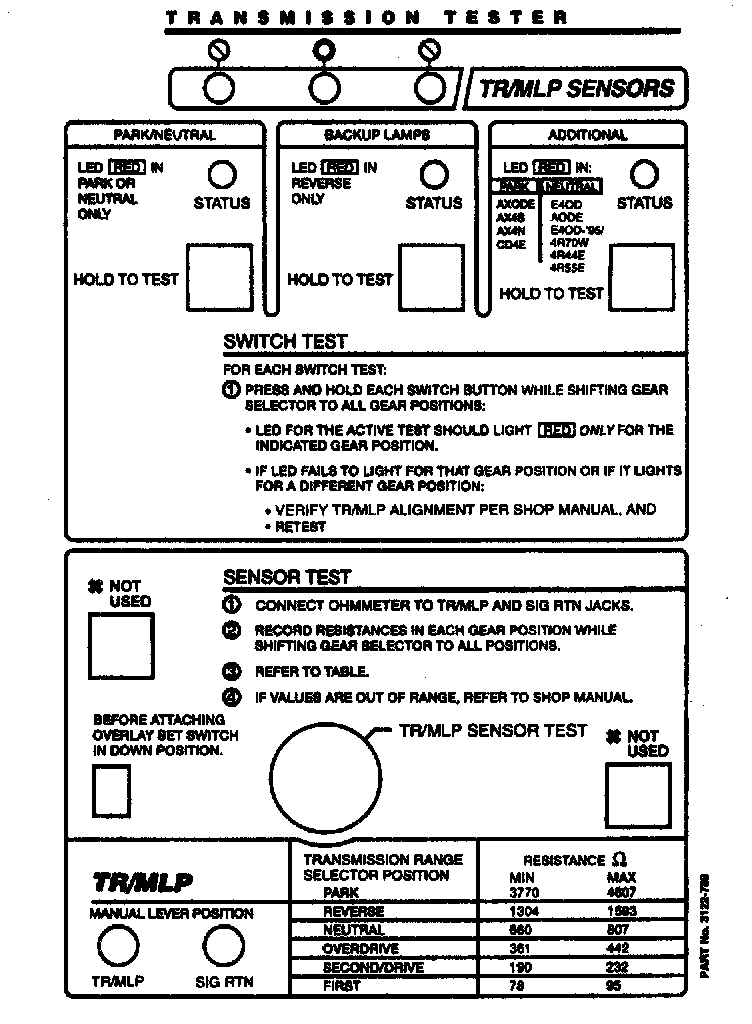

Rotunda TR/MLP Sensor Tester Overlay:

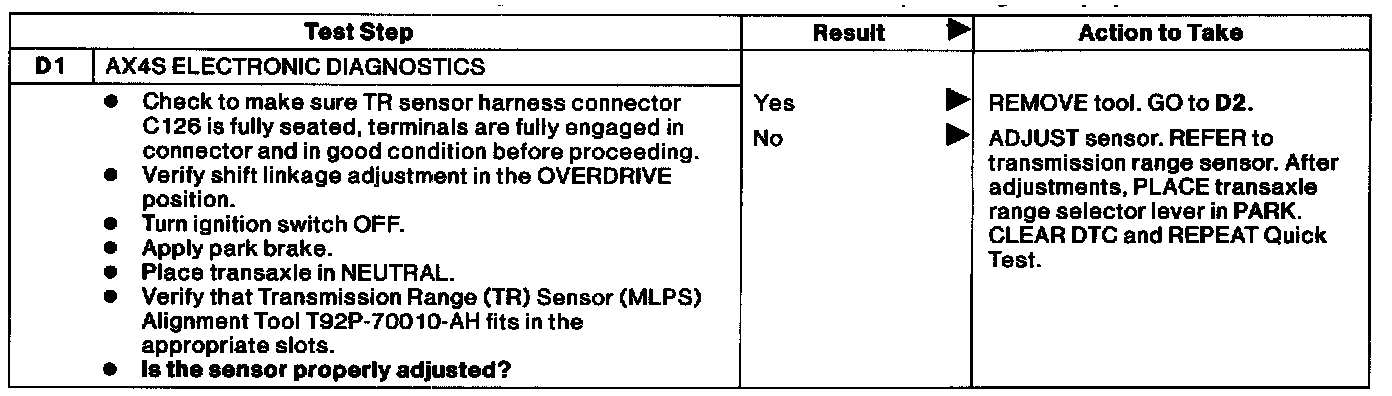

Test D1:

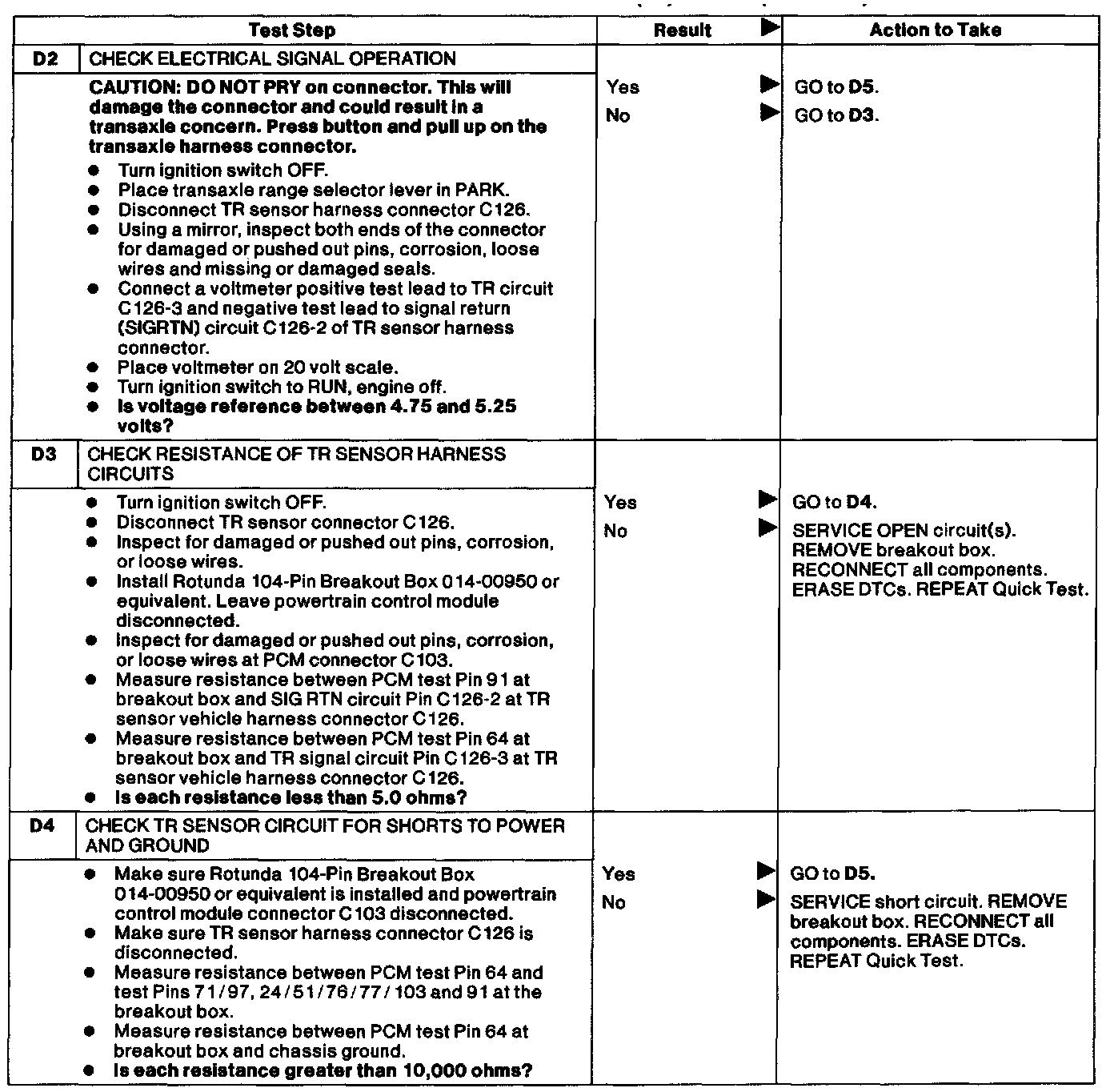

Test D2 - D4:

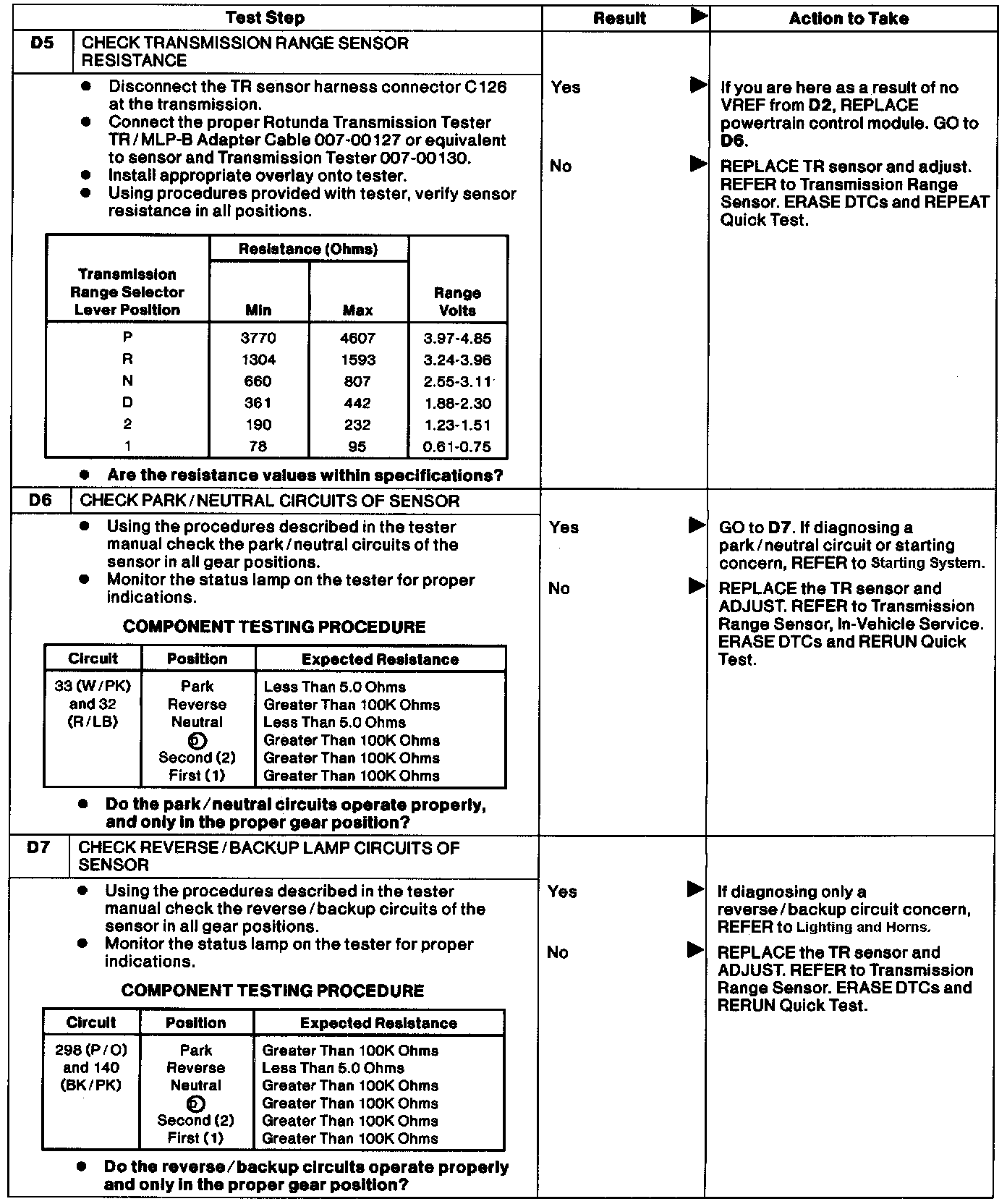

Test D5 - D7:
