Manual Windows

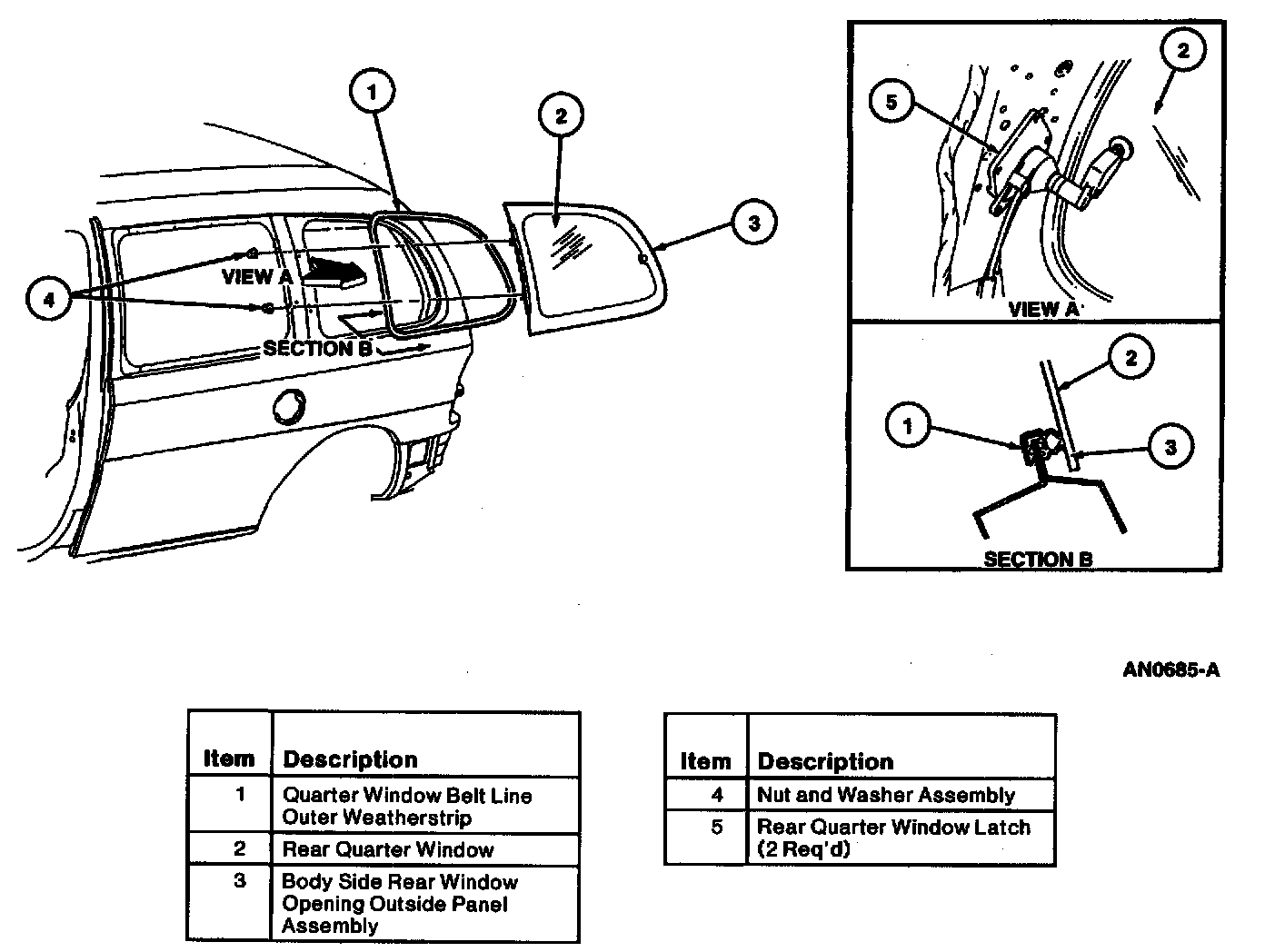

REMOVAL
1. Remove the rear quarter trim.
2. Open the rear quarter window. Remove the rear quarter window latch-to-glass pin.







3. Remove the two rear quarter window hinge nuts and the rear quarter window.

CAUTION: Support the rear quarter window before removing the two rear quarter window hinge nuts. If the window is not supported, it may fall and break or cause damage to the vehicle.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Adjust the rear quarter window.
3. Tighten the two rear quarter window hinge nuts to 10-14 Nm (89-123 Lb-In).
