Manual

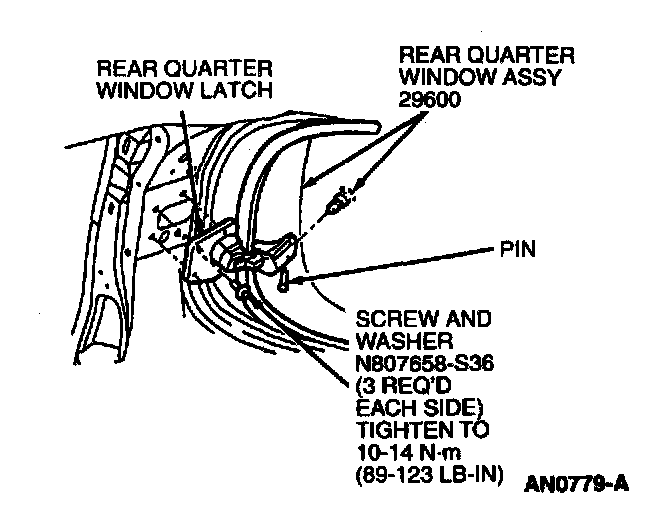

REMOVAL
1. Remove the rear quarter window trim.
2. Remove the four rear quarter window latch retaining screws.
3. Swing the latch towards the front of the vehicle to access the rear quarter window latch-to-glass pin.
4. Remove the rear quarter window latch-to-glass pin and the rear quarter window latch.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten the three rear quarter window latch retaining screws to 10-14 Nm (89-123 Lb-In).
