Components

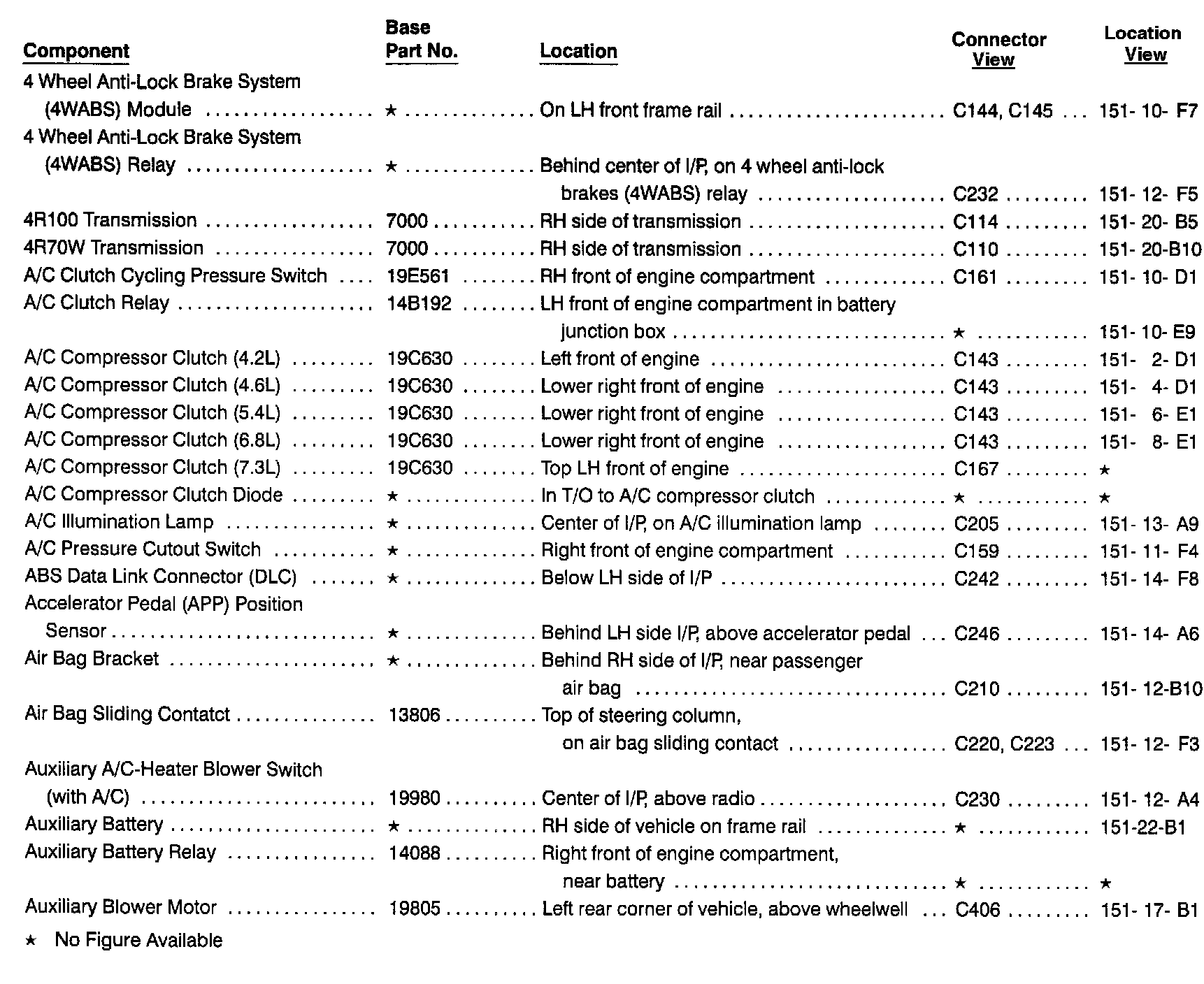

4W-Au:

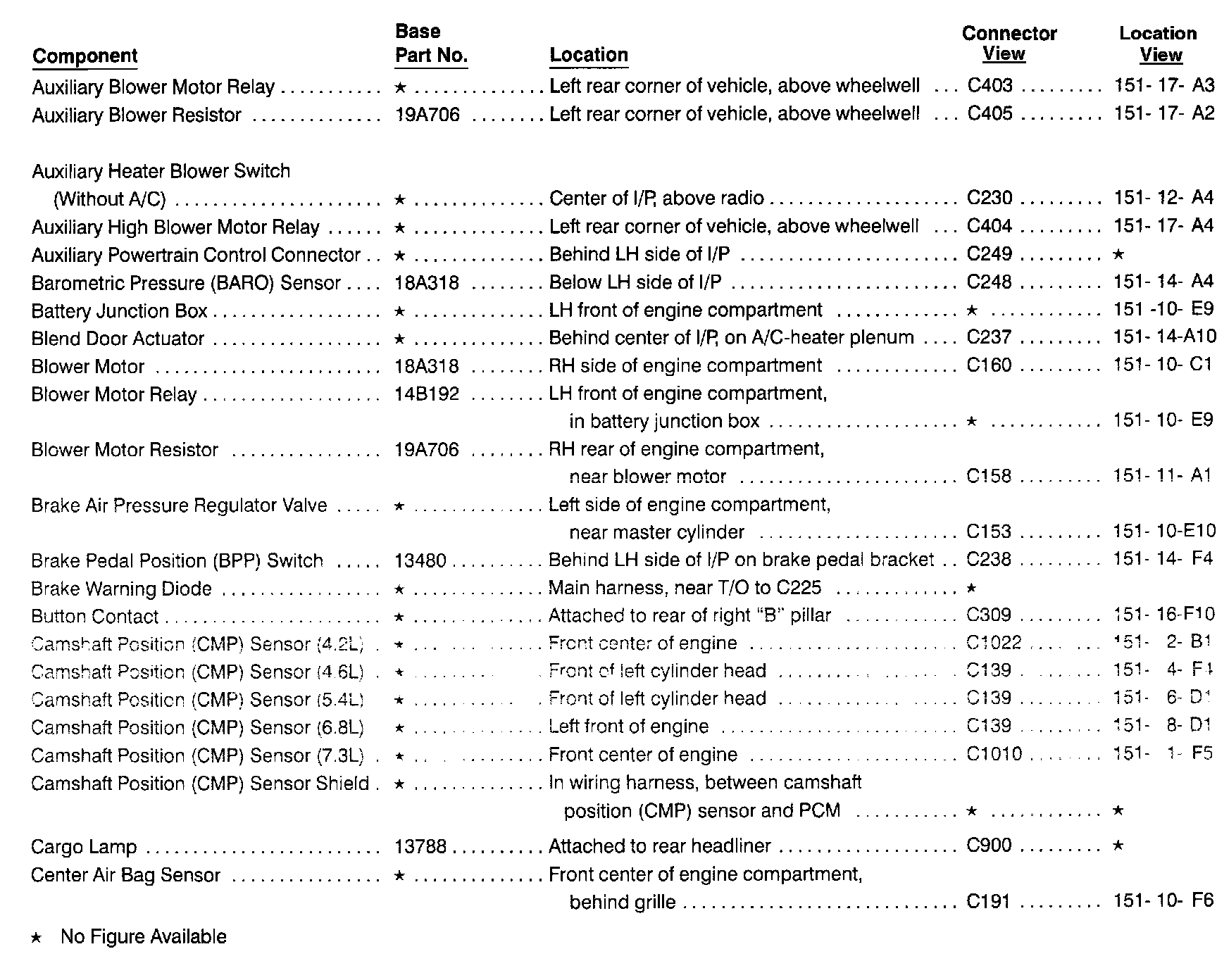

Au-Ce:

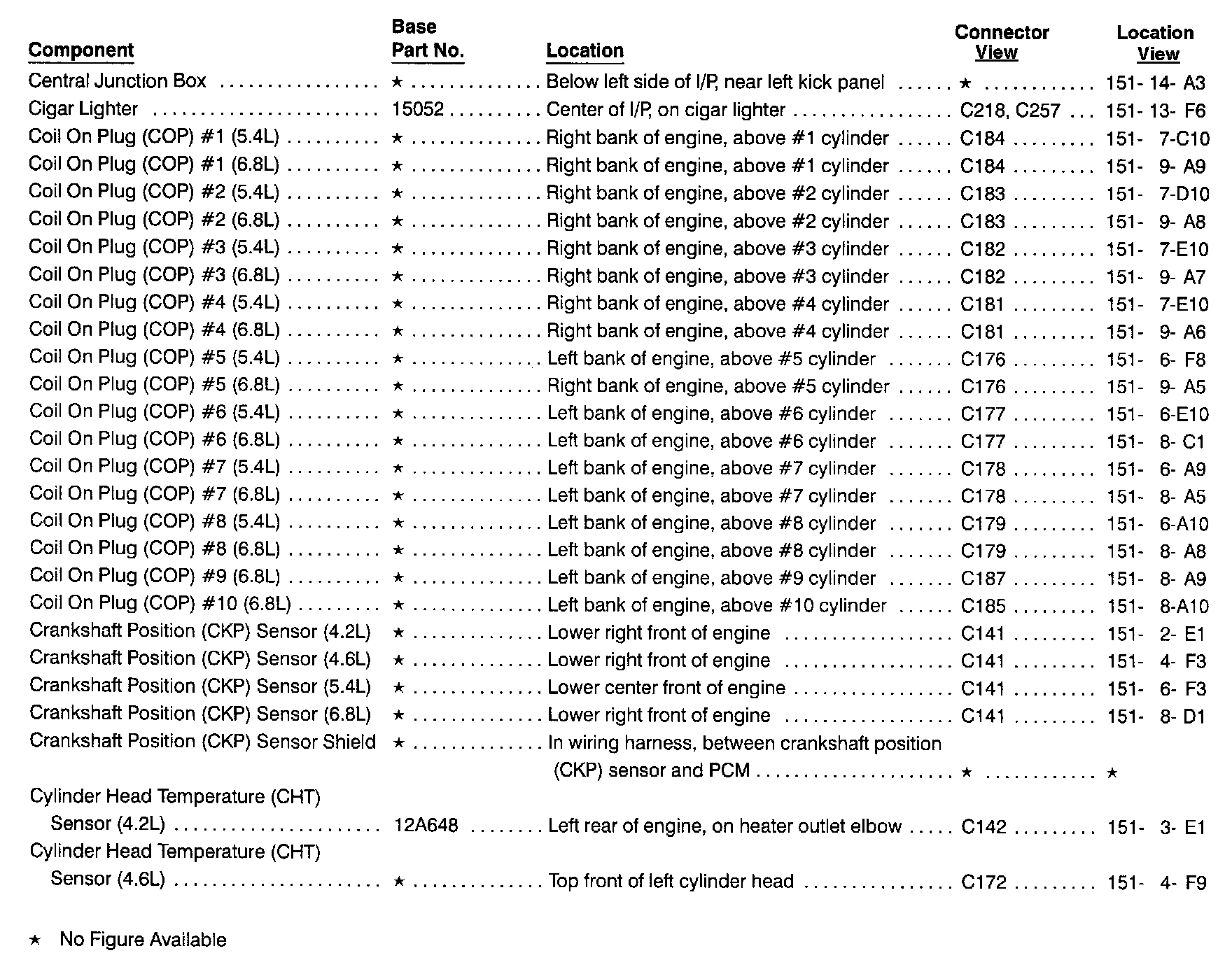

Ce-Cy:

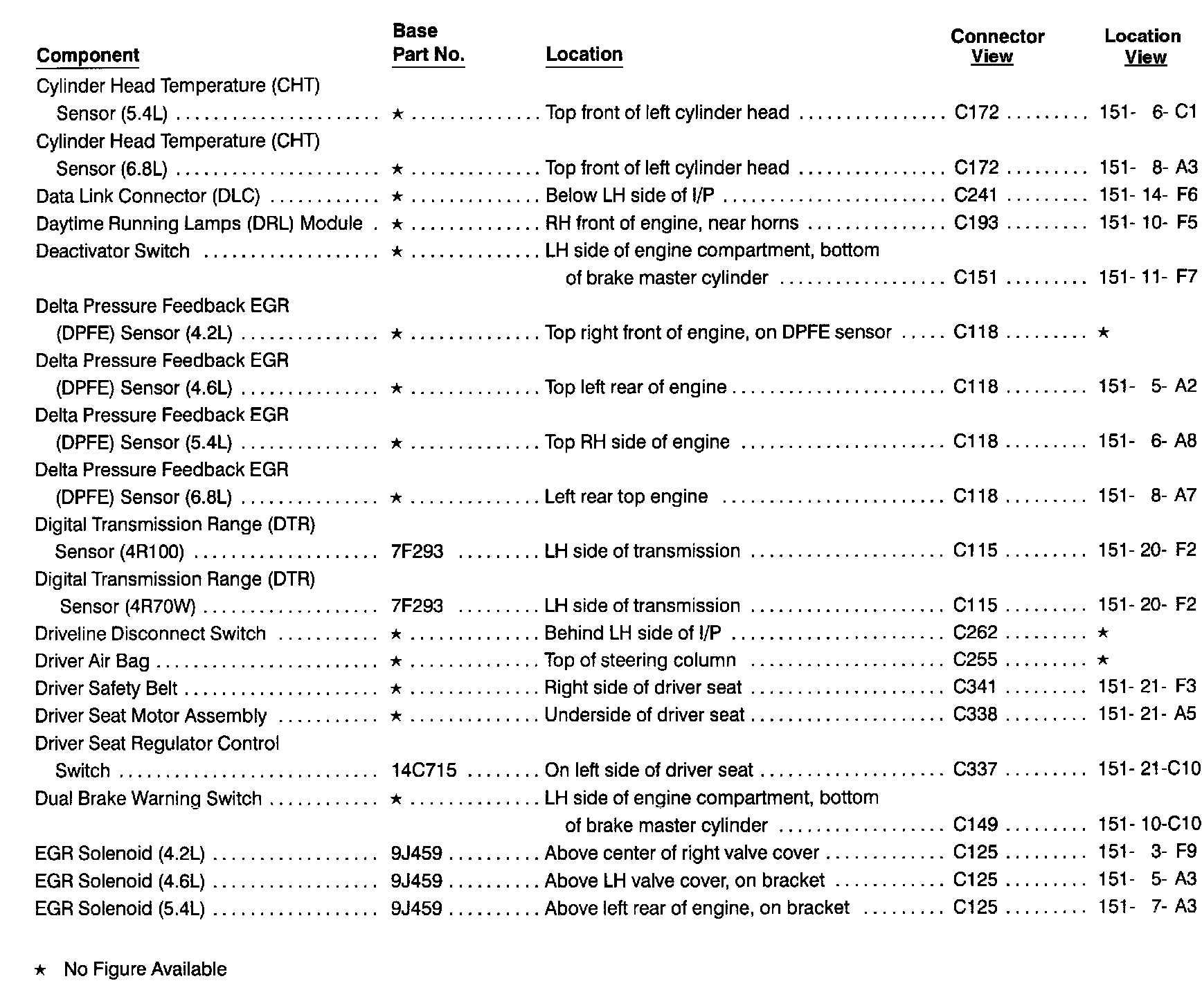

Cy-EGR:






EGR-F:

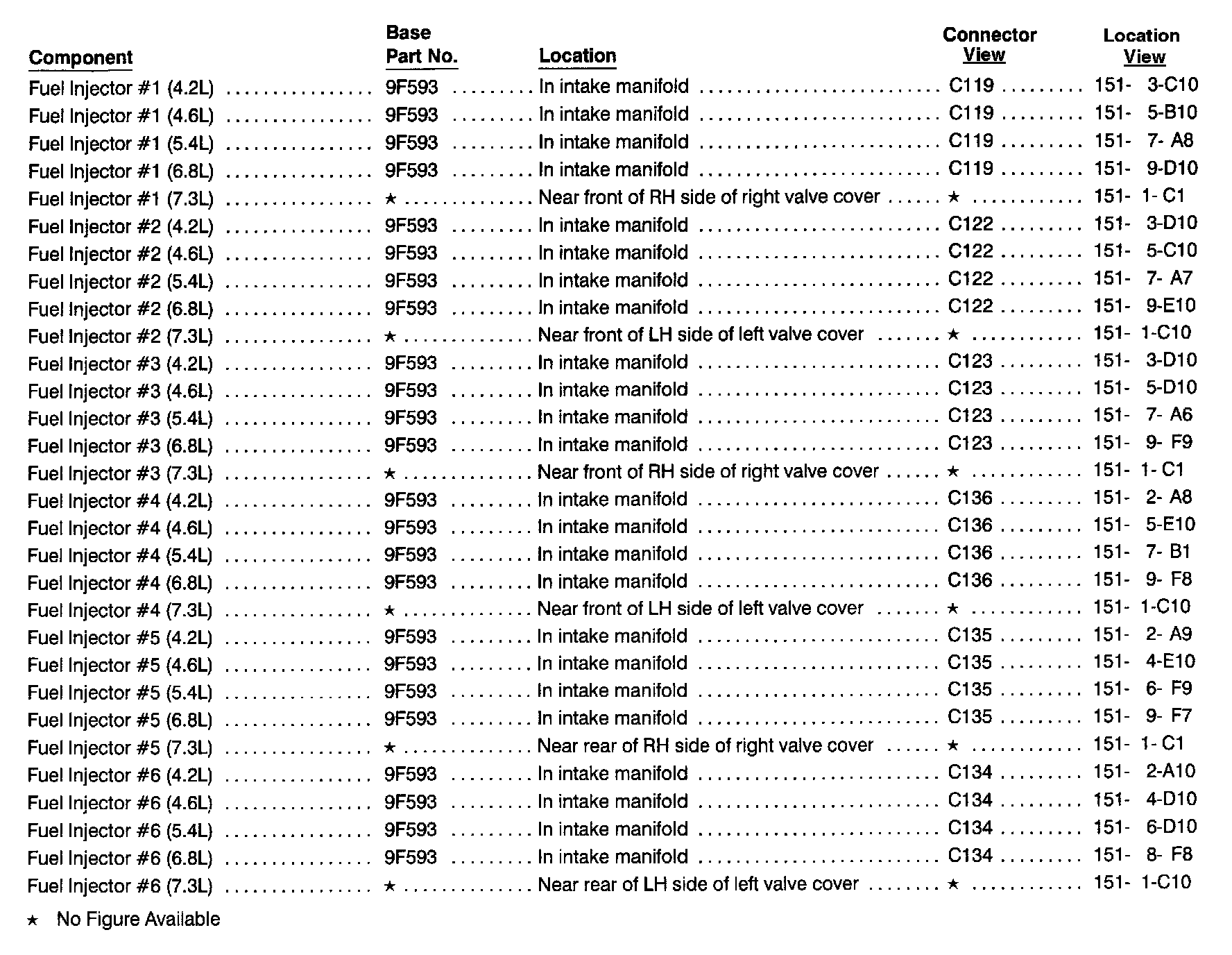

Fu-Fu:






Fu-Fuse:

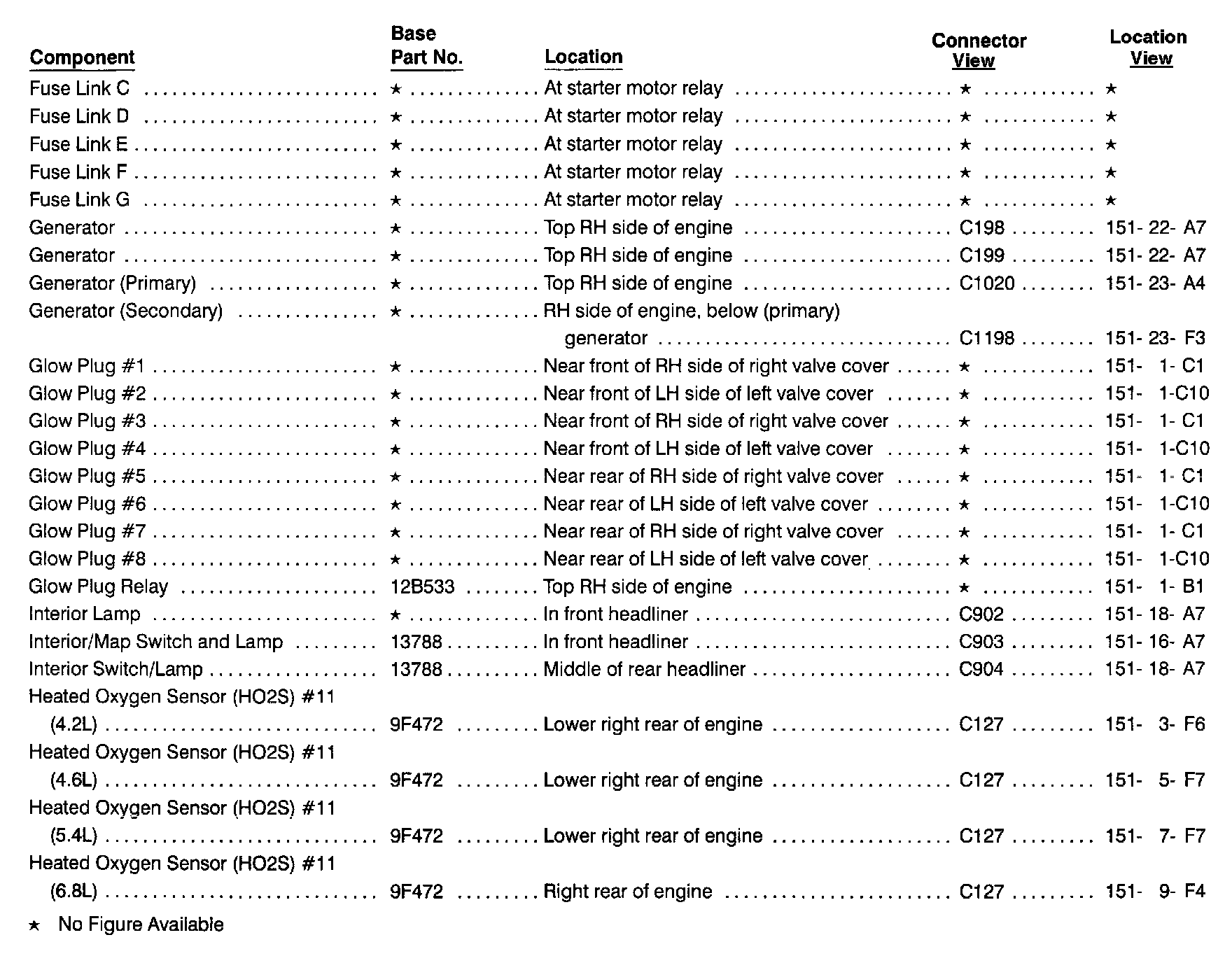

Fuse-H:






H-Ig:

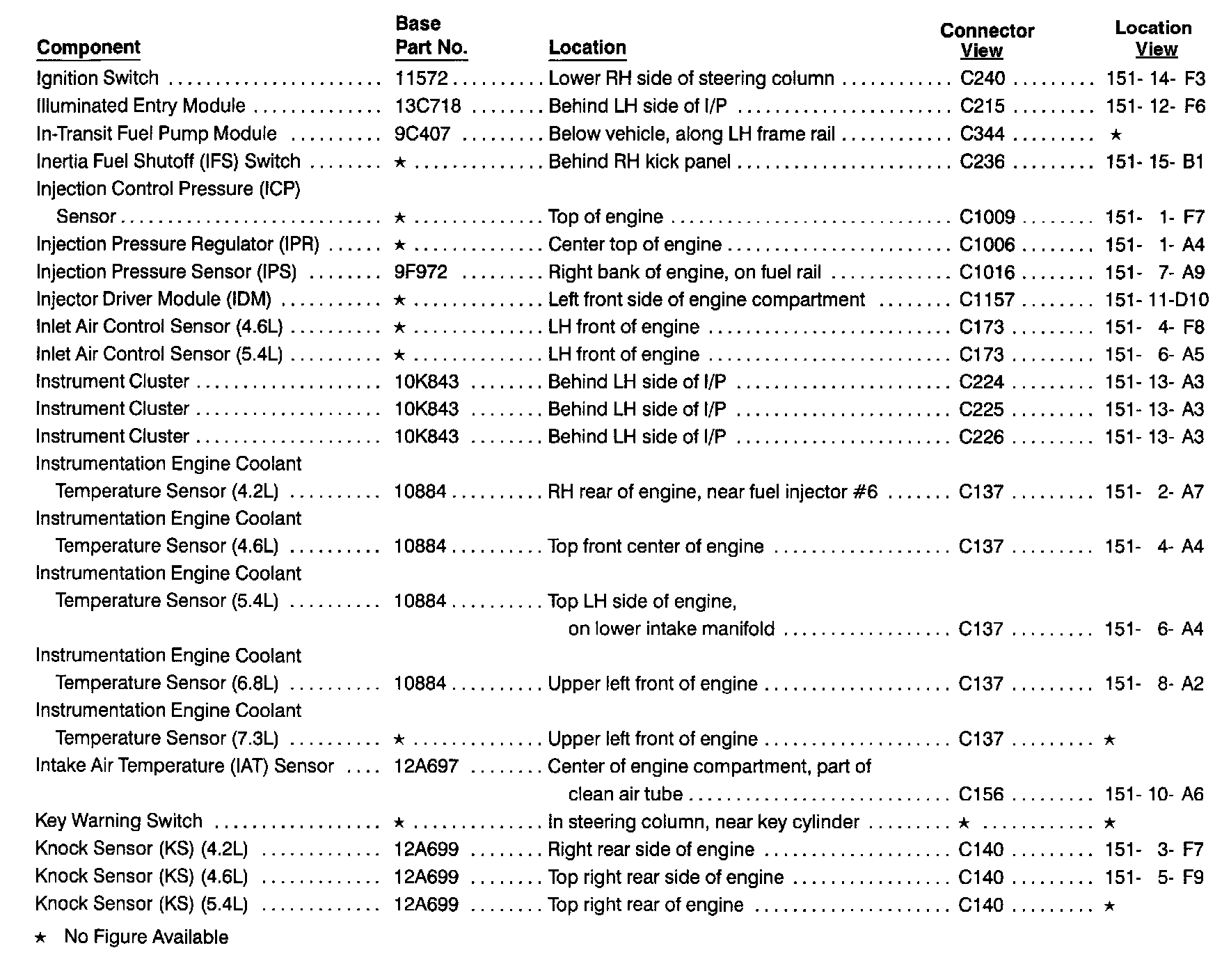

Ig-K:

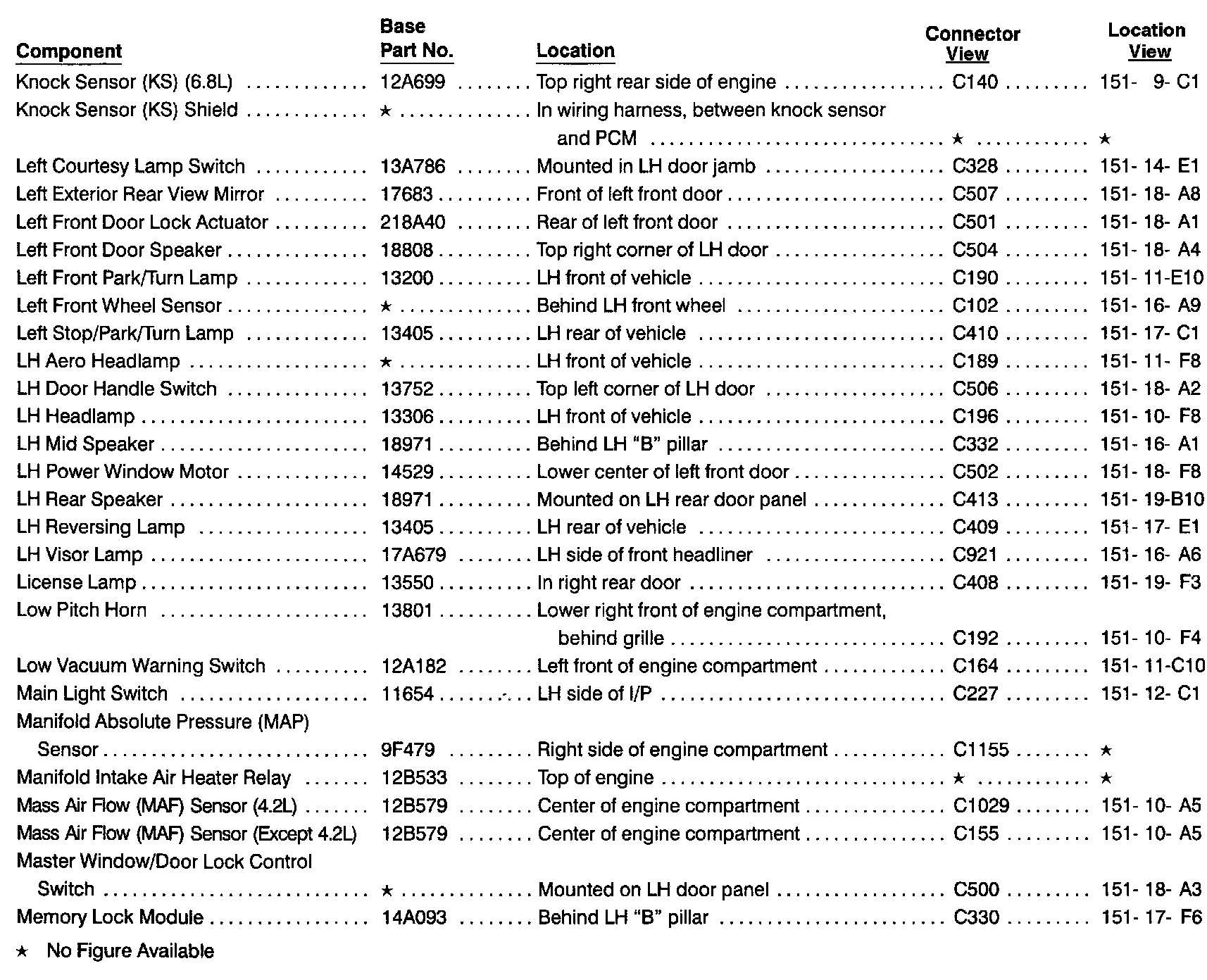

K-M:

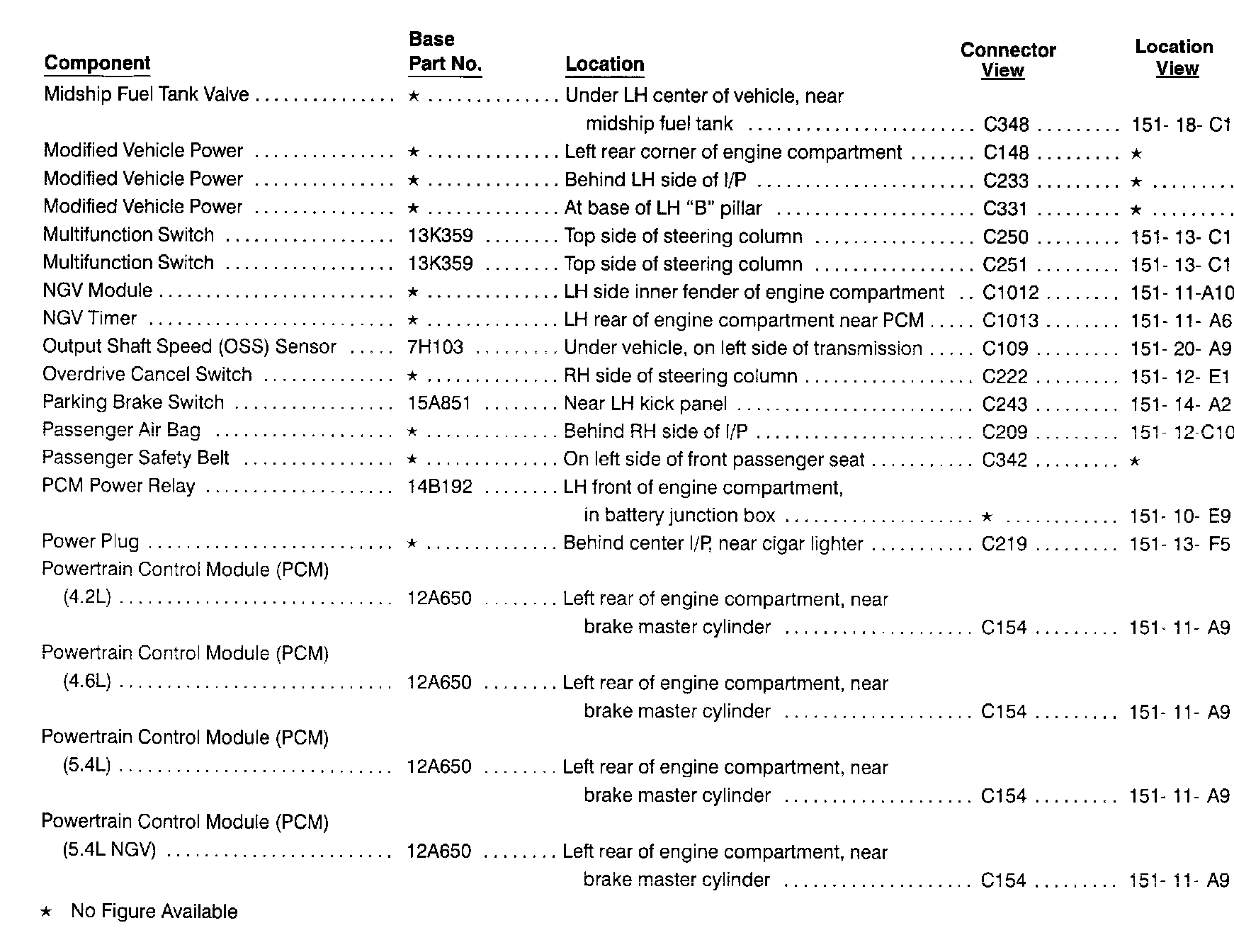

Mi-P:

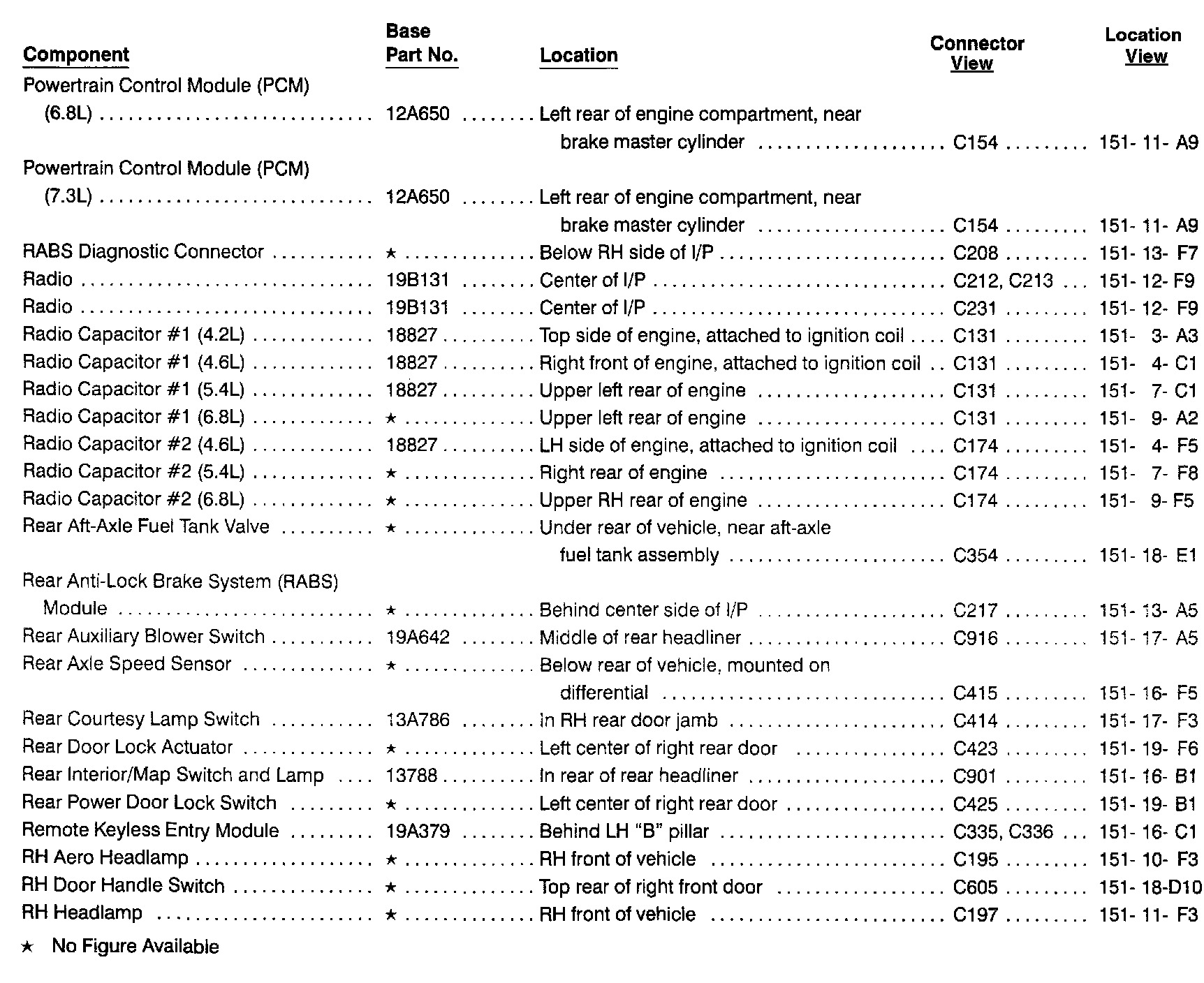

P-RH:

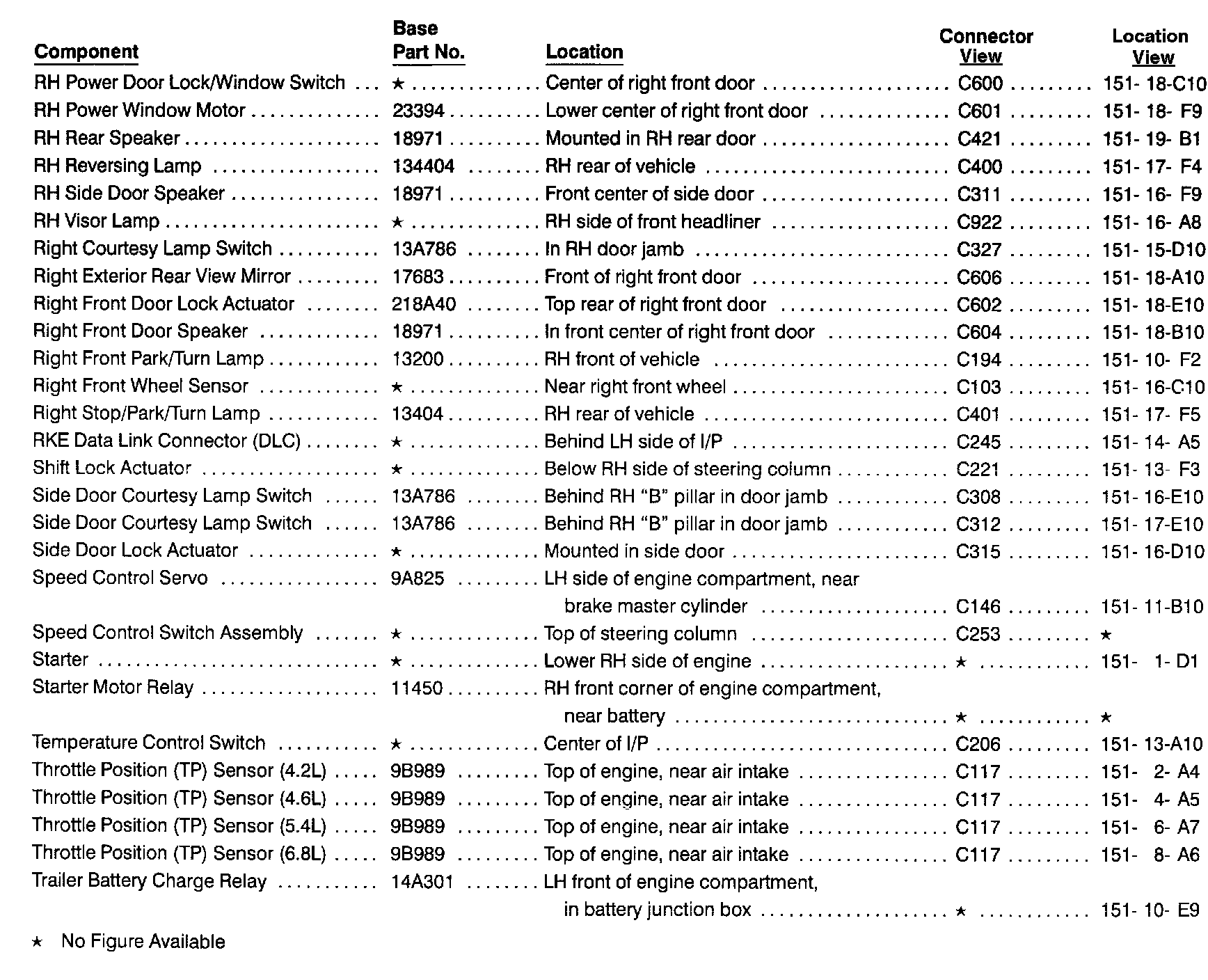

RH-T:






T-W:
