Home >> Ford >> 1999 >> Econoline E150 1/2 Ton V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Drive/Propeller Shaft >> Two-Piece

Two-Piece

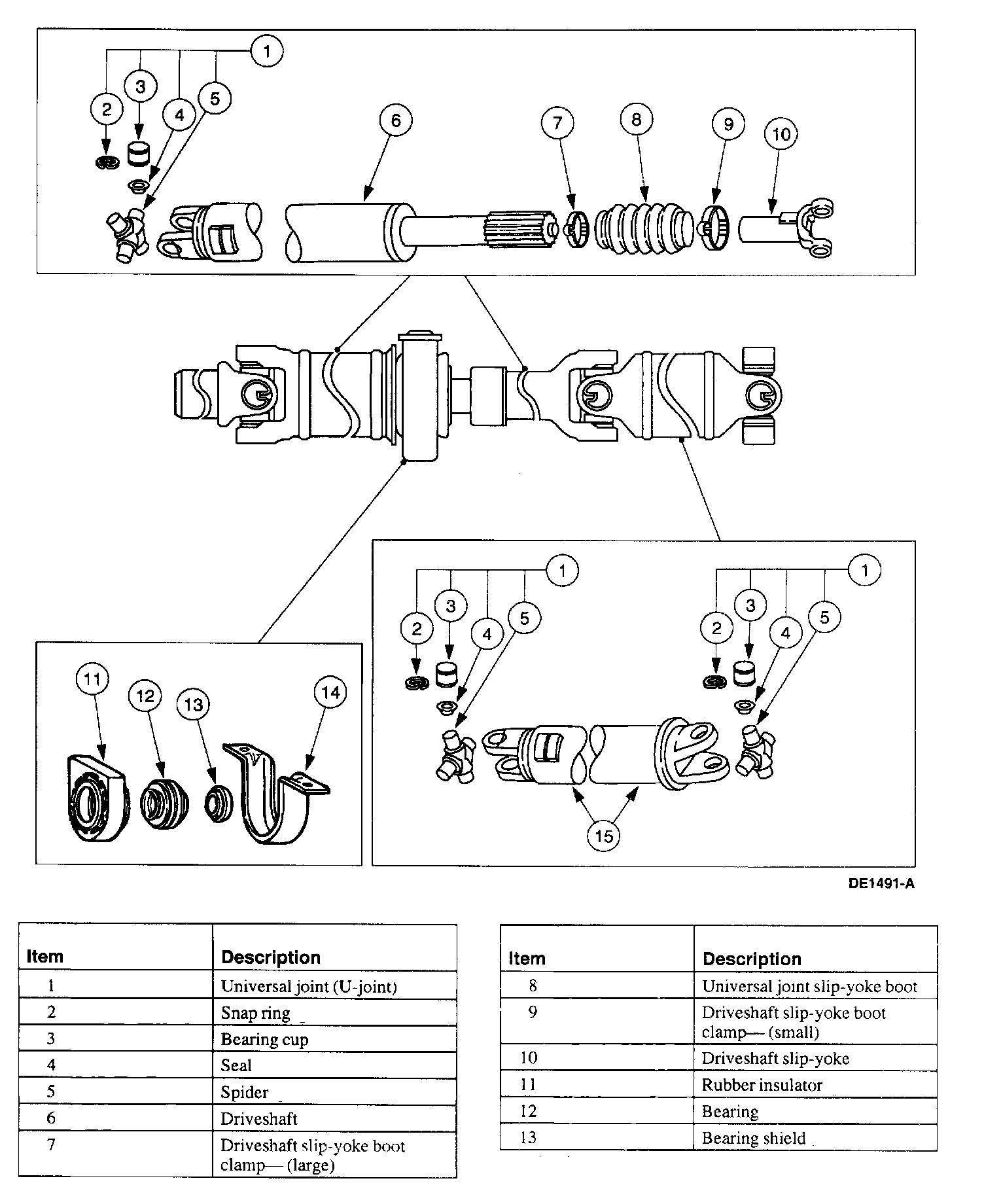

Driveshaft - Rear, Two-Piece - 1 Of 2:

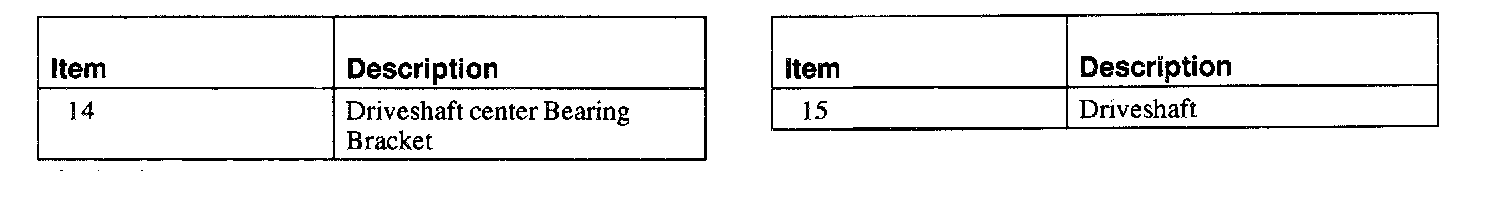

Driveshaft - Rear, Two-Piece - 2 Of 2:
