Crankshaft Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Raise and support the vehicle.

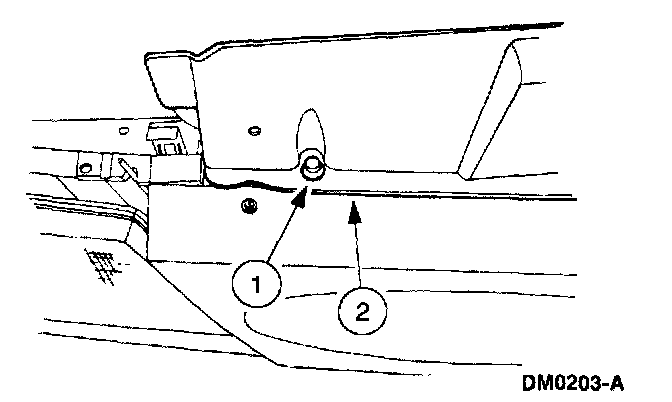

3. Remove the air deflector.
1 Remove the five retaining pins.
2 Remove the air deflector.

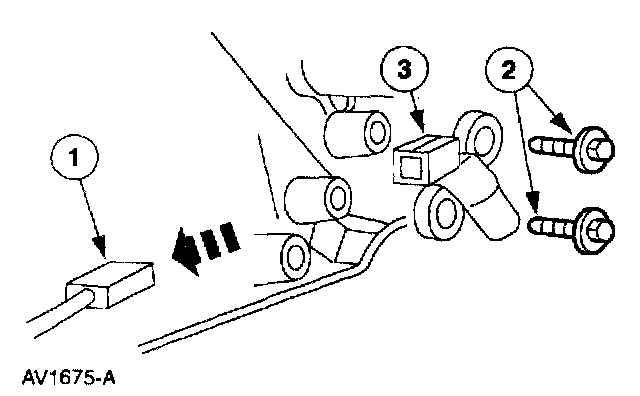

4. Remove Crankshaft Position (CKP) sensor.
1 Disconnect the CKP sensor electrical connector.
2 Remove the bolts.
3 Remove the CKP sensor.

INSTALLATION







1. To install, reverse the removal procedure.
