Spark Plug: Description and Operation

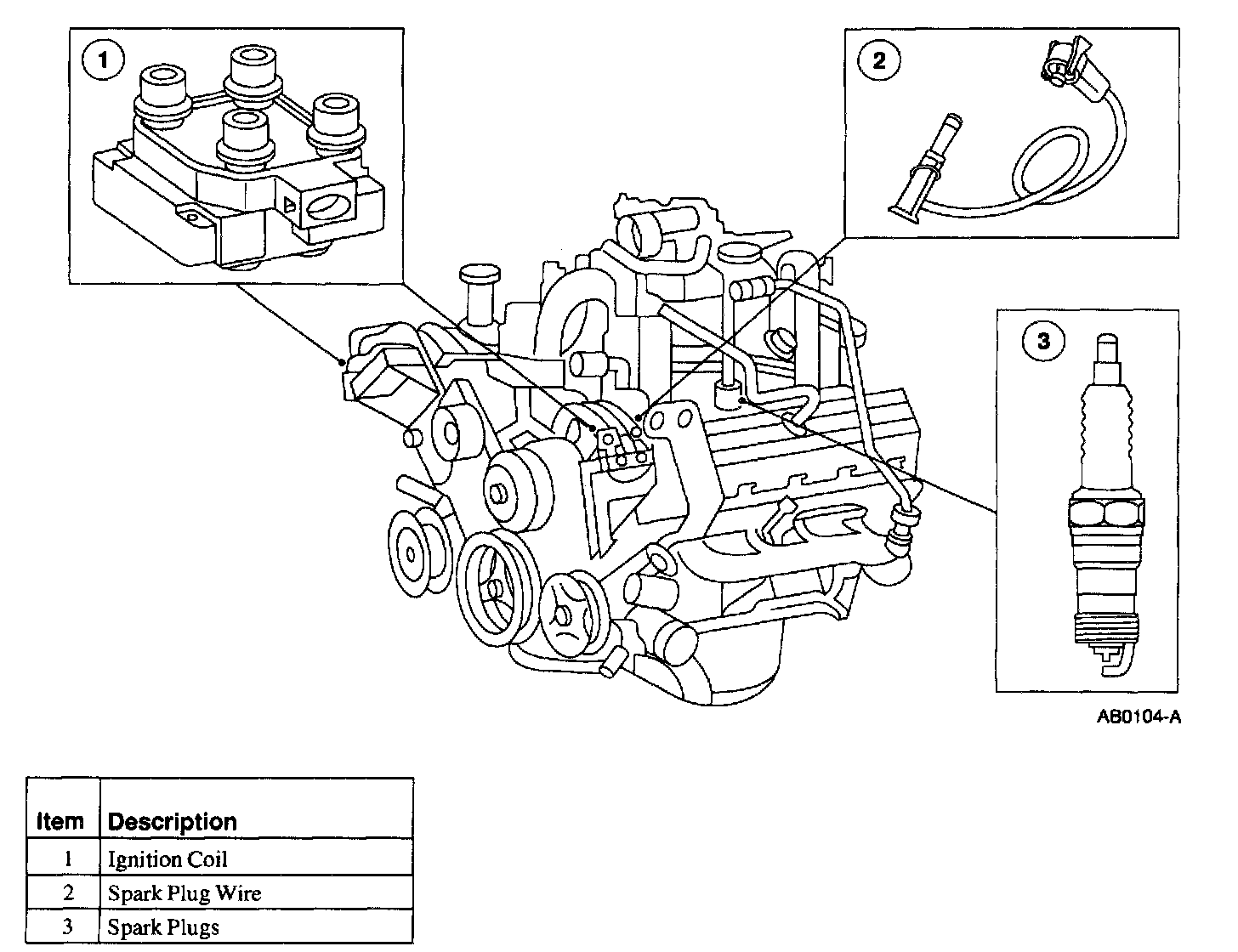

The spark plug wires carry high voltage pulses from the ignition coil to the spark plug.

The spark plugs have a platinum-enhanced active electrode for long life.
The active electrode is different for the LH and RH spark plugs.
^ The RH side (Cylinders 1,2,3) spark plugs are AWSF-32PG.
^ The LH side (Cylinders 4,5,6) spark plugs are AWSF-32P.

Replacement spark plugs have a platinum-enhanced electrode and can be used to replace either a RH spark plug or a LH spark plug.
