Test B: Signal Door Lock Inoperative - From All Lock Switches

B1 - B3:






B4:






B5:






B6 - B7:

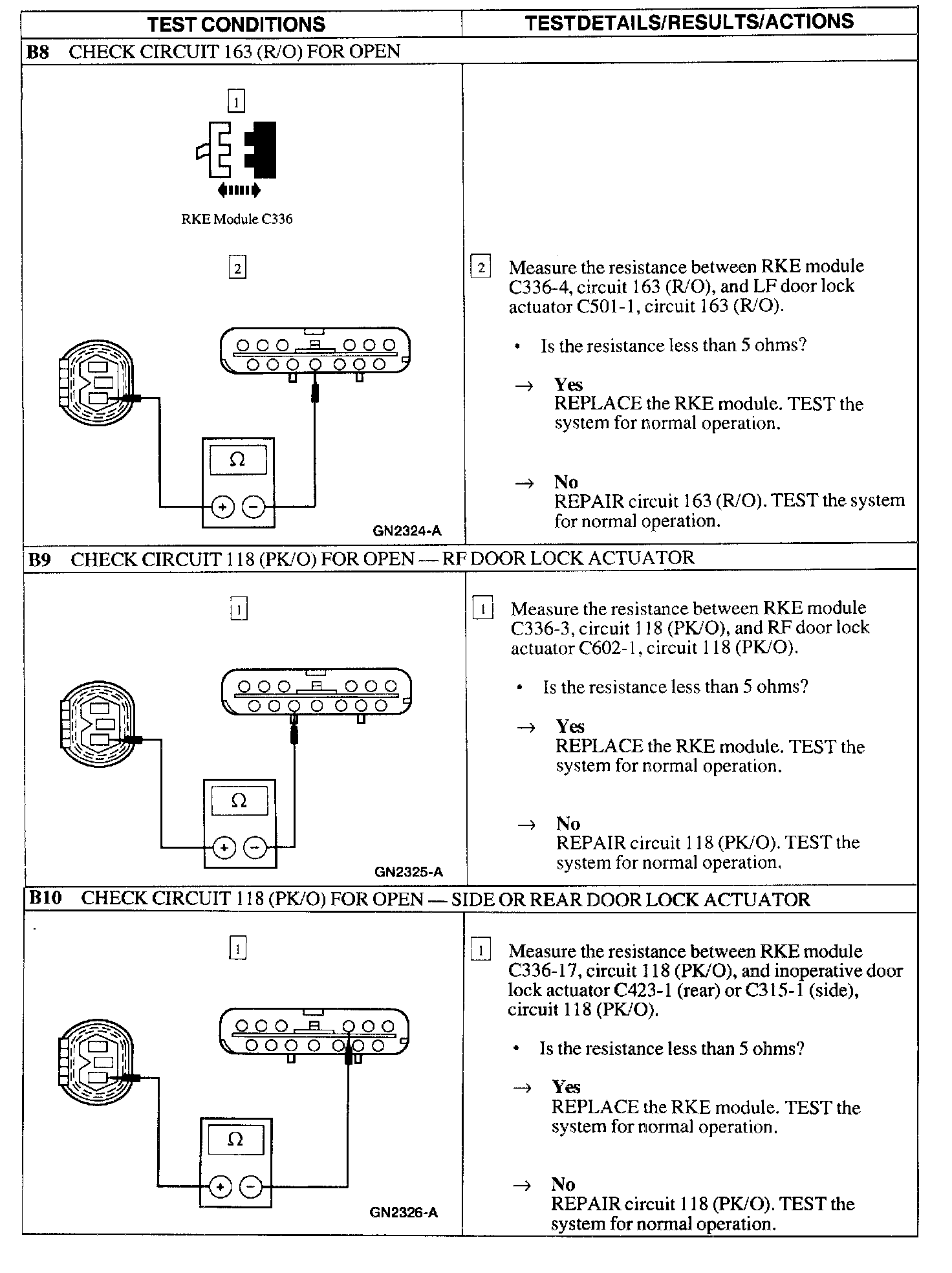

B8 - B10:
