A: Shift Solenoids

A1 - A2:

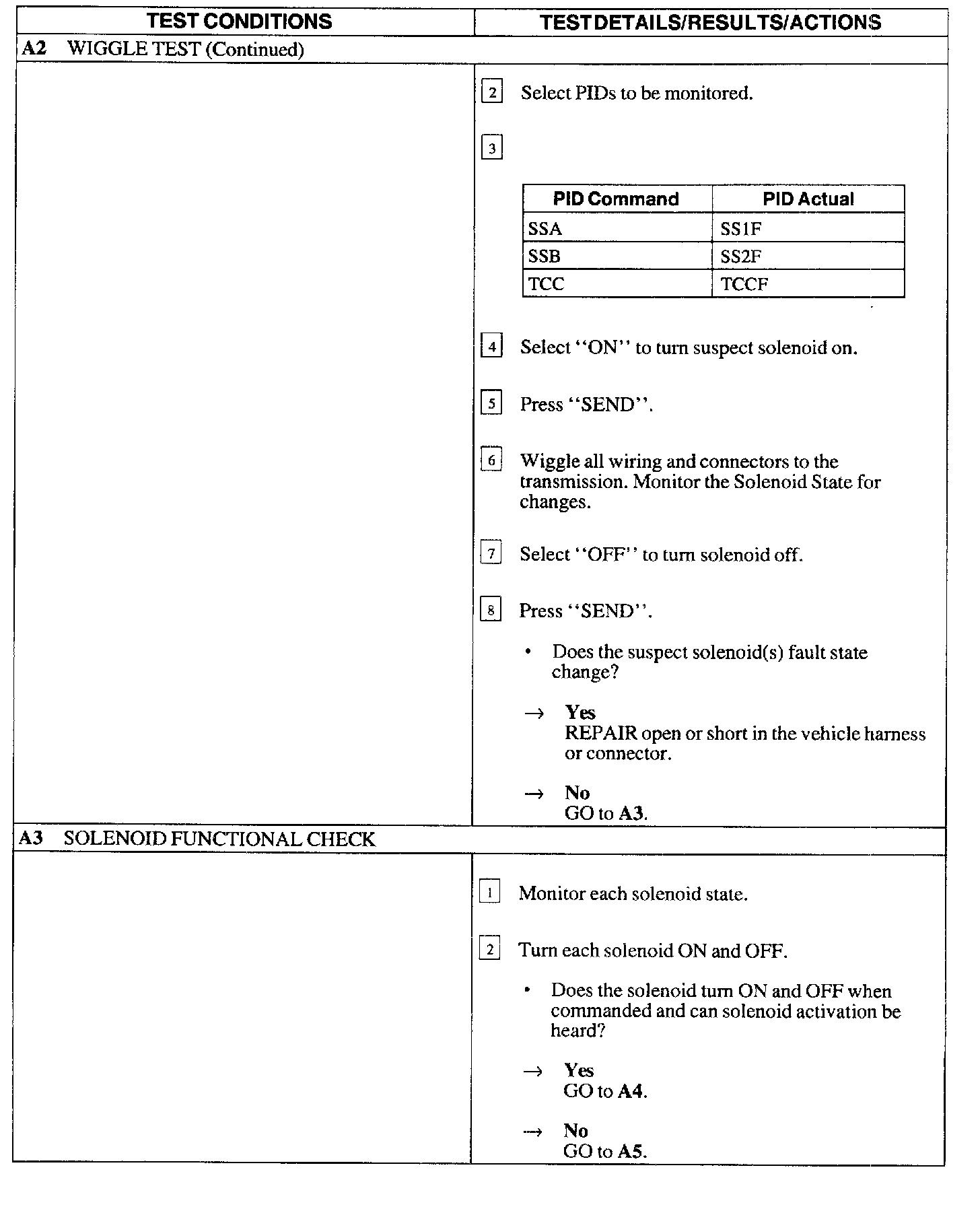

A2 - A3:

A4 - A5:

A6:

A6 - A7:

A7:

A8:

PINPOINT TEST A: SHIFT AND TORQUE CONVERTER CLUTCH SOLENOIDS

NOTE: Read and record all DTCs. All Digital TR Sensor and VSS DTCs must be repaired before entering Output State Control (OSC).

NOTE: Refer to the Transmission Internal Harness Connector illustration.

NOTE: Refer to the Transmission Vehicle Harness Connector illustration.
