Home
>>
Ford
>>
1999
>>
Econoline E250 3/4 Ton V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

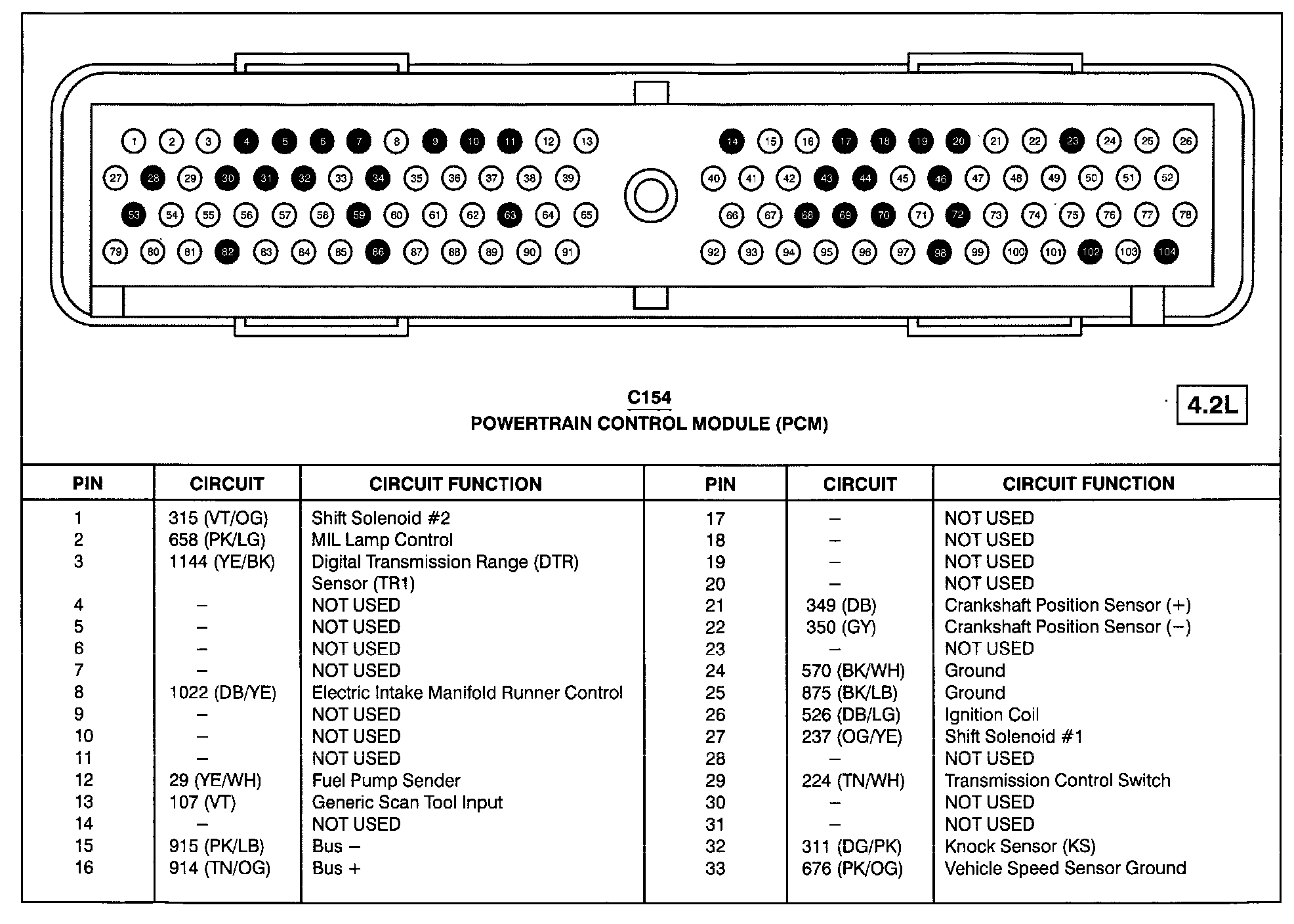

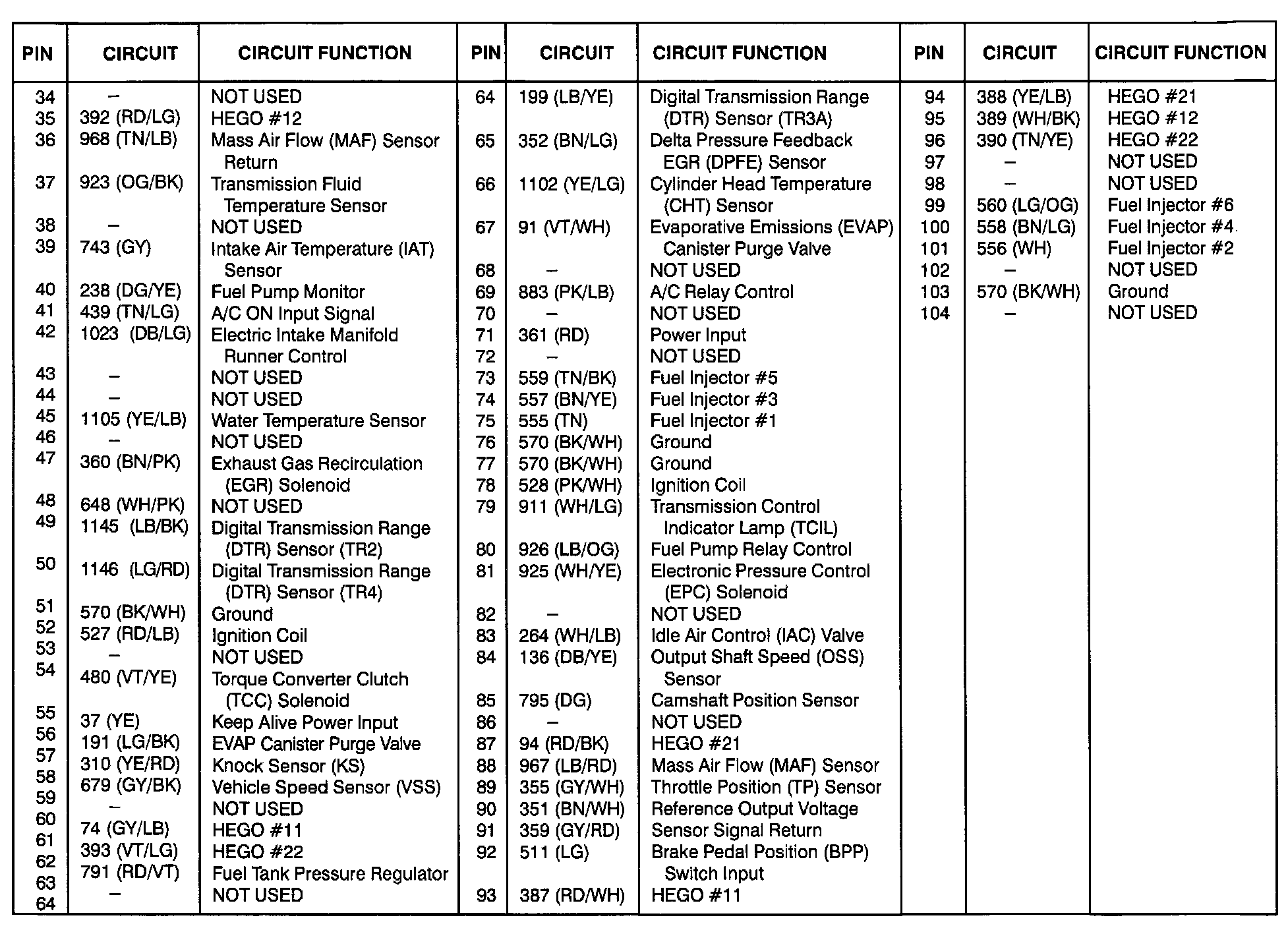

Engine Control Module
Engine Control Module
Diagram 24-12:
