Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1999
>>
Econoline E250 3/4 Ton V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle
1 Of 6:
2 Of 6:
3 Of 6:
4 Of 6:
5 Of 6:
6 Of 6:

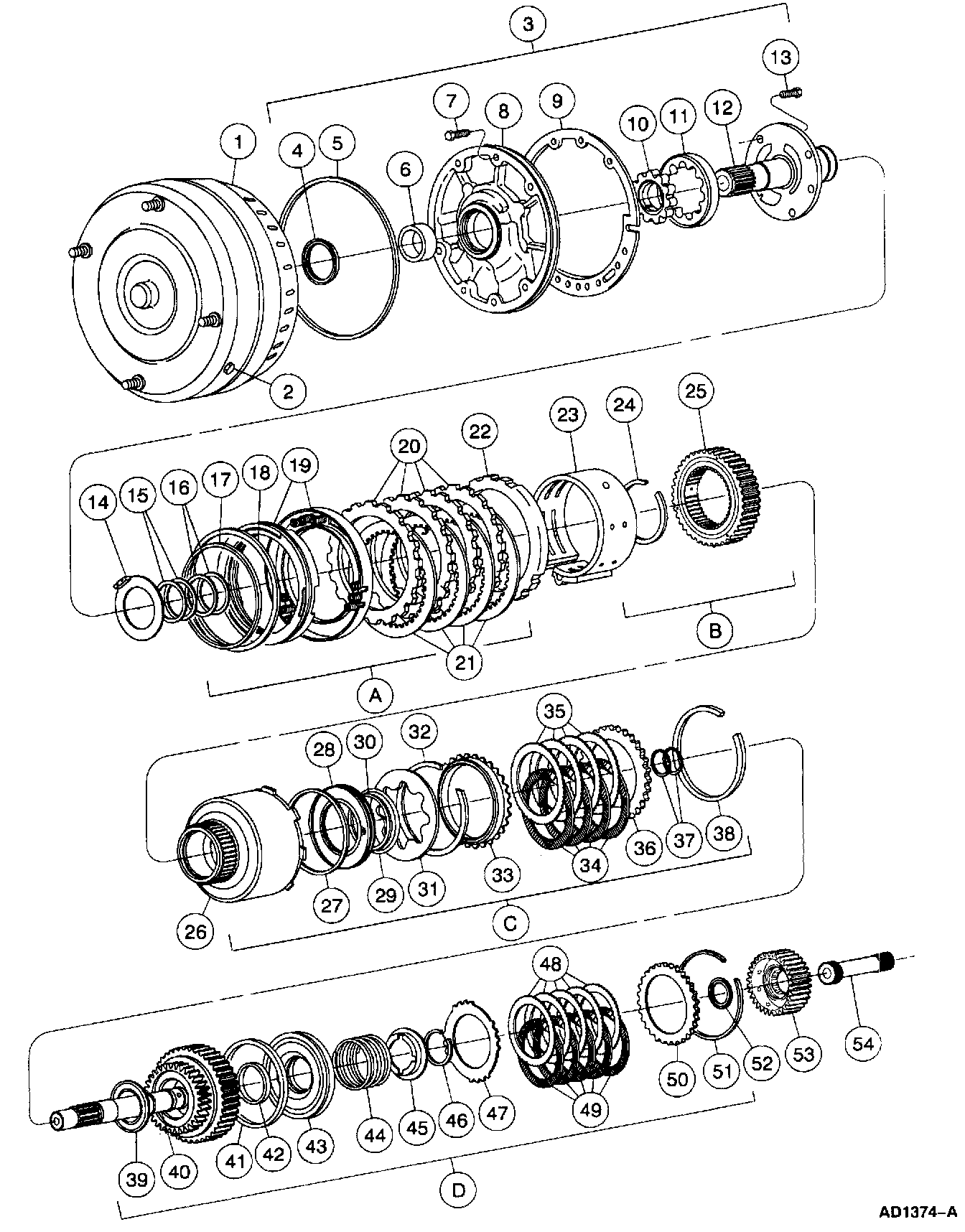

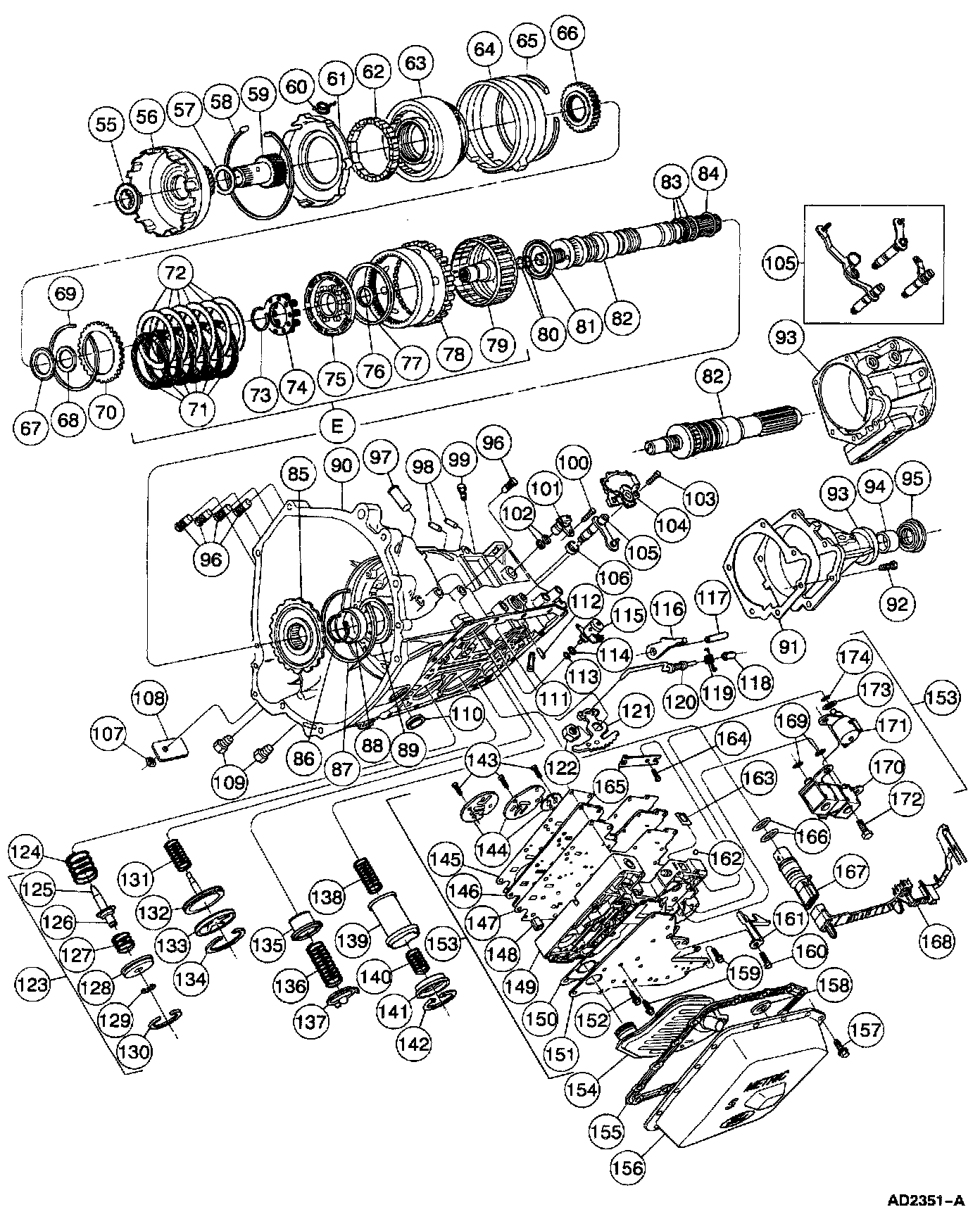

4R70W Automatic Transmission
