Climate Control Switches

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the center trim panel.







3. Remove the control assembly.
1 Remove the screws.
2 Remove the control assembly.

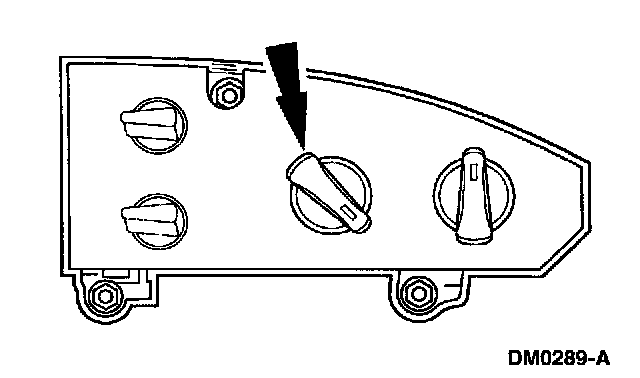

4. Remove the A/C-heater function selector switch knob.







5. Disconnect the vacuum harness connector.







6. Disconnect the A/C-heater function selector switch connector.







7. Remove the A/C-heater function selector switch.
1 Remove the screw.
2 Remove the A/C-heater function selector switch.







8. Remove the temperature control switch knob.







9. Disconnect the temperature control switch connector.







10. Remove the temperature control switch.
1 Remove the screw.
2 Remove the temperature control switch.







11. Remove the heater blower motor switch knob.







12. Disconnect the heater blower motor switch connector.







13. Remove the heater blower motor switch.
1 Remove the screw.
2 Remove the heater blower motor switch.

INSTALLATION
1. Follow the removal procedure in reverse order.
