Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1999
>>
Econoline E350 1 Ton V10-6.8L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

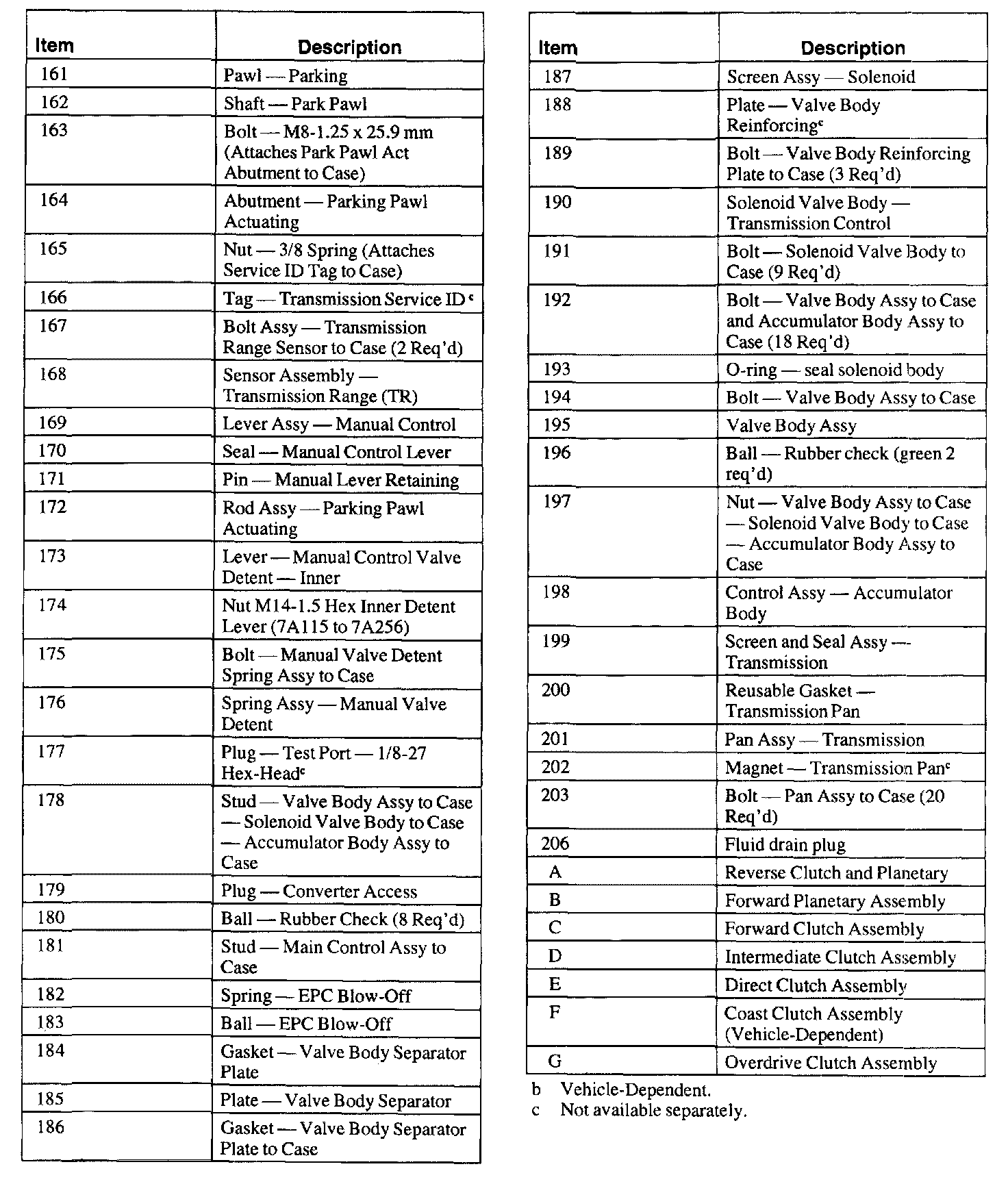

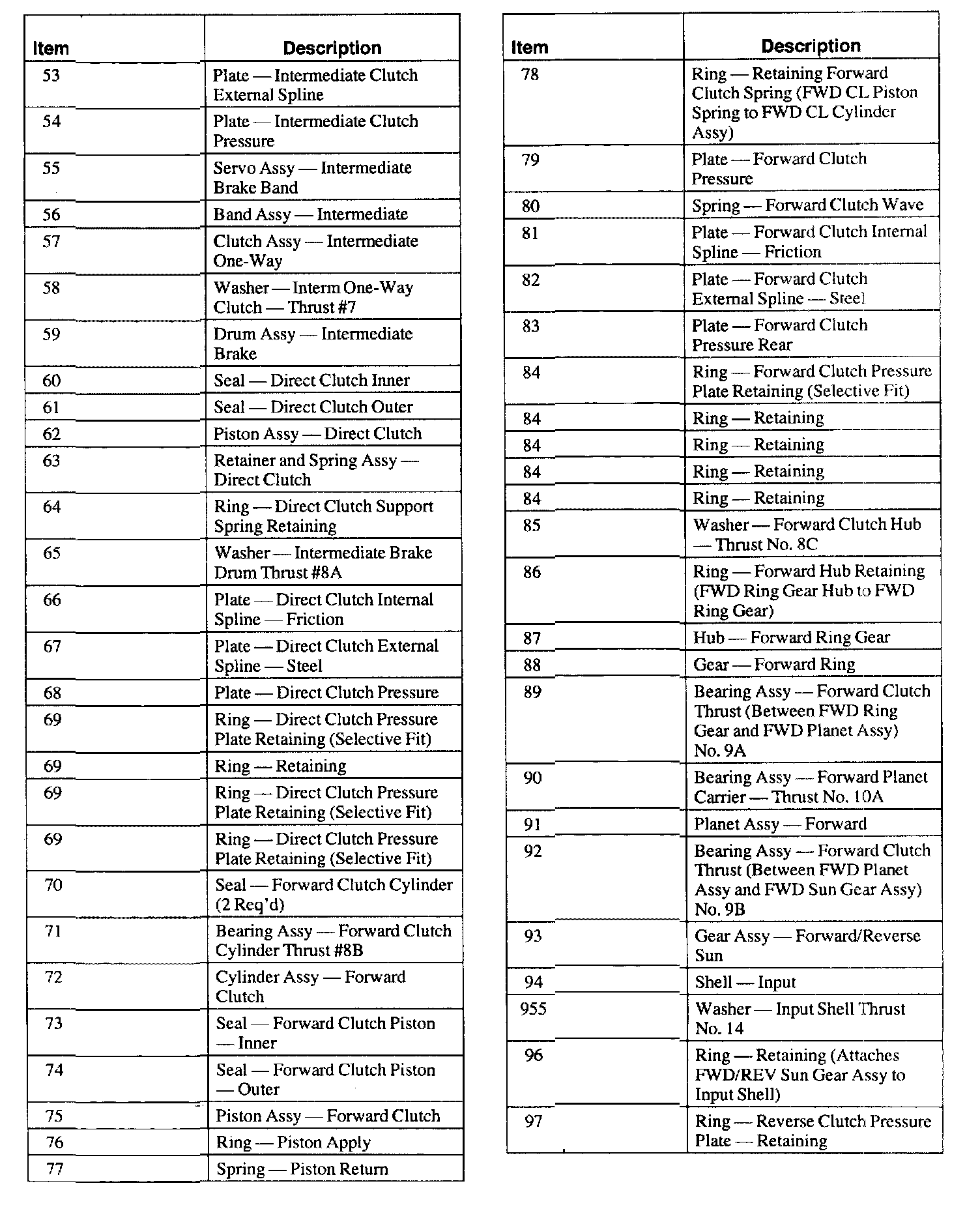

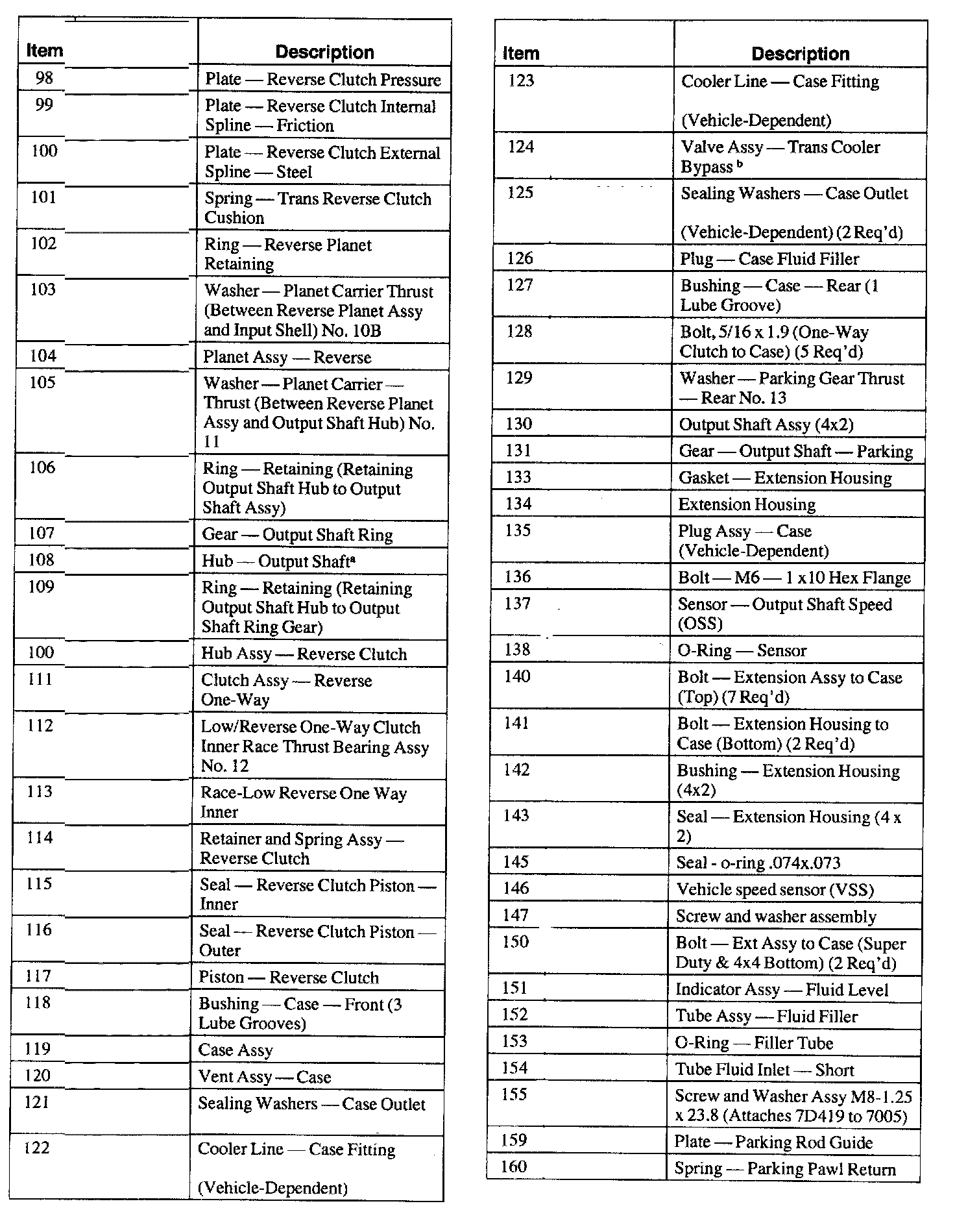

1 Of 7:
2 Of 7:
3 Of 7:
4 Of 7:
5 Of 7:
6 Of 7:
7 Of 7:

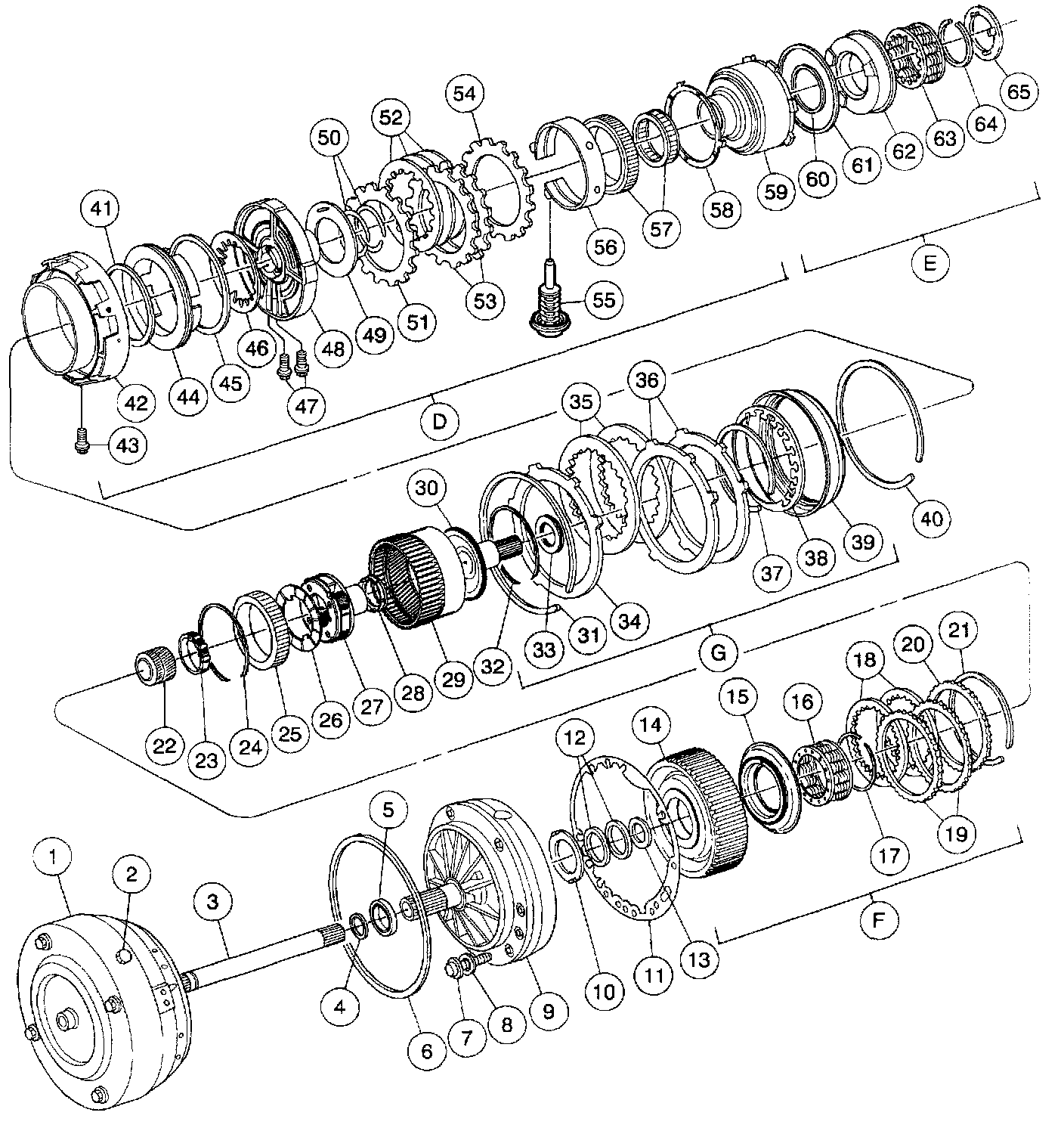

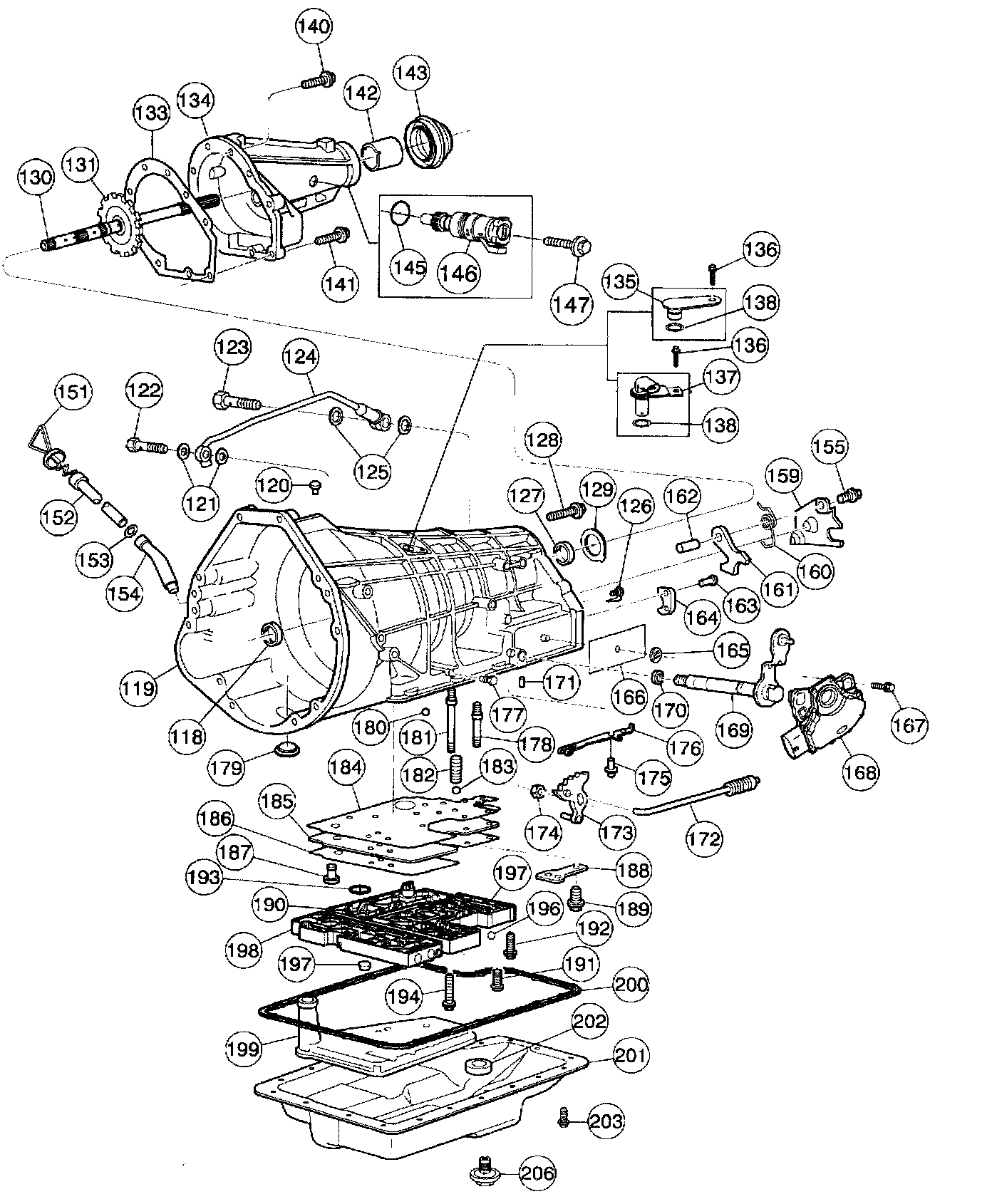

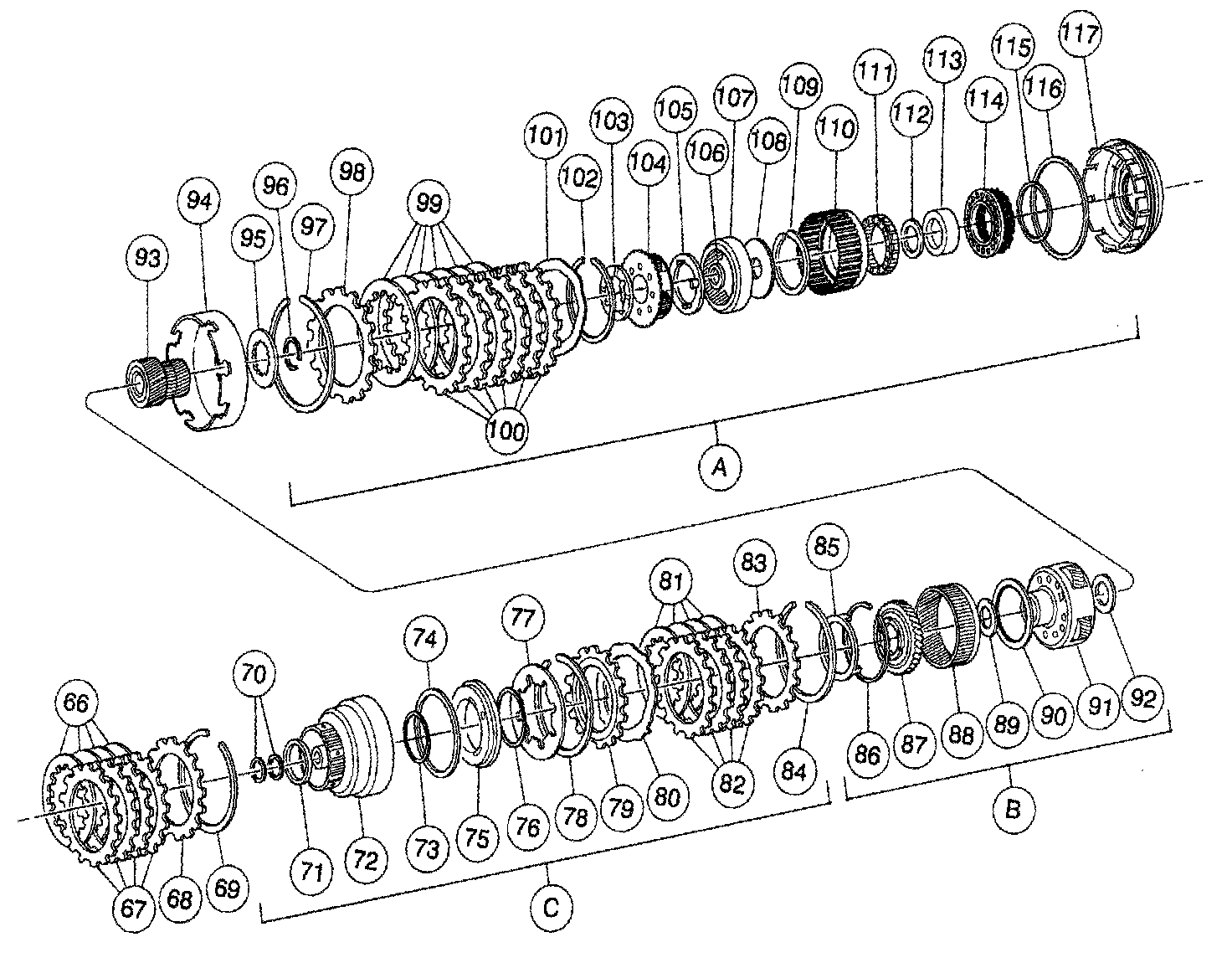

Transmission, Disassembled View
