Engine









Module View

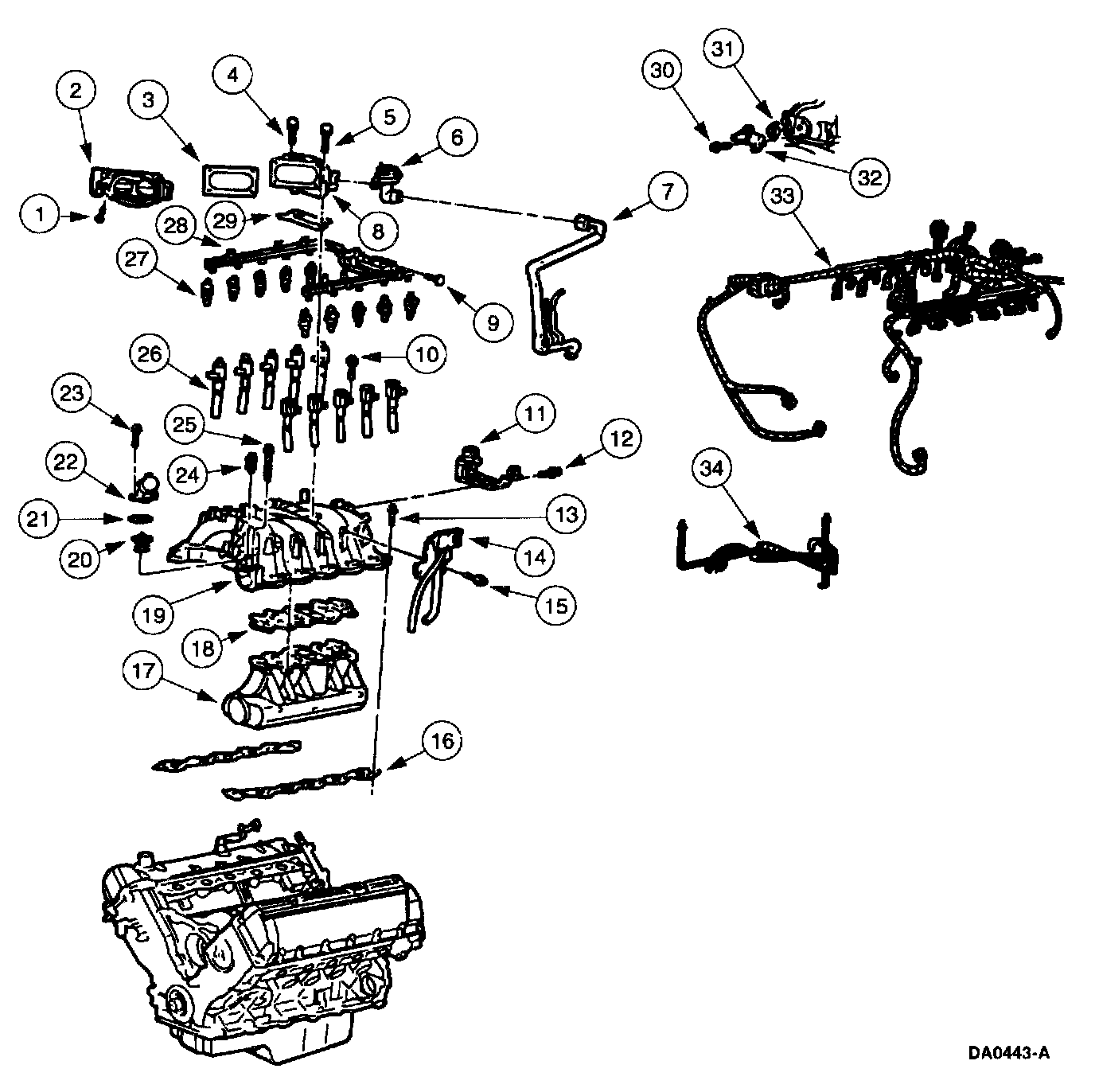

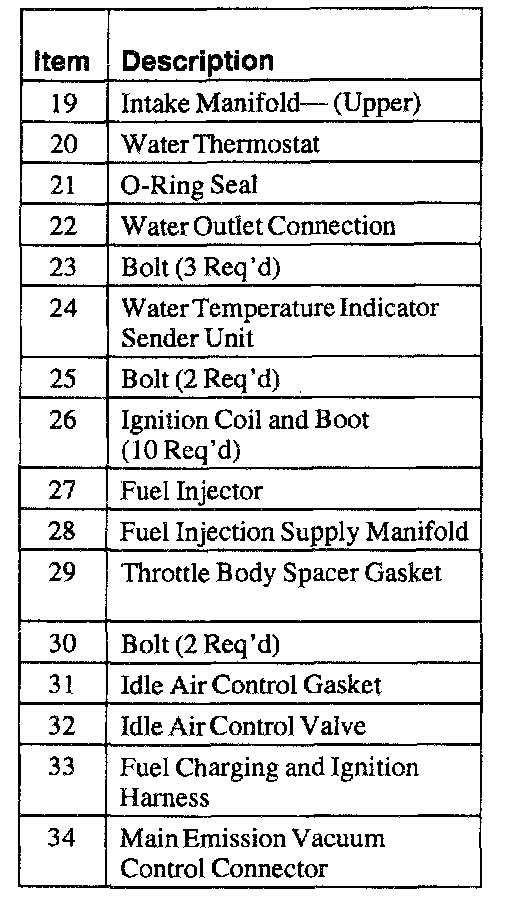

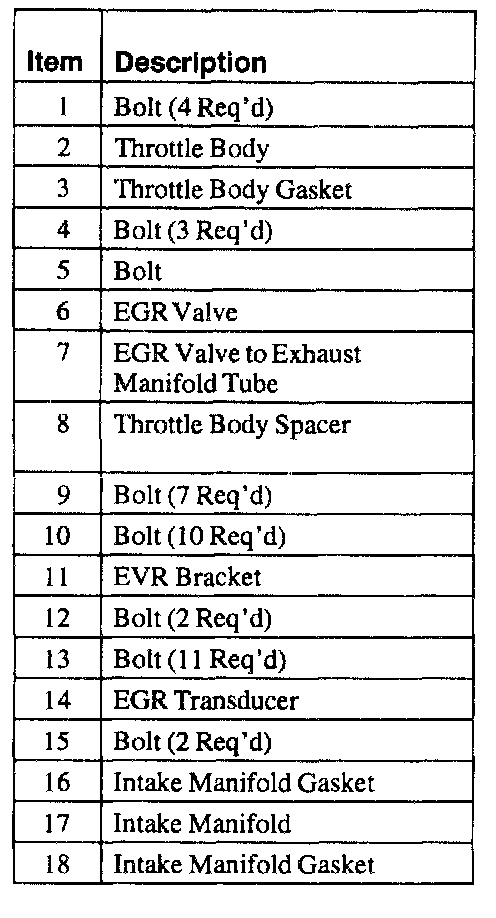

Engine Intake Components

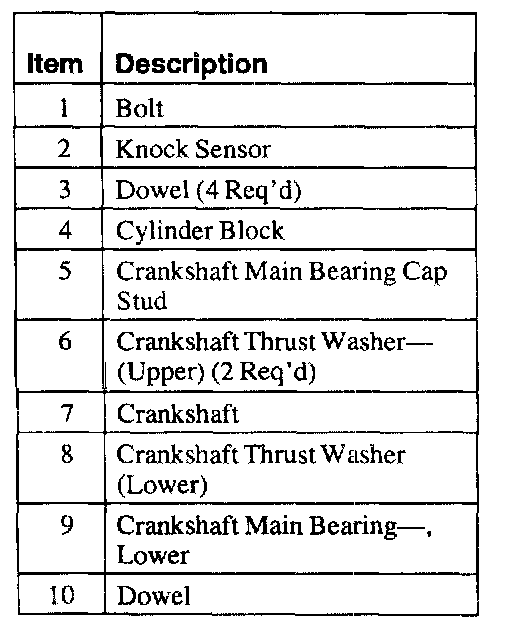

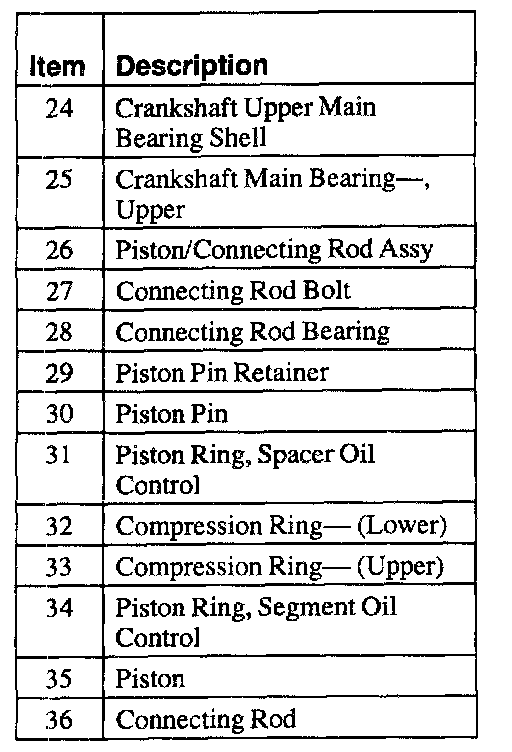

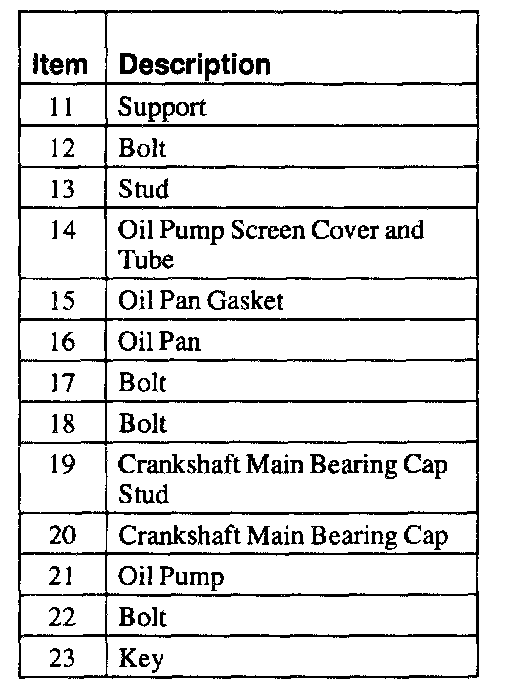

Low End Components

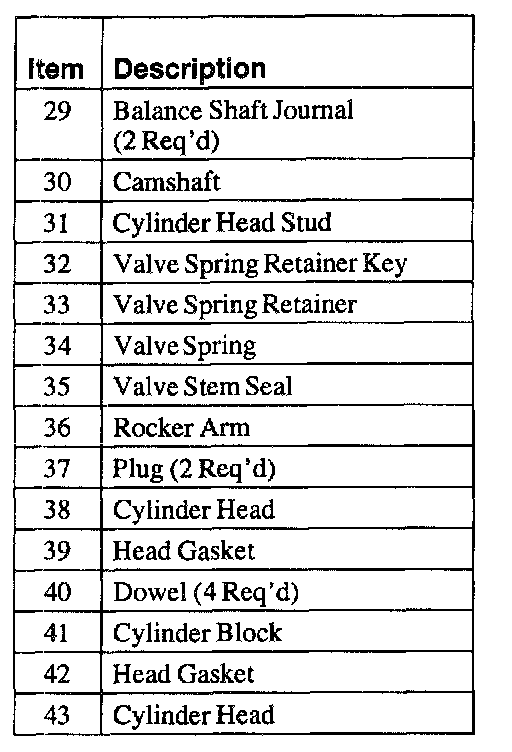

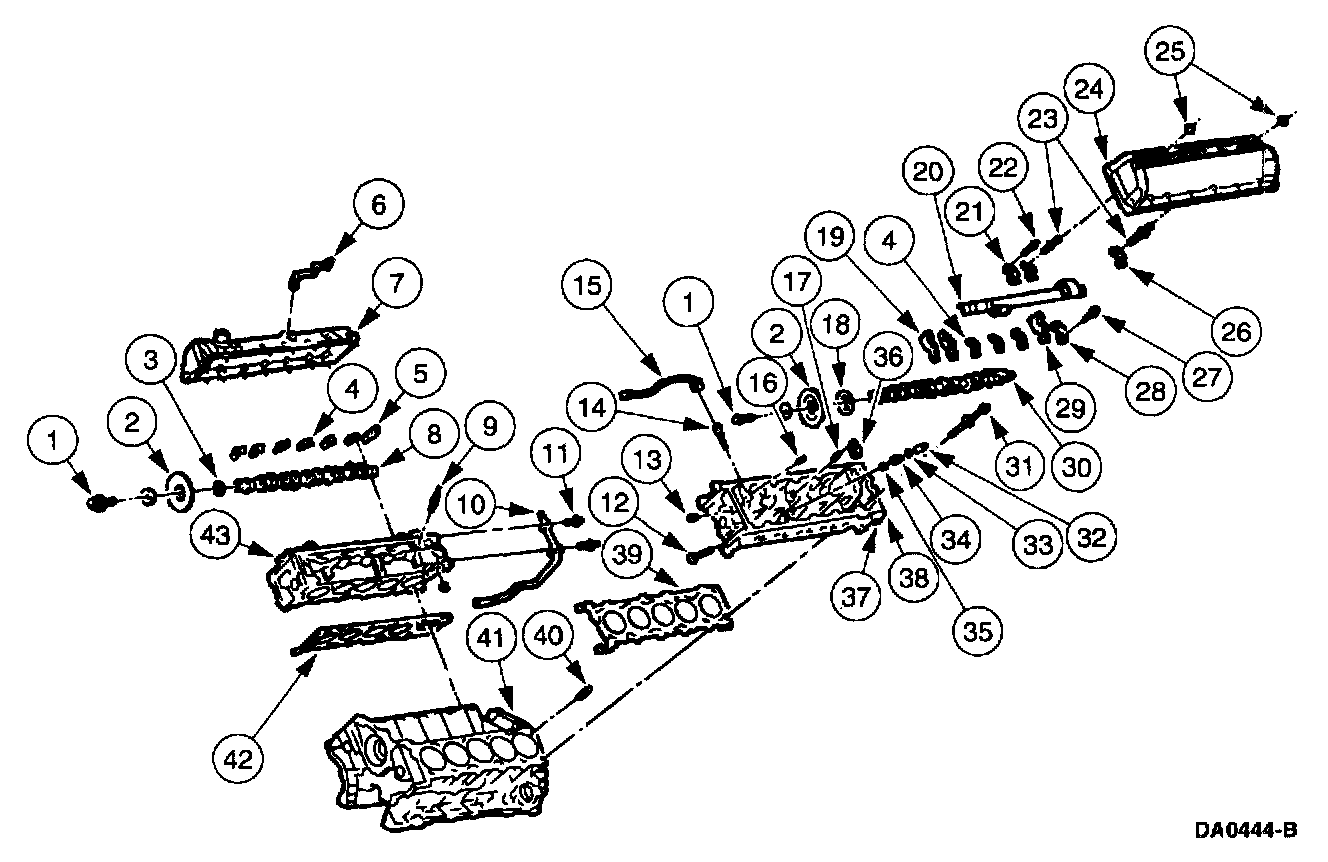

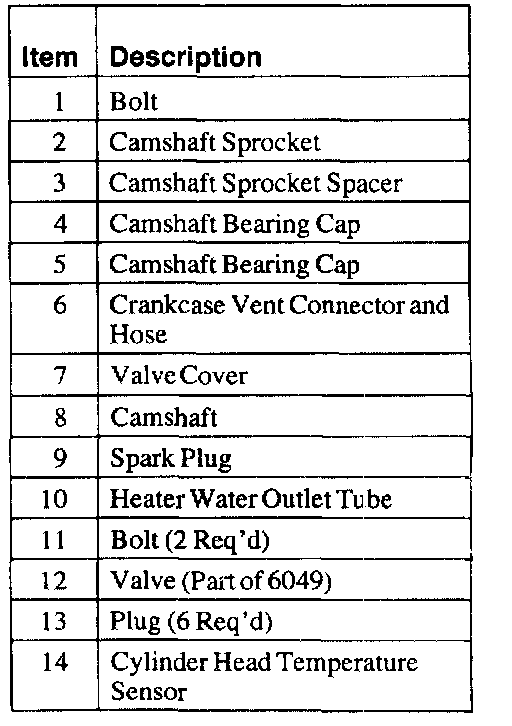

Upper End Components

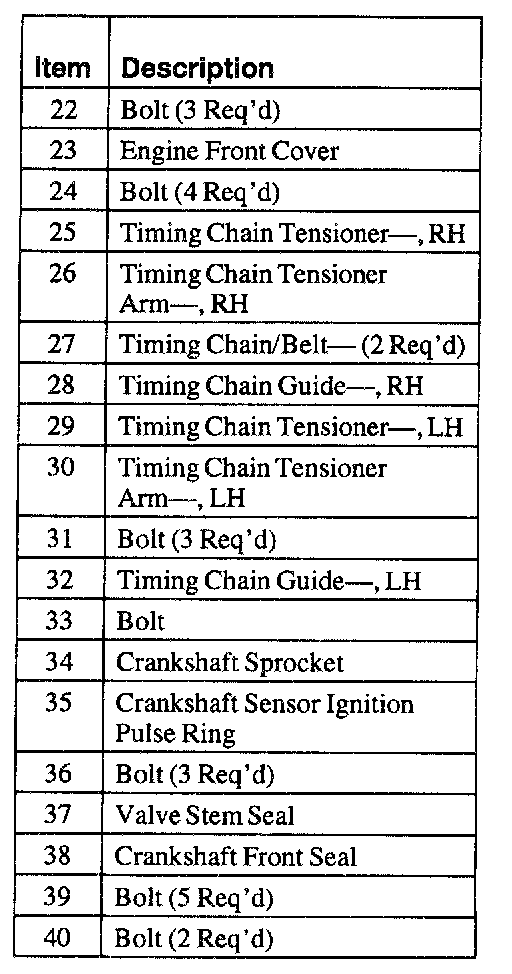

Major Front End Components
