Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 1999 >> Escort ZX2 L4-2.0L DOHC VIN 3 >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Diagrams >> Cylinder Head Components

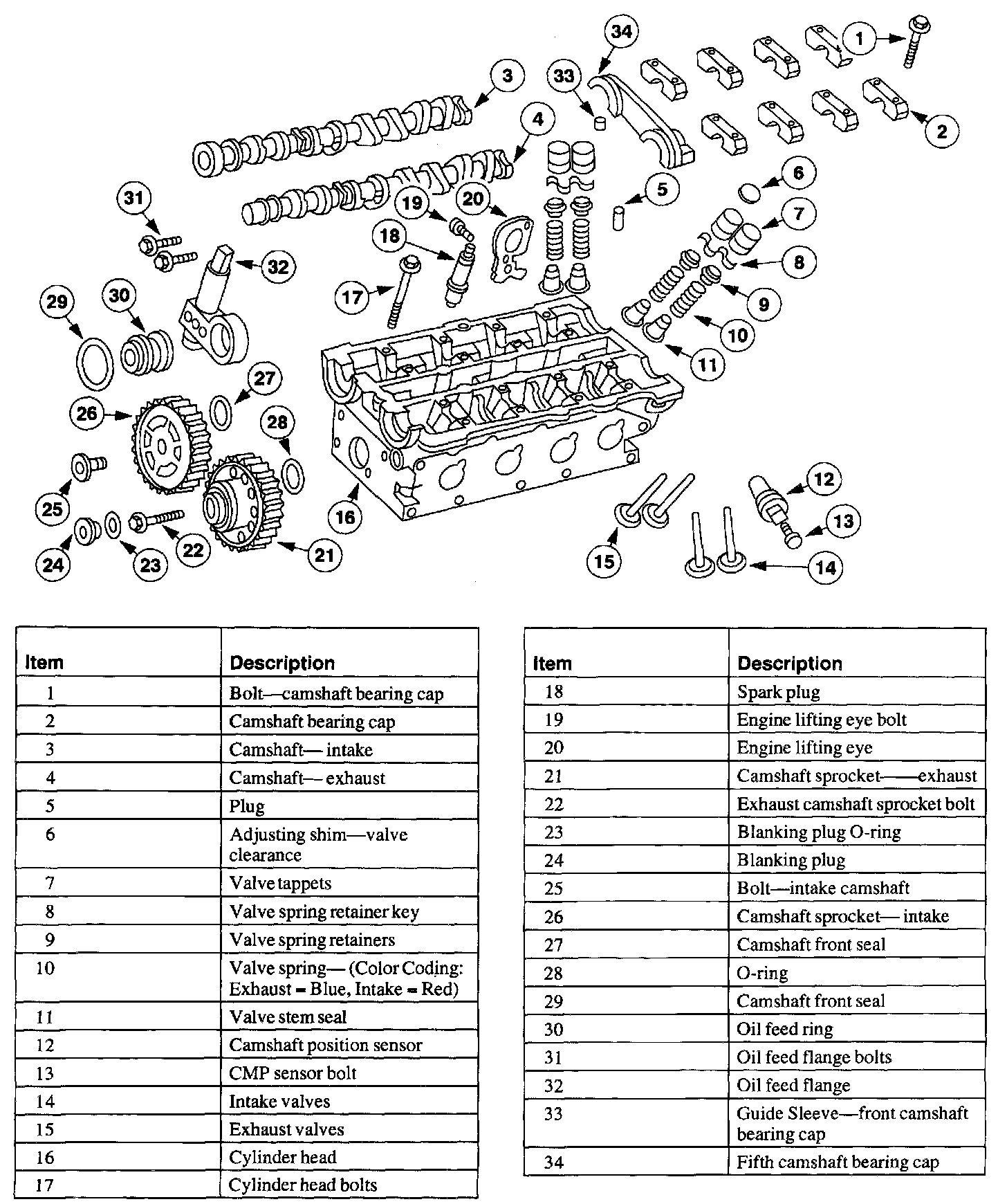

Cylinder Head Components

Cylinder Head Components:
