Escort ZX2 L4-2.0L DOHC VIN 3
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
A: Incorrect/Erratic Direction of Air Flow From Outlet(s)
A: Incorrect/Erratic Direction of Air Flow From Outlet(s)

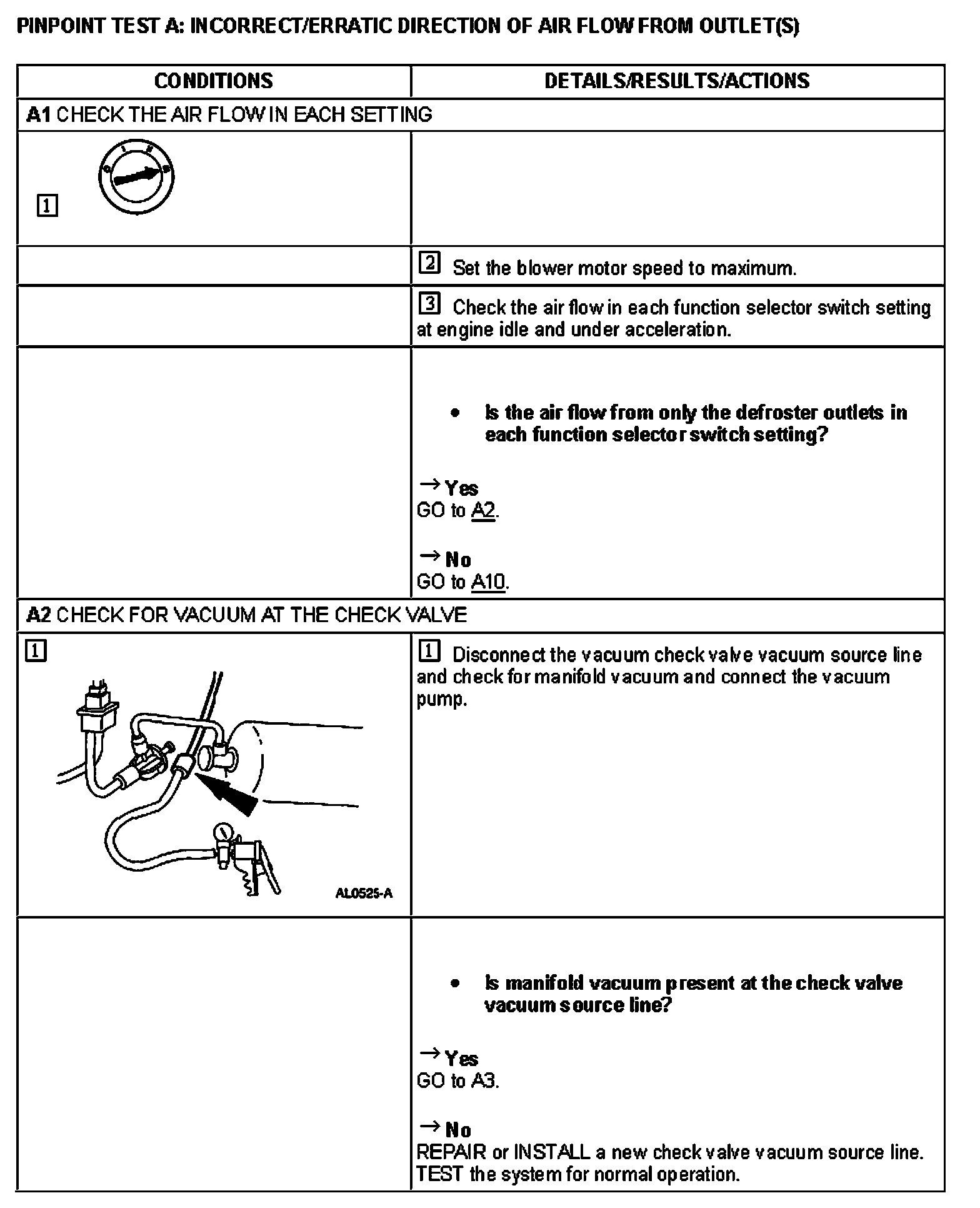

A1 - A2:

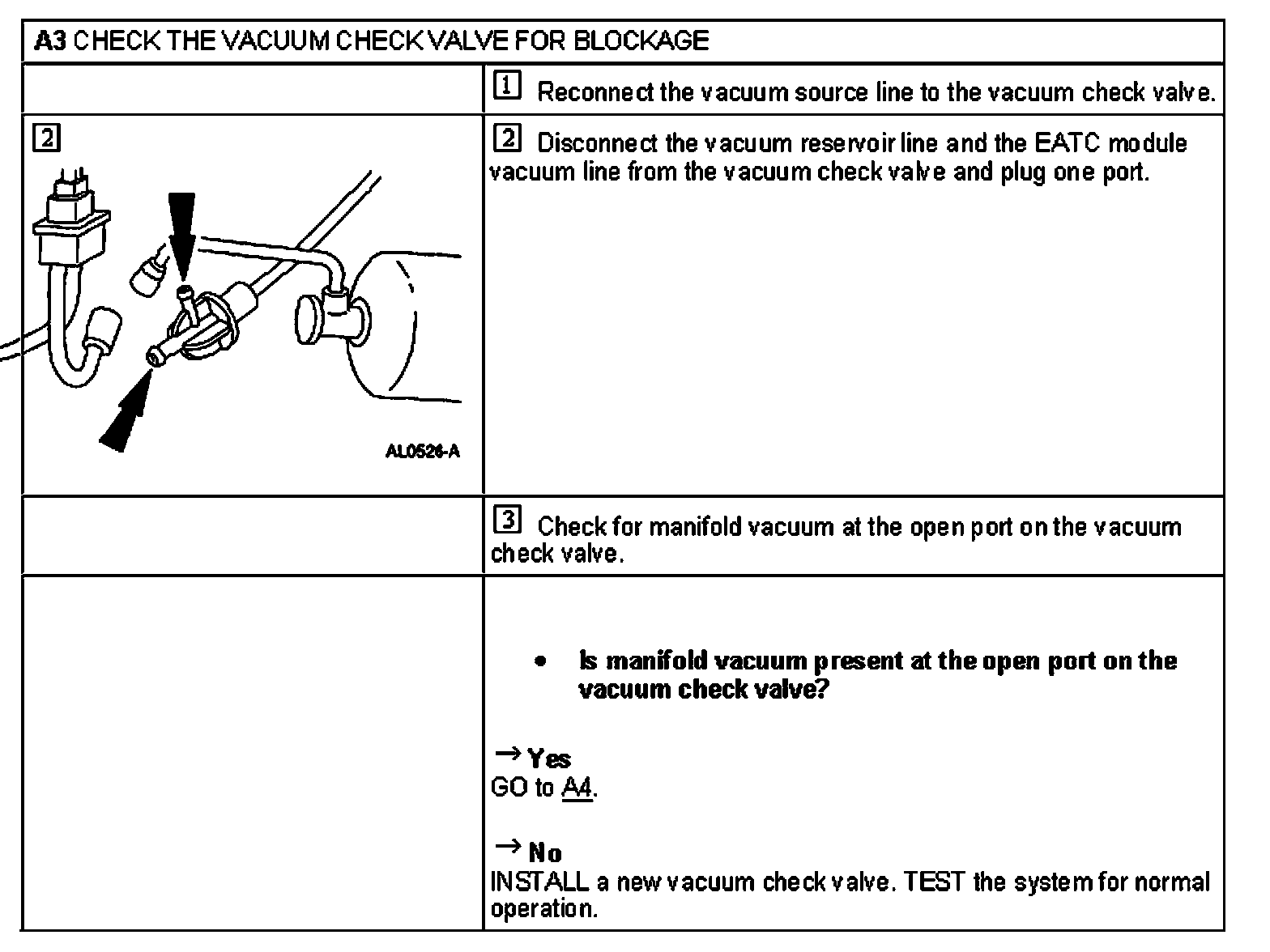

A3:

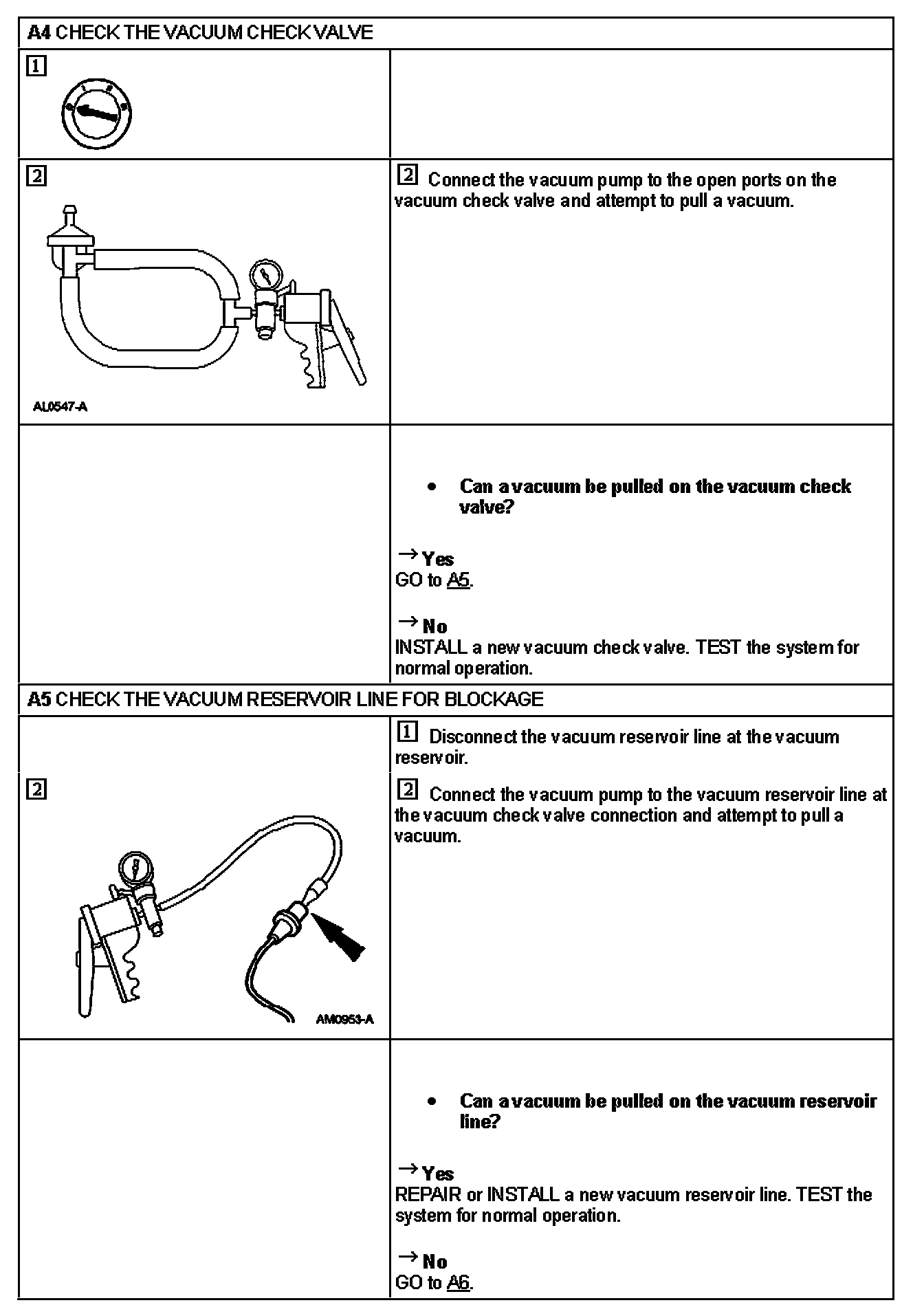

A4 - A5:
A6 - A7:

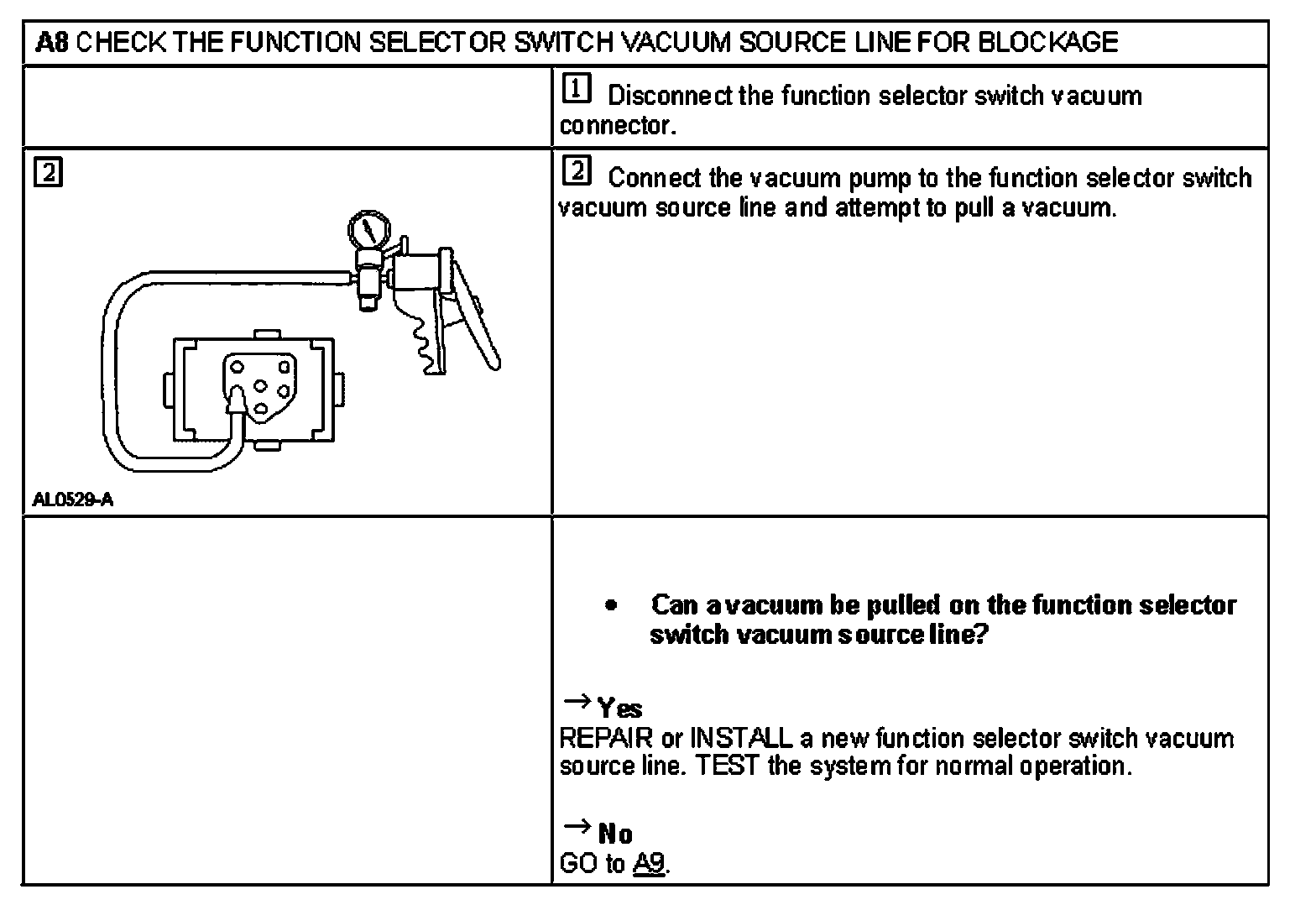

A8:
A9:

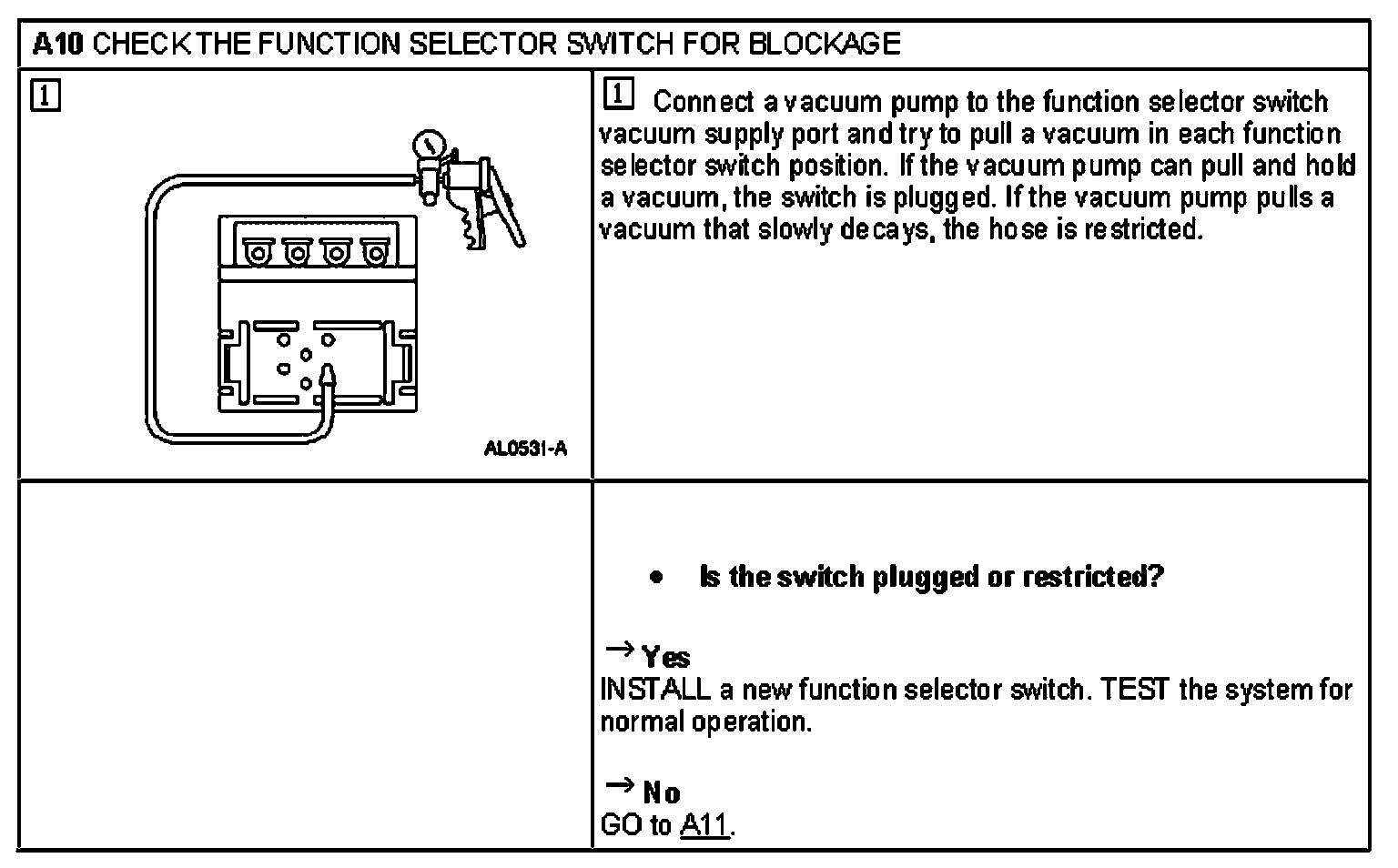

A10:

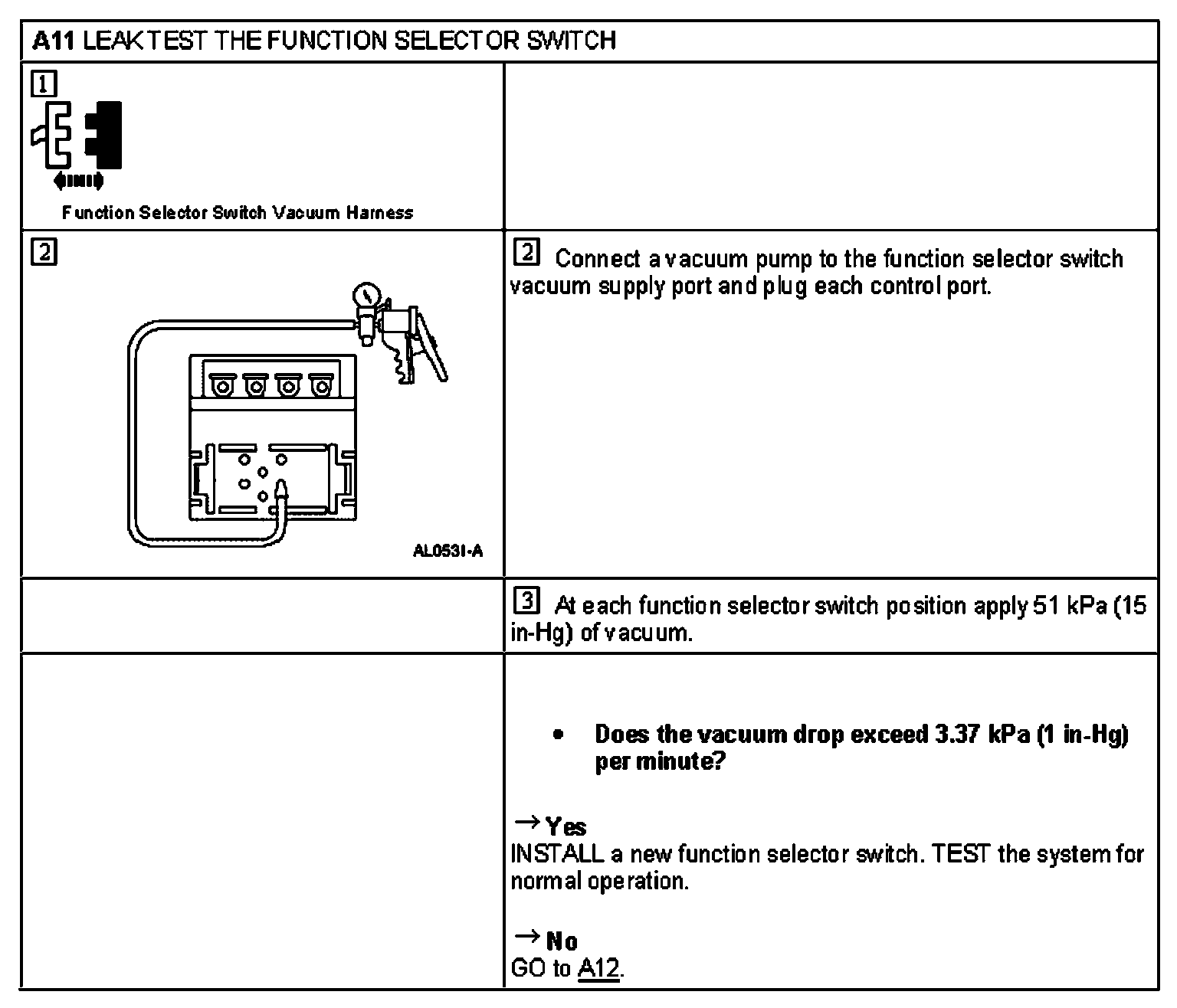

A11:

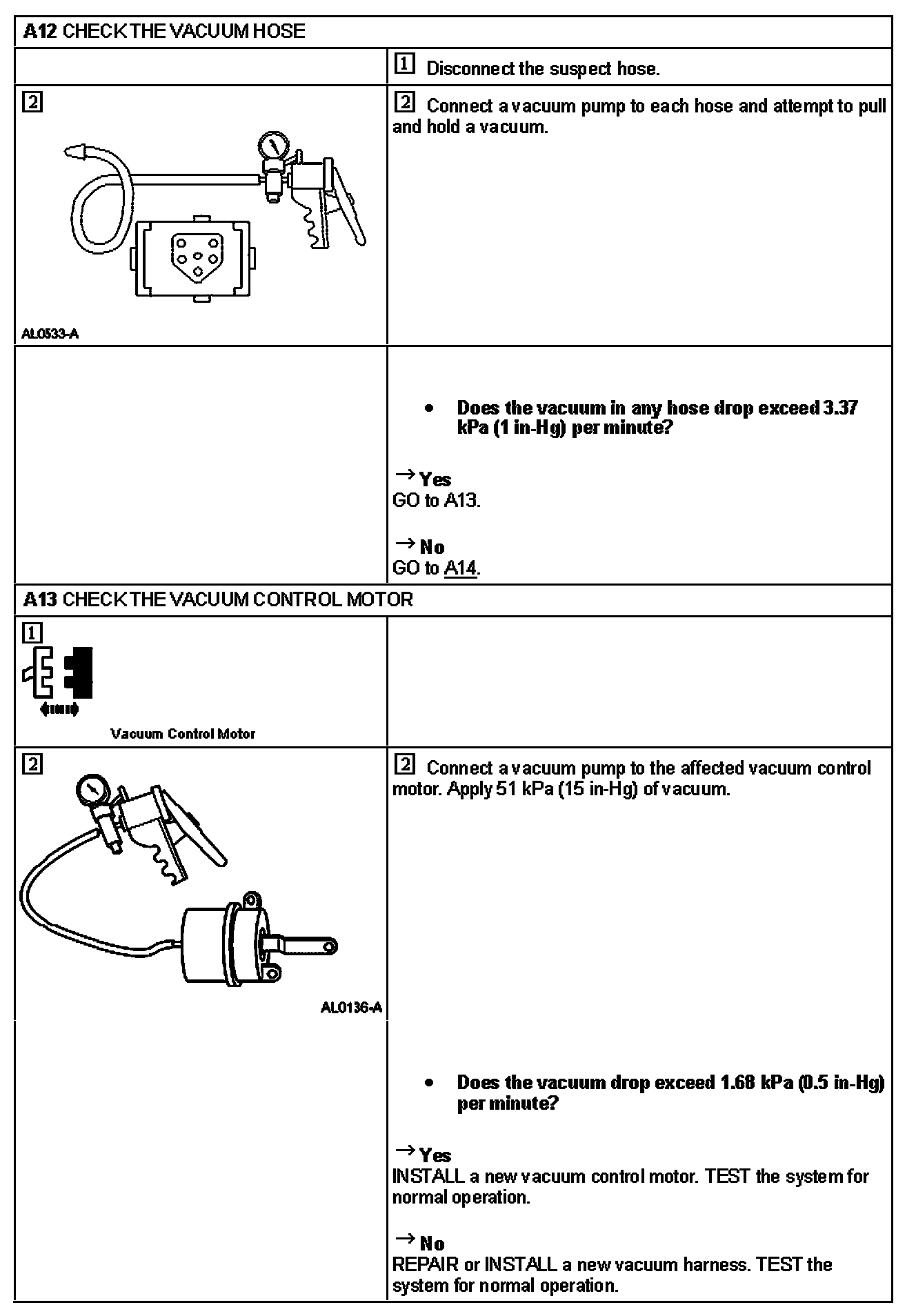

A12 - A13:

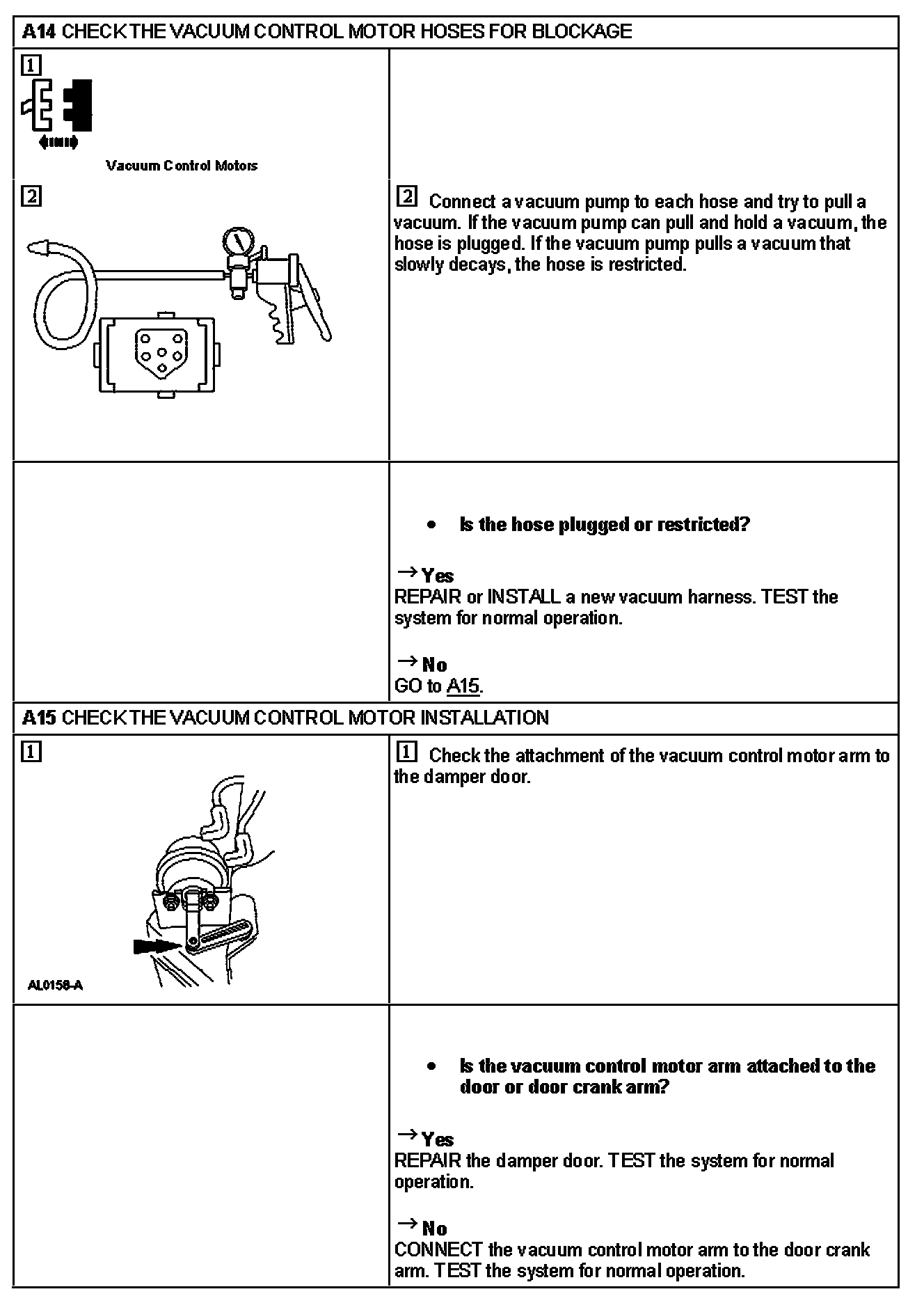

A14 - A15:
