C: Torque Converter Clutch (TCC) Solenoid
C: Torque Converter Clutch (TCC) Solenoid
C1:
C1 - C2:
C2 - C3:
C4 - C5:

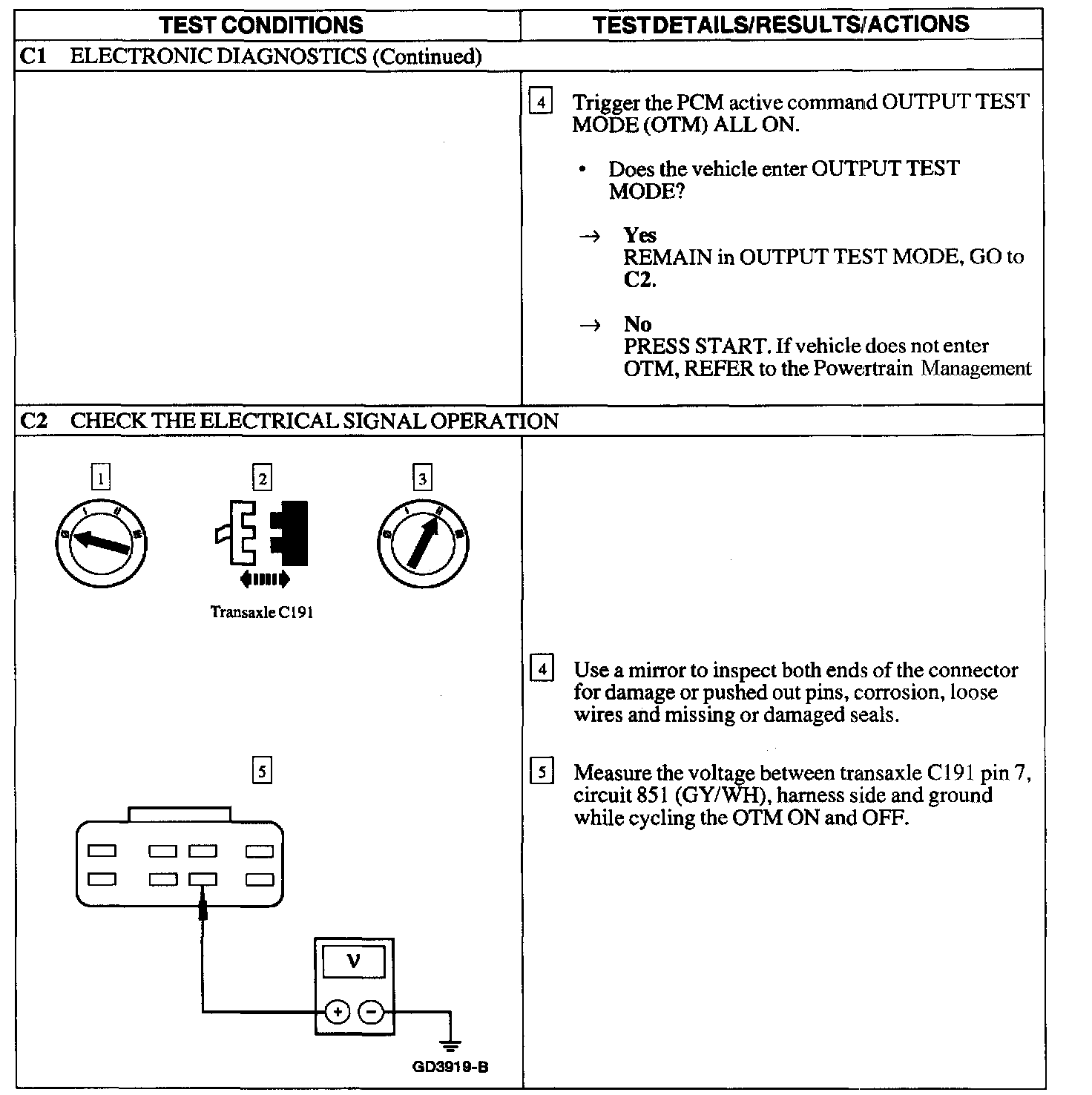

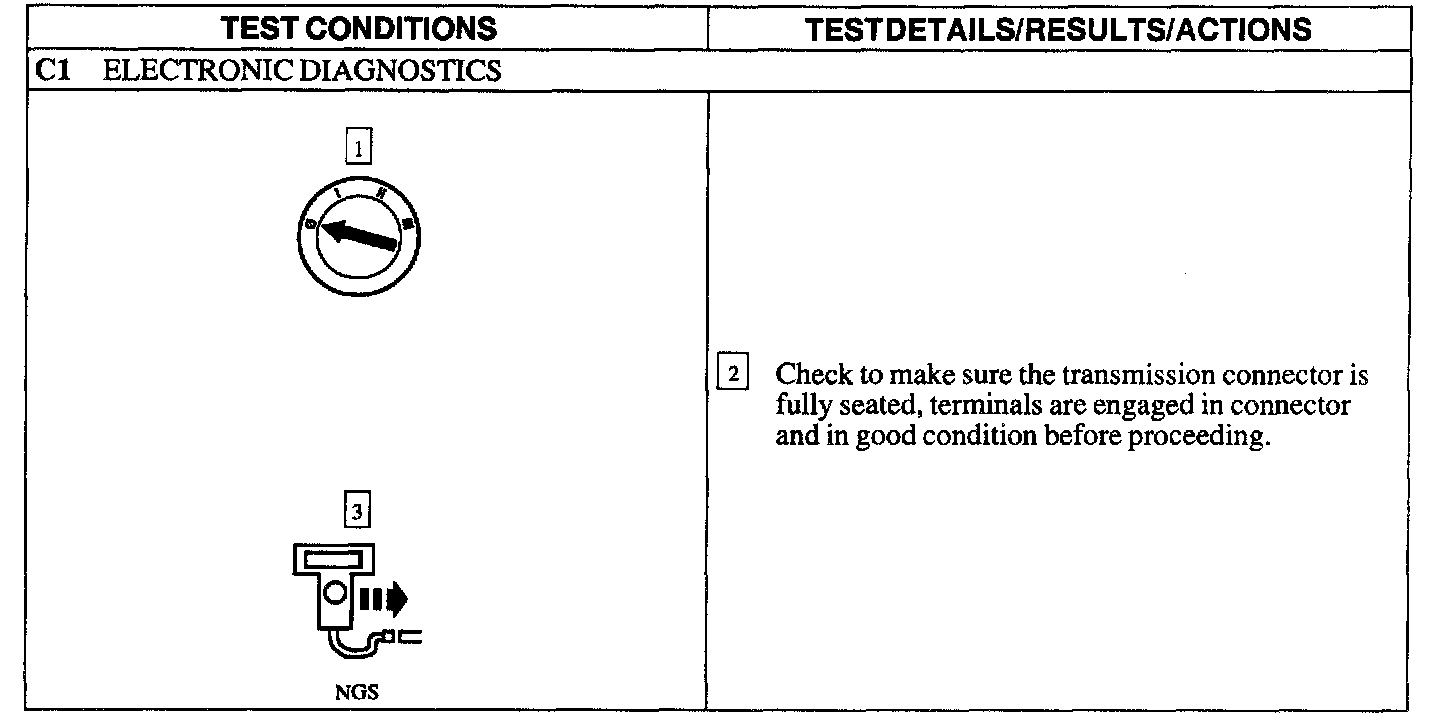

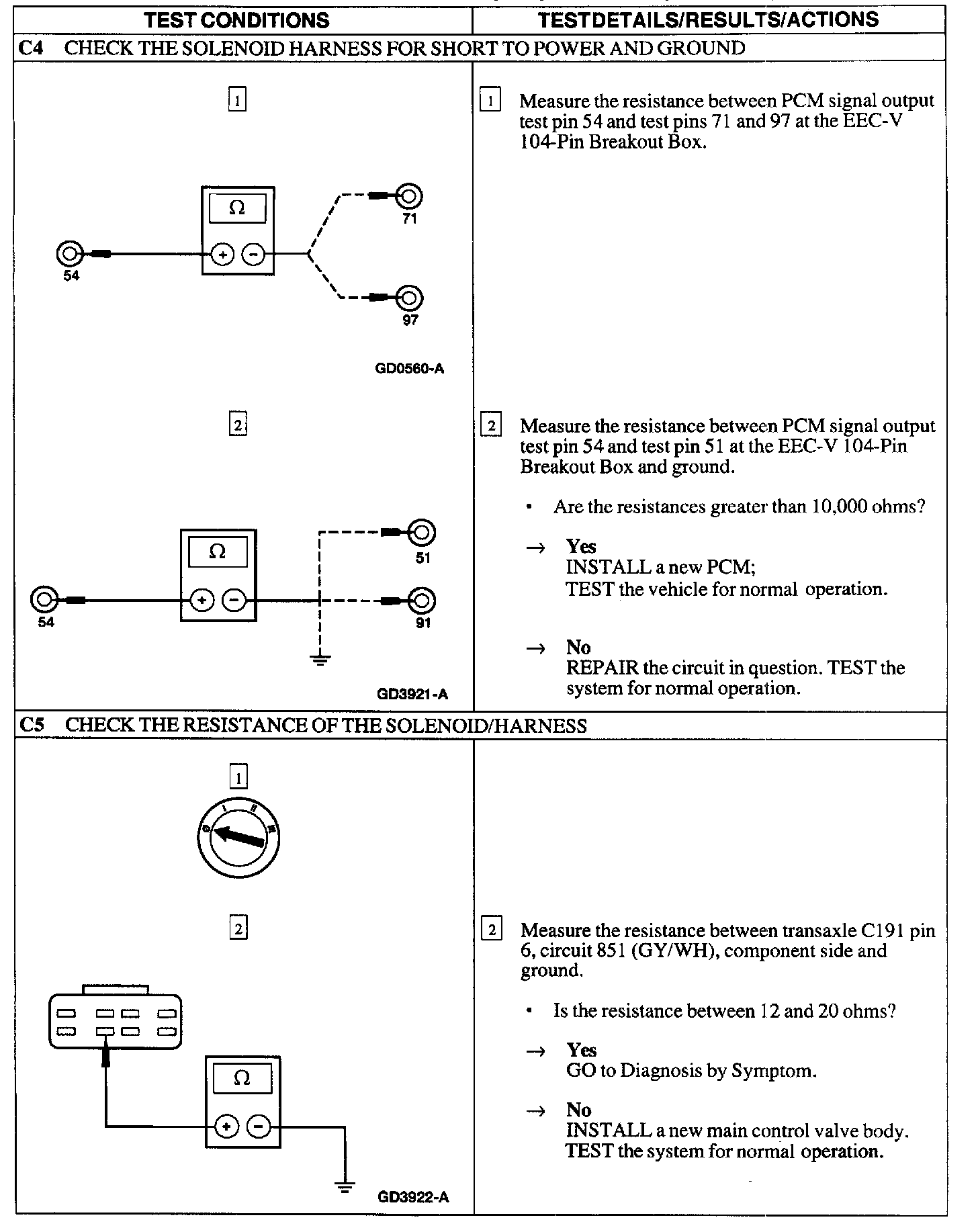

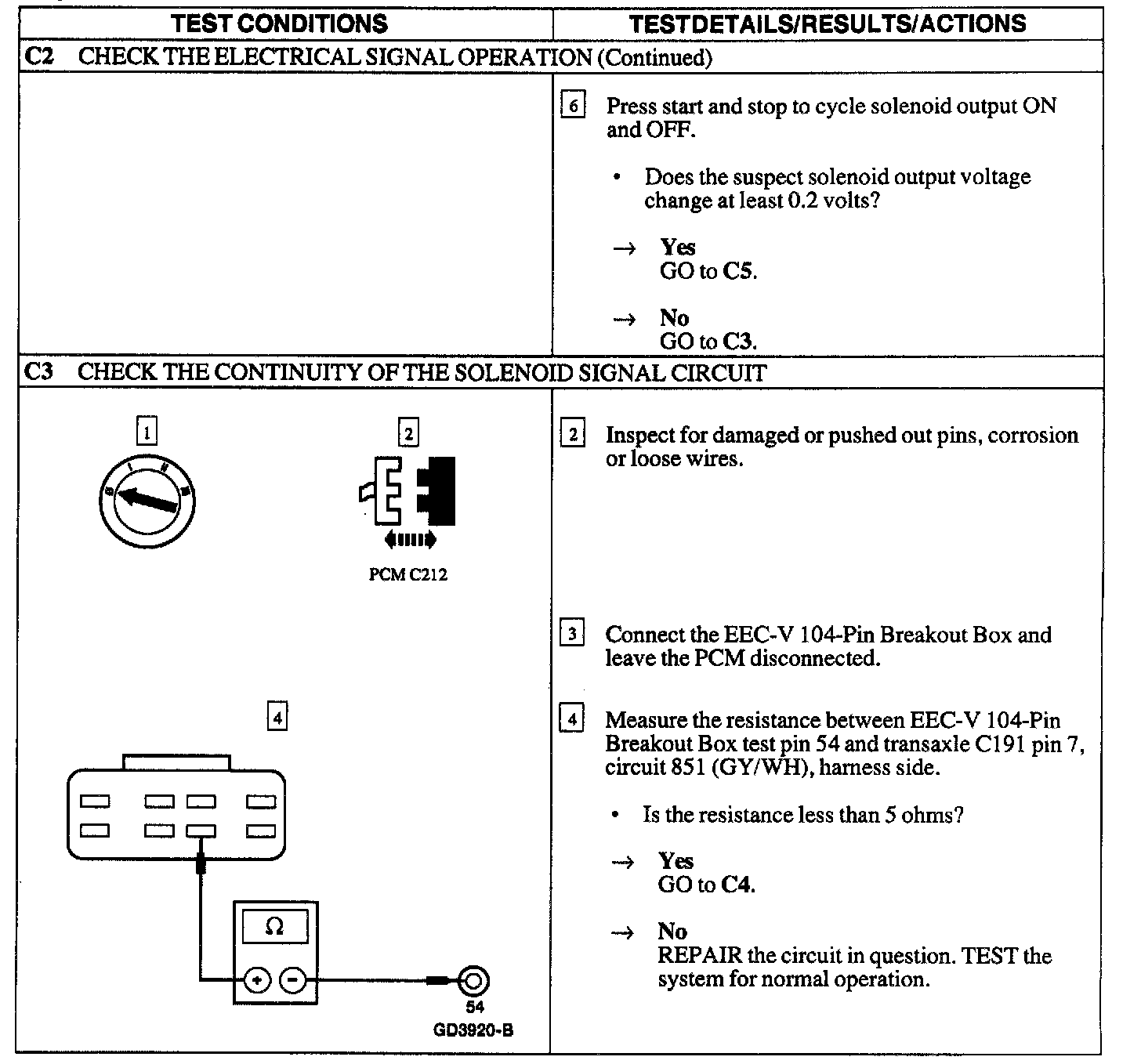

Pinpoint Test C: TORQUE CONVERTER CLUTCH (TCC) SOLENOID
