D: Transmission Range (TR)/Manual Lever Position (MLP) Sensor

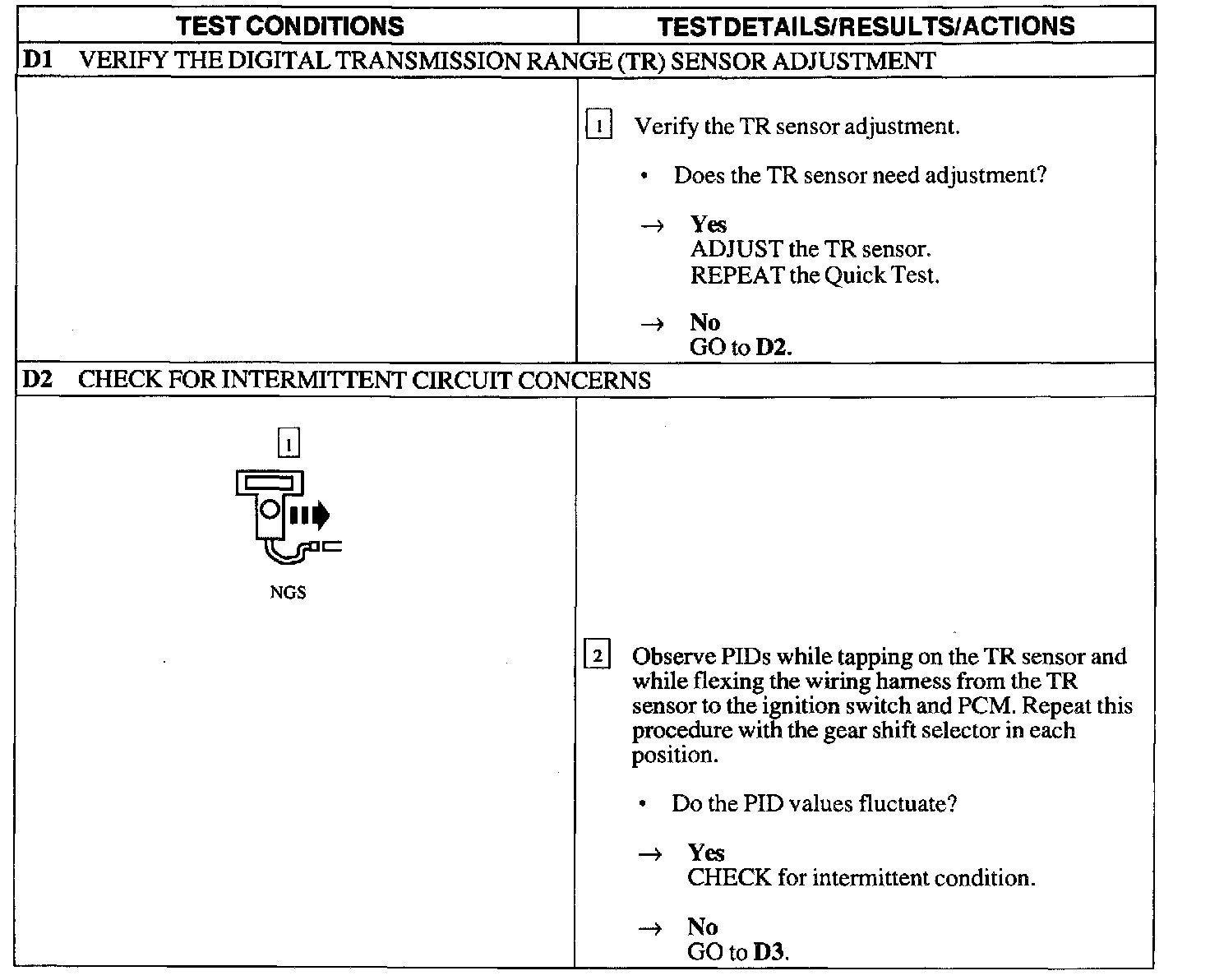

D1 - D2:

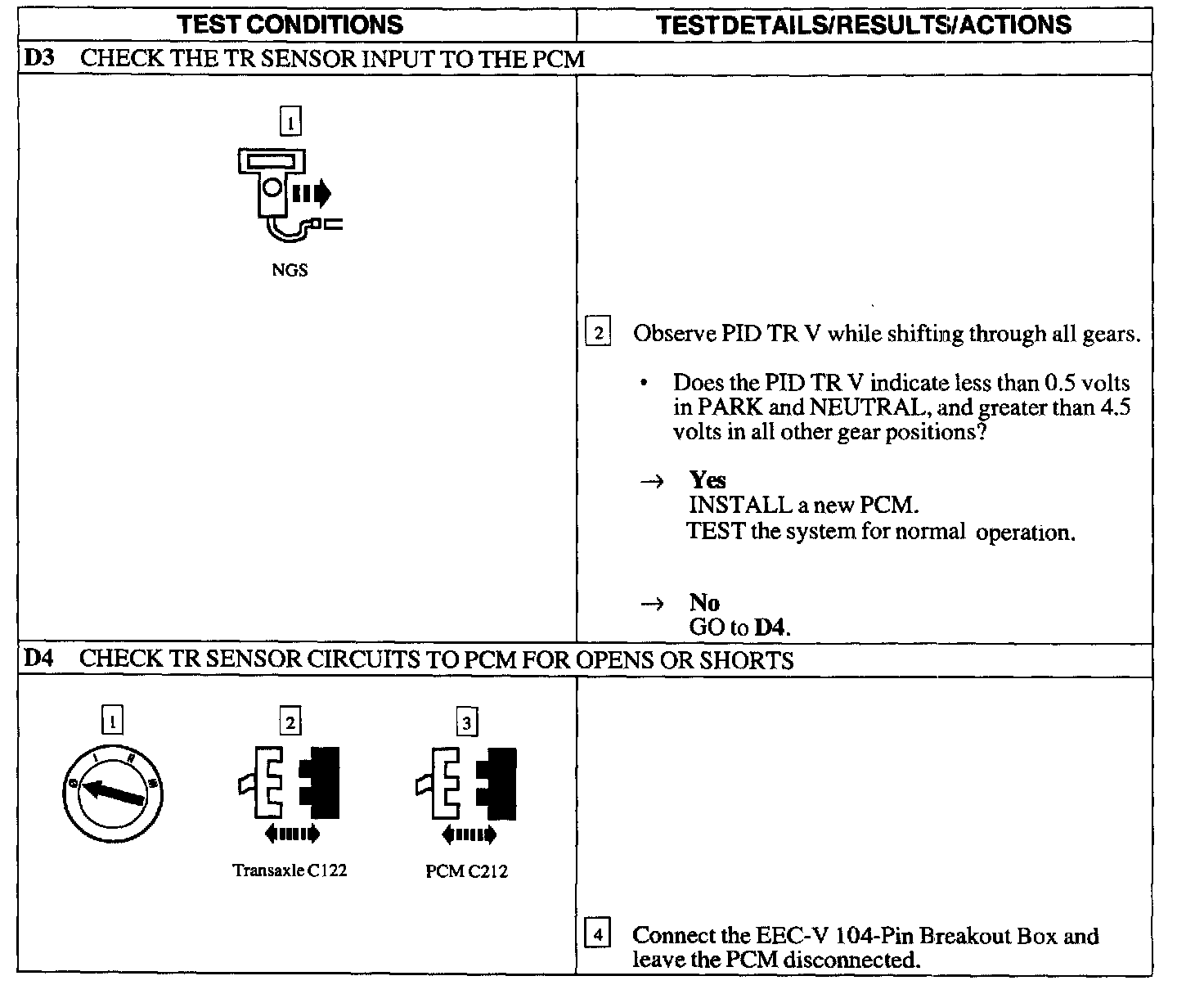

D3 - D4:

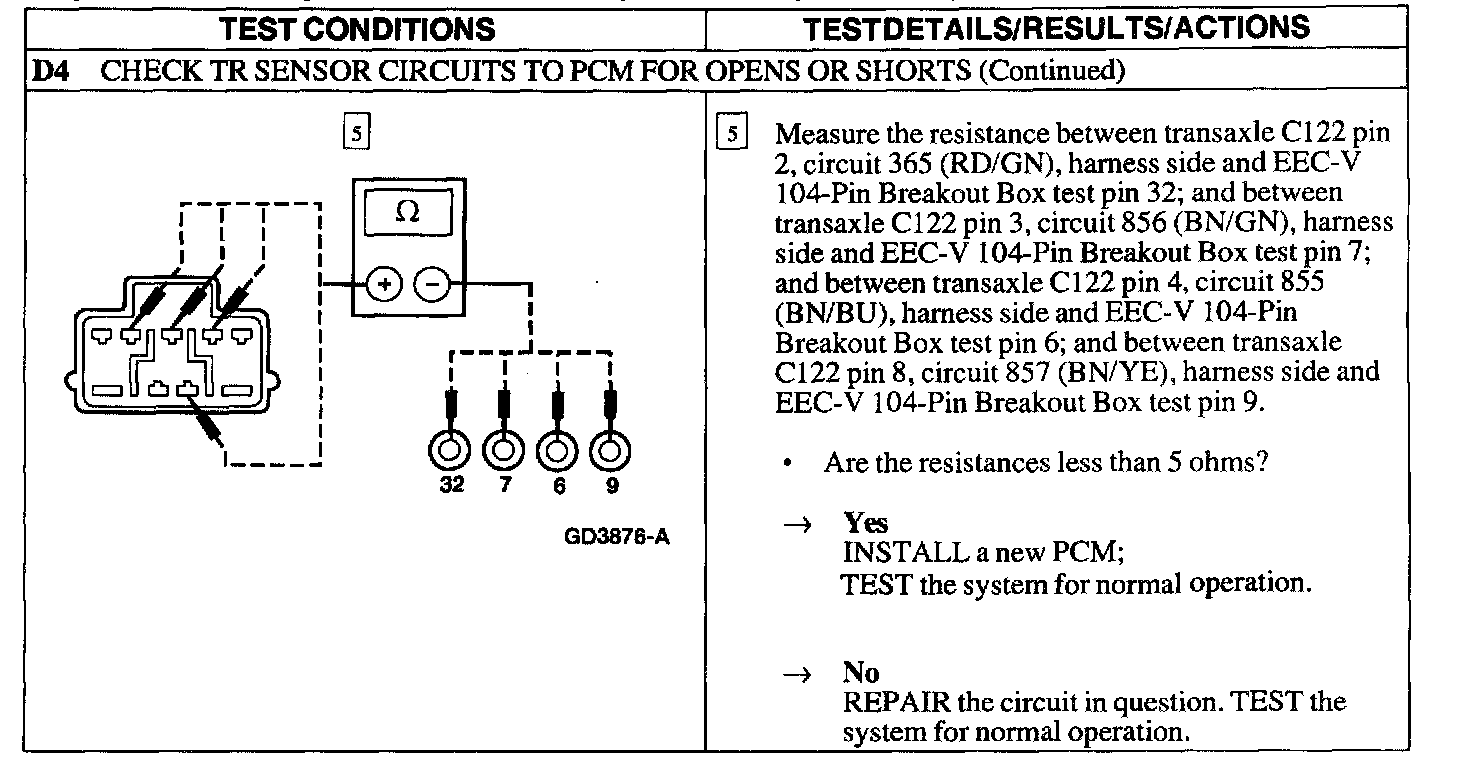

D4:





Pinpoint Test D: Digital Transaxle Range (TR) Sensor
