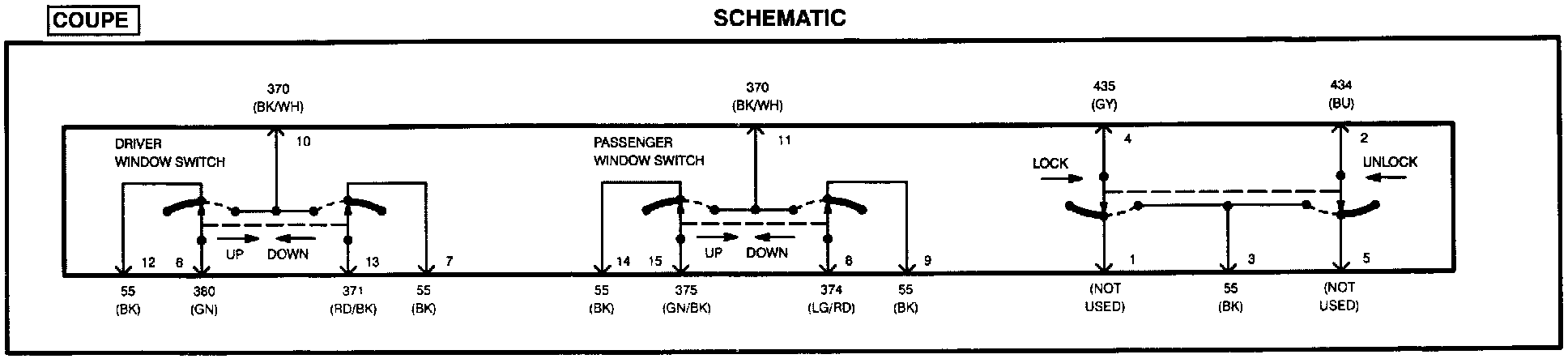

Master Window/Door Lock Control Switch
Master Window/Door Lock Control Switch

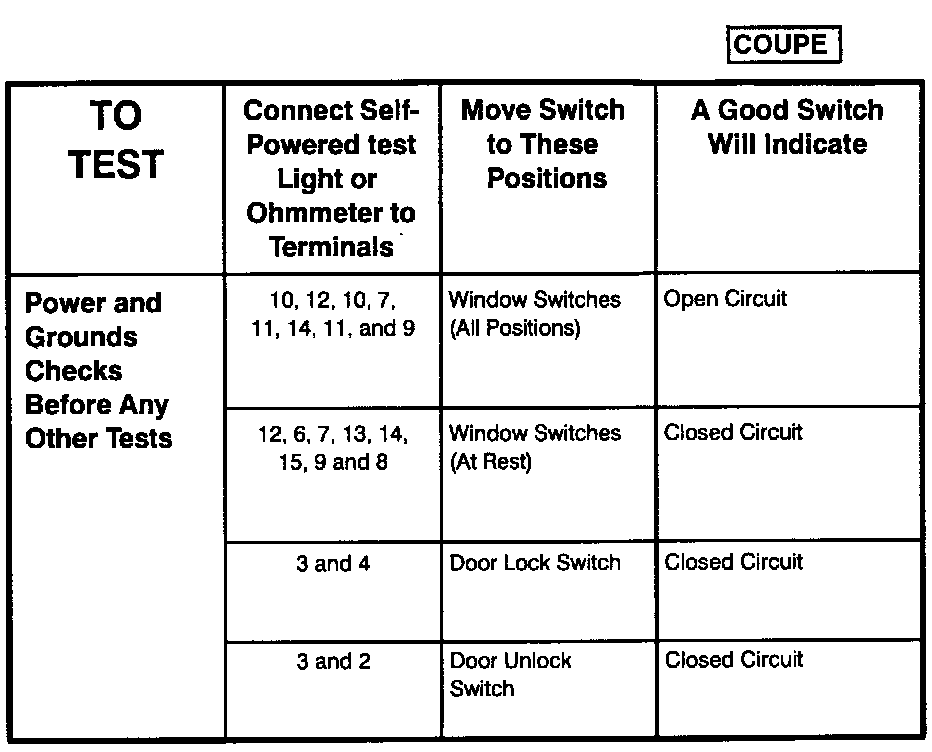

Component Testing Procedure:

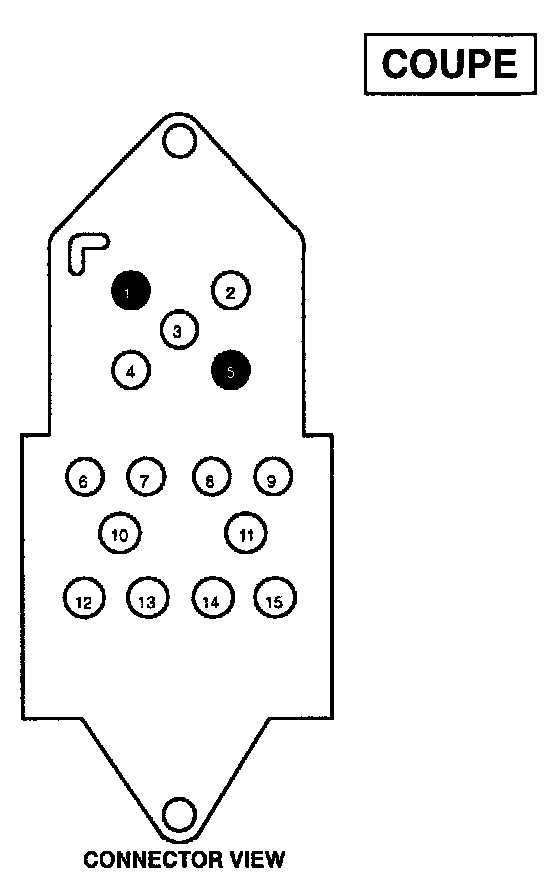

Terminals:
