Transmission Control Systems
Transmission Control Systems
1 Of 2:
2 Of 2:

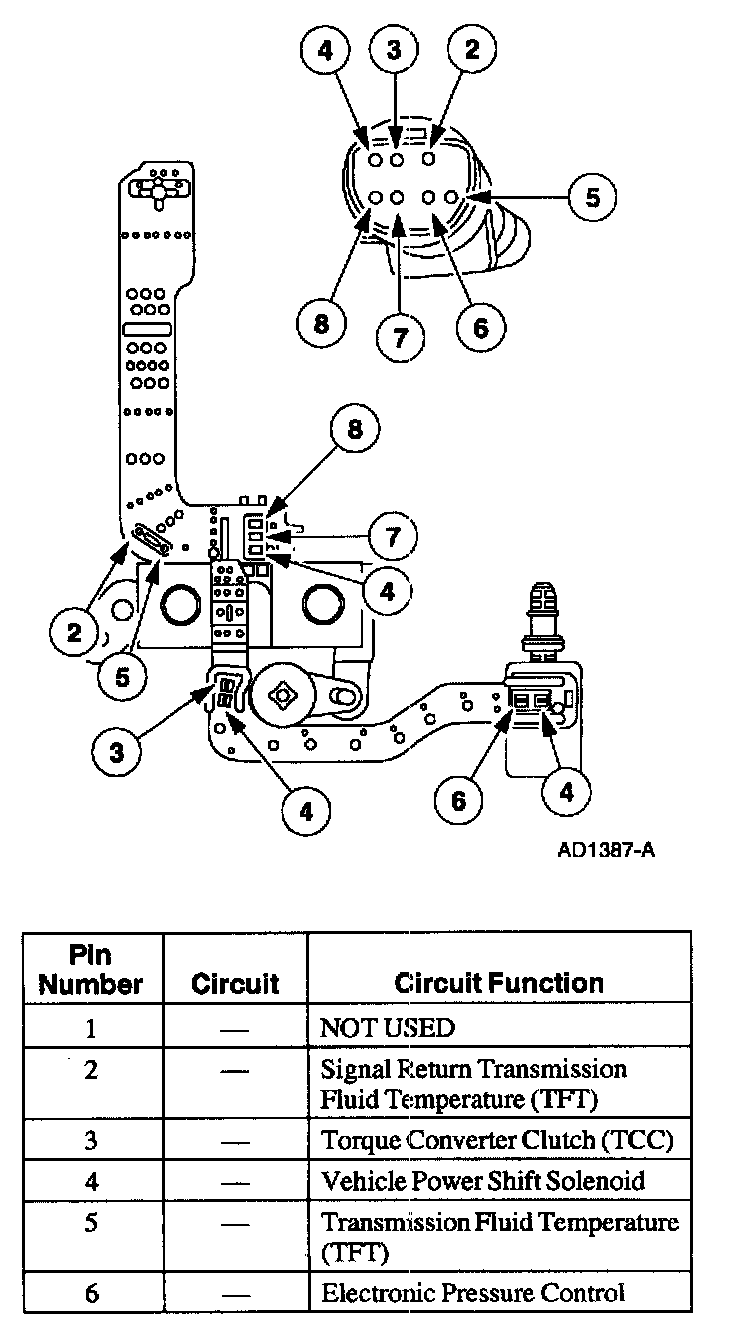

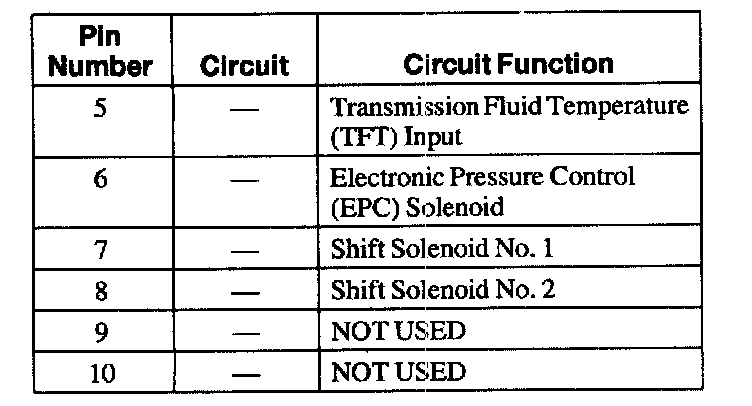

TRANSMISSION VEHICLE HARNESS CONNECTOR
1 Of 2:
2 Of 2:

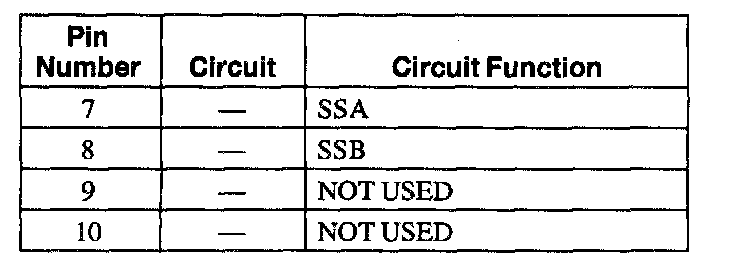

TRANSMISSION INTERNAL HARNESS CONNECTOR
