Transmission Position Sensor/Switch: Diagrams

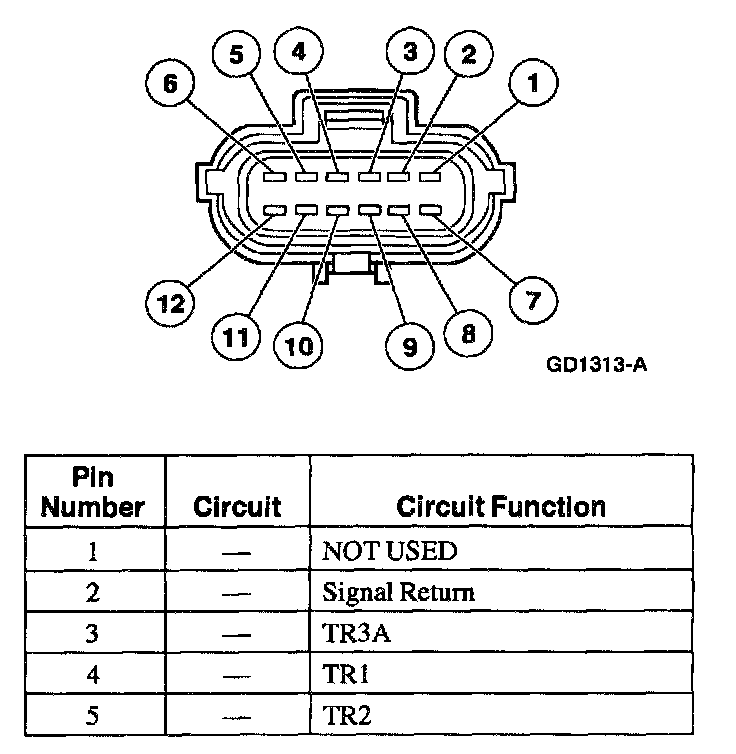

1 Of 2:

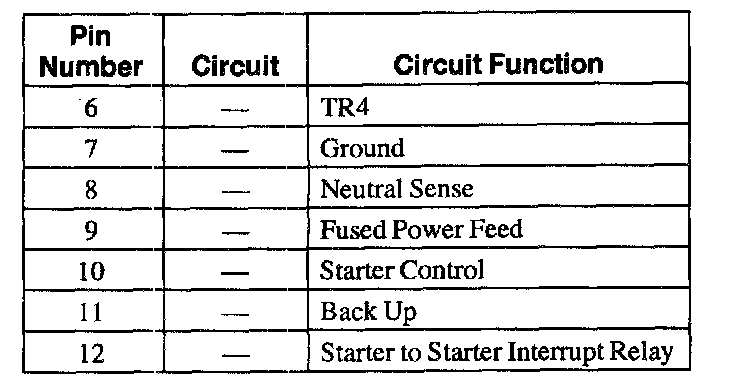

2 Of 2:





DIGITAL TRANSMISSION RANGE (TR) SENSOR CONNECTOR
