Shift Solenoid Operation Chart

Use the following shift solenoid operation information when performing Pinpoint Test A.

1 Of 3:

2 Of 3:

3 Of 3:

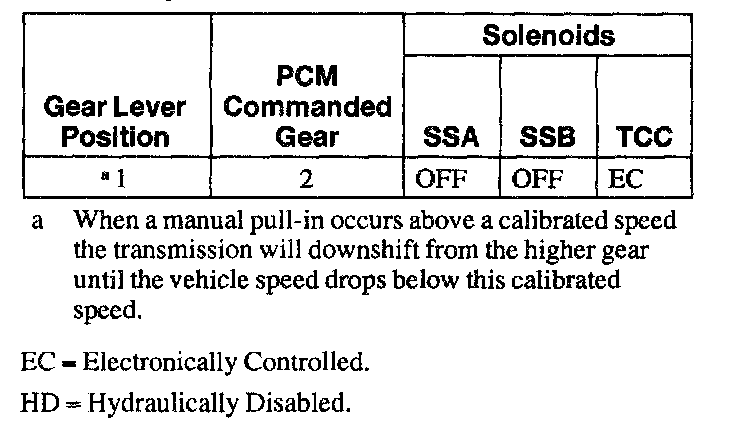

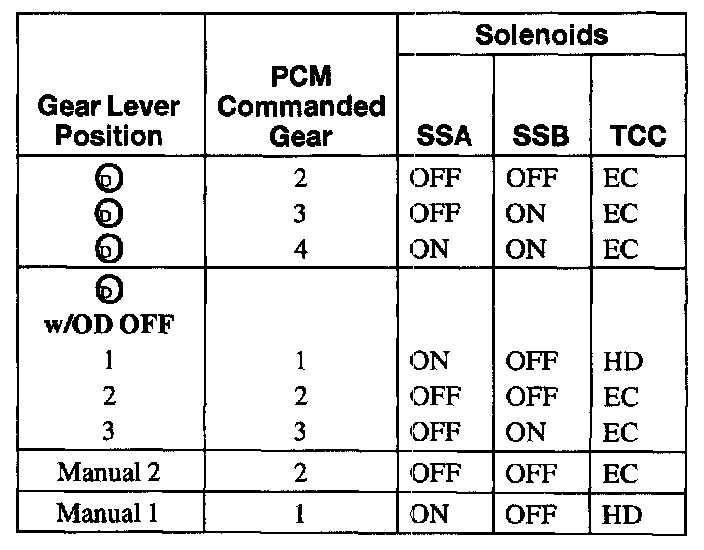

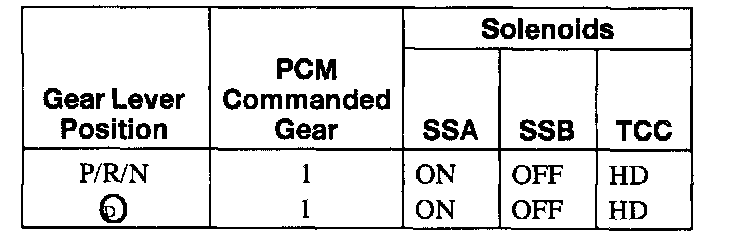

SOLENOID OPERATION CHART

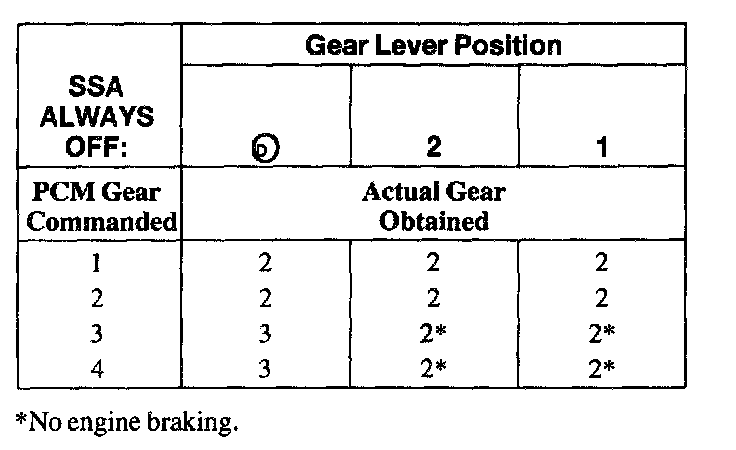

SHIFT SOLENOID FAILURE MODE CHART "ALWAYS OFF"








Failed off due to powertrain control module and/or vehicle wiring concerns, shift solenoid electrically or hydraulically stuck off.

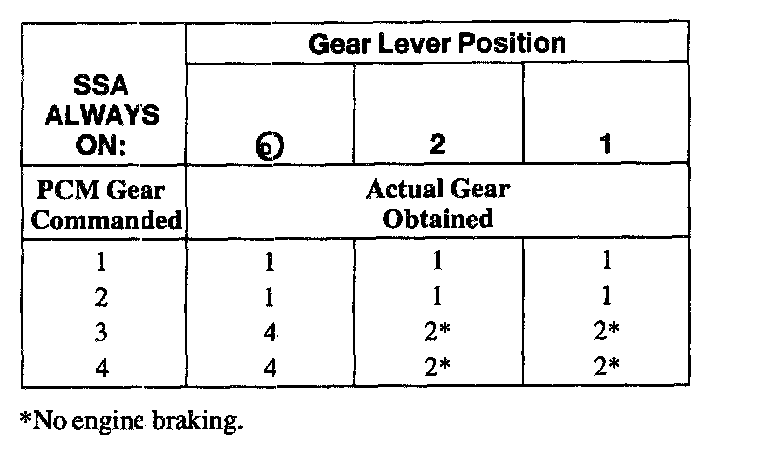

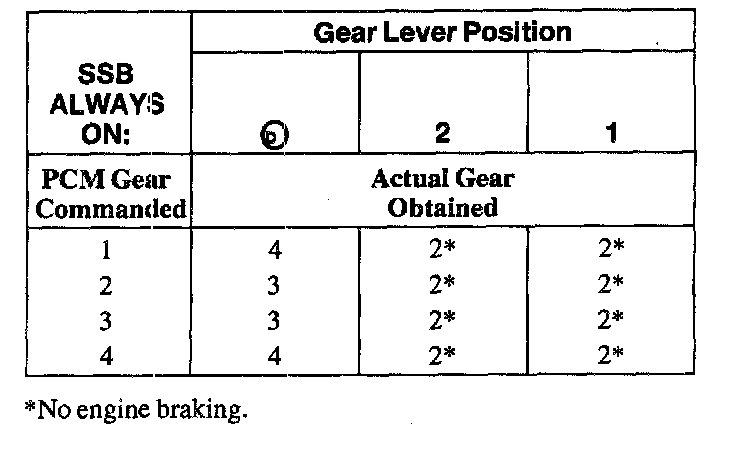

SHIFT SOLENOID FAILURE MODE CHART "ALWAYS ON"








Failed on due to powertrain control module and/or vehicle wiring concerns, shift solenoid electrically or hydraulically stuck on.
