Test A: Doors Do Not Lock or Unlock Using Remote Transmitter

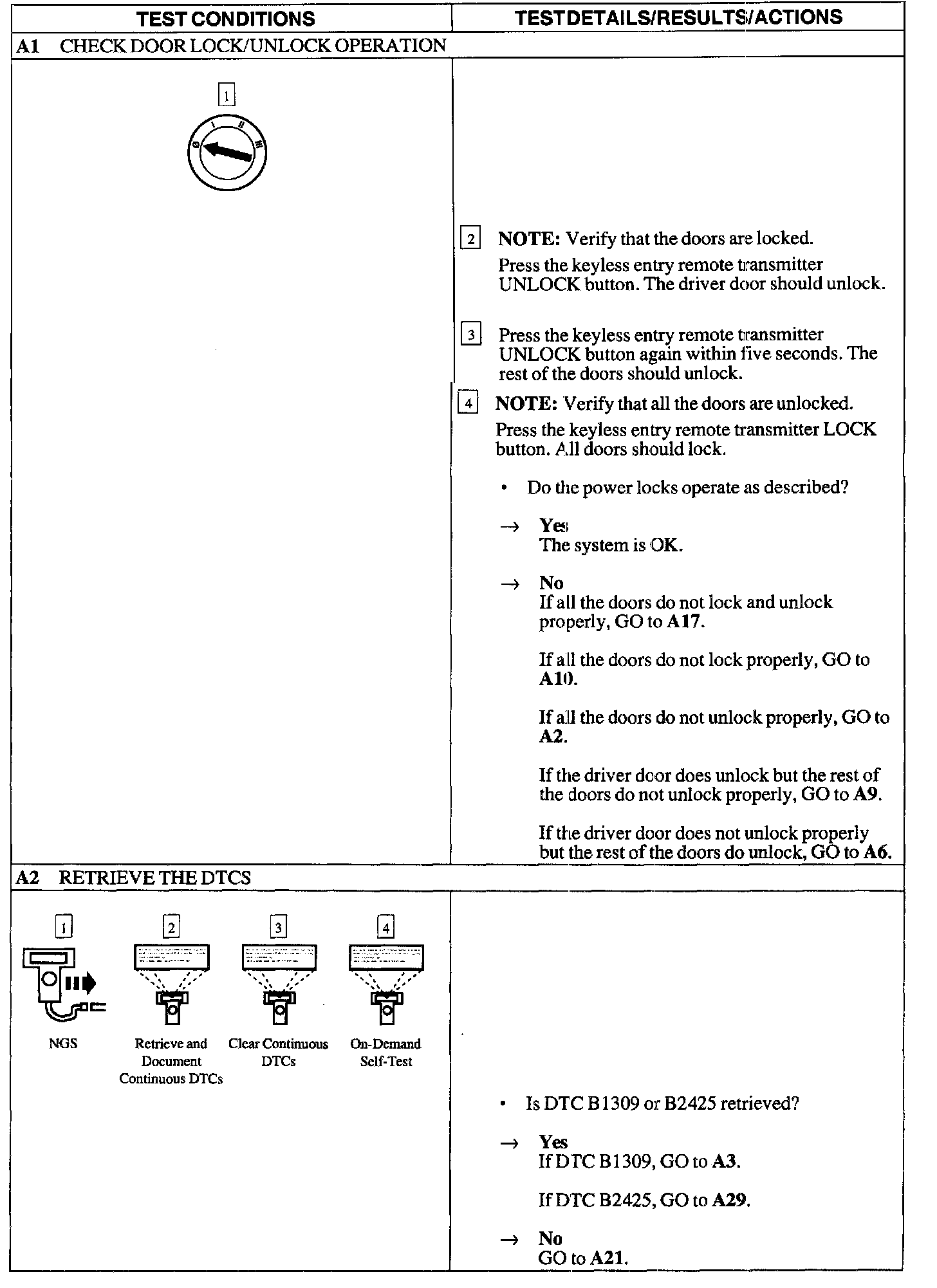

A1 - A2:

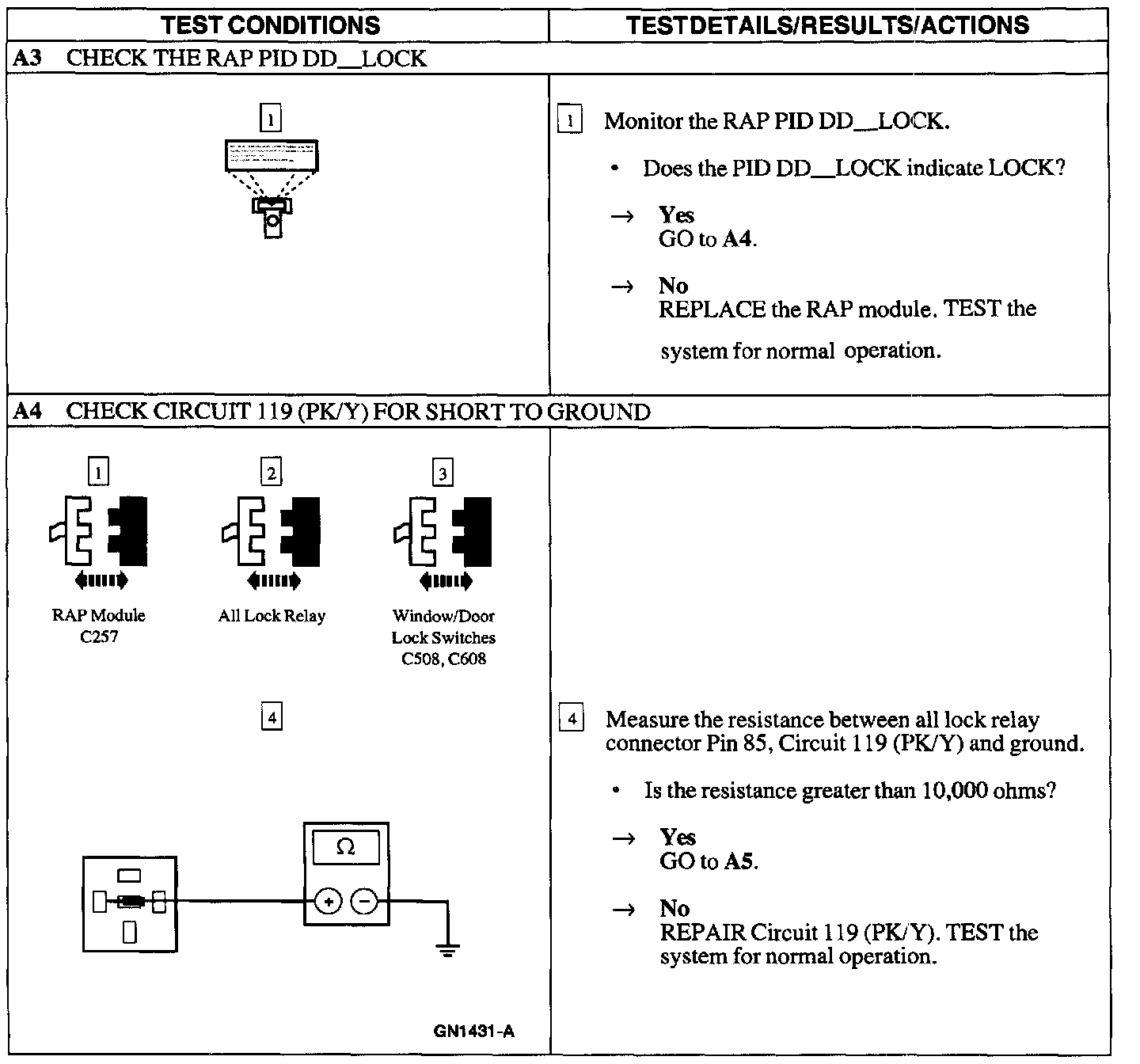

A3 - A4:

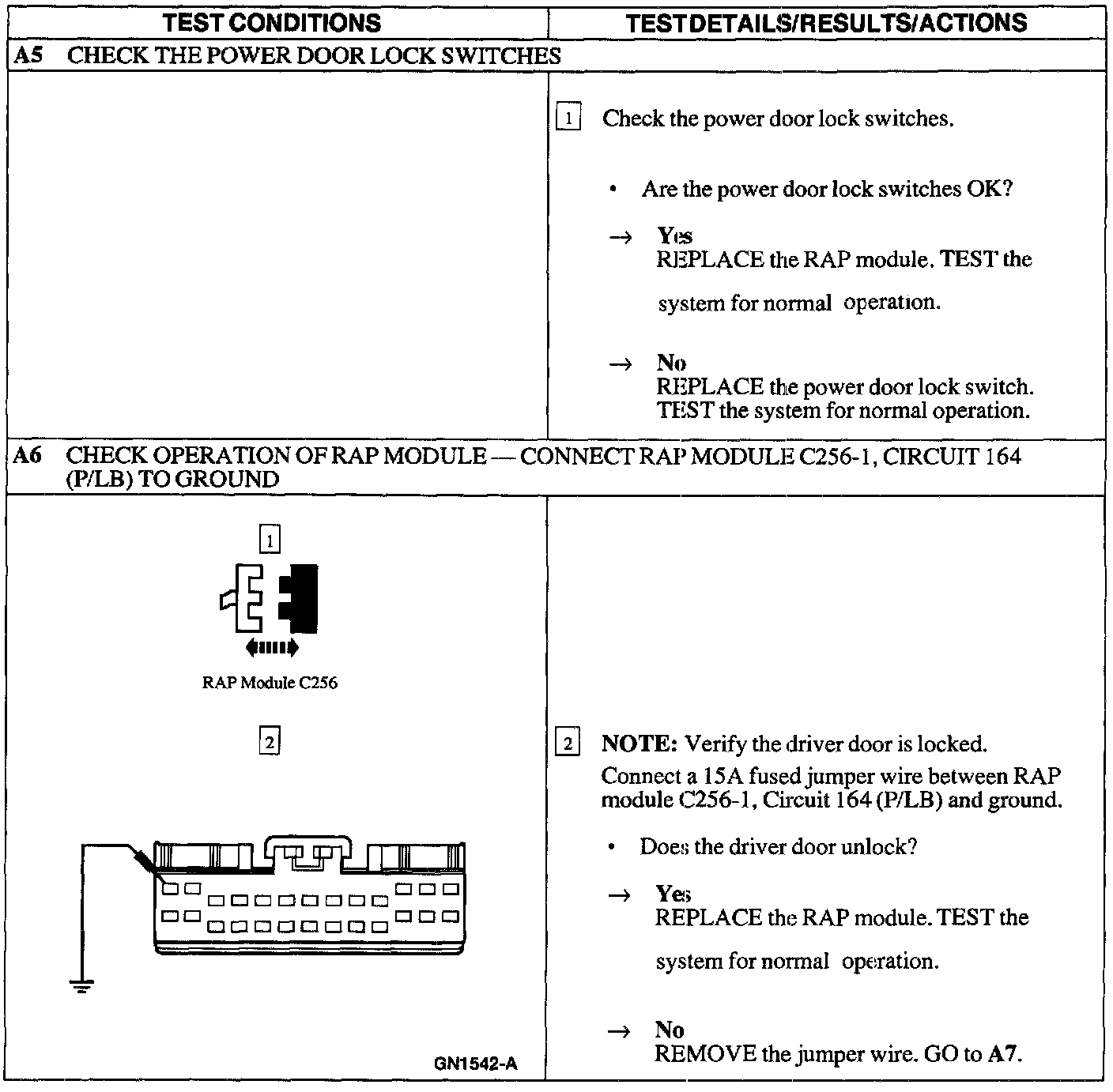

A5 - A6:

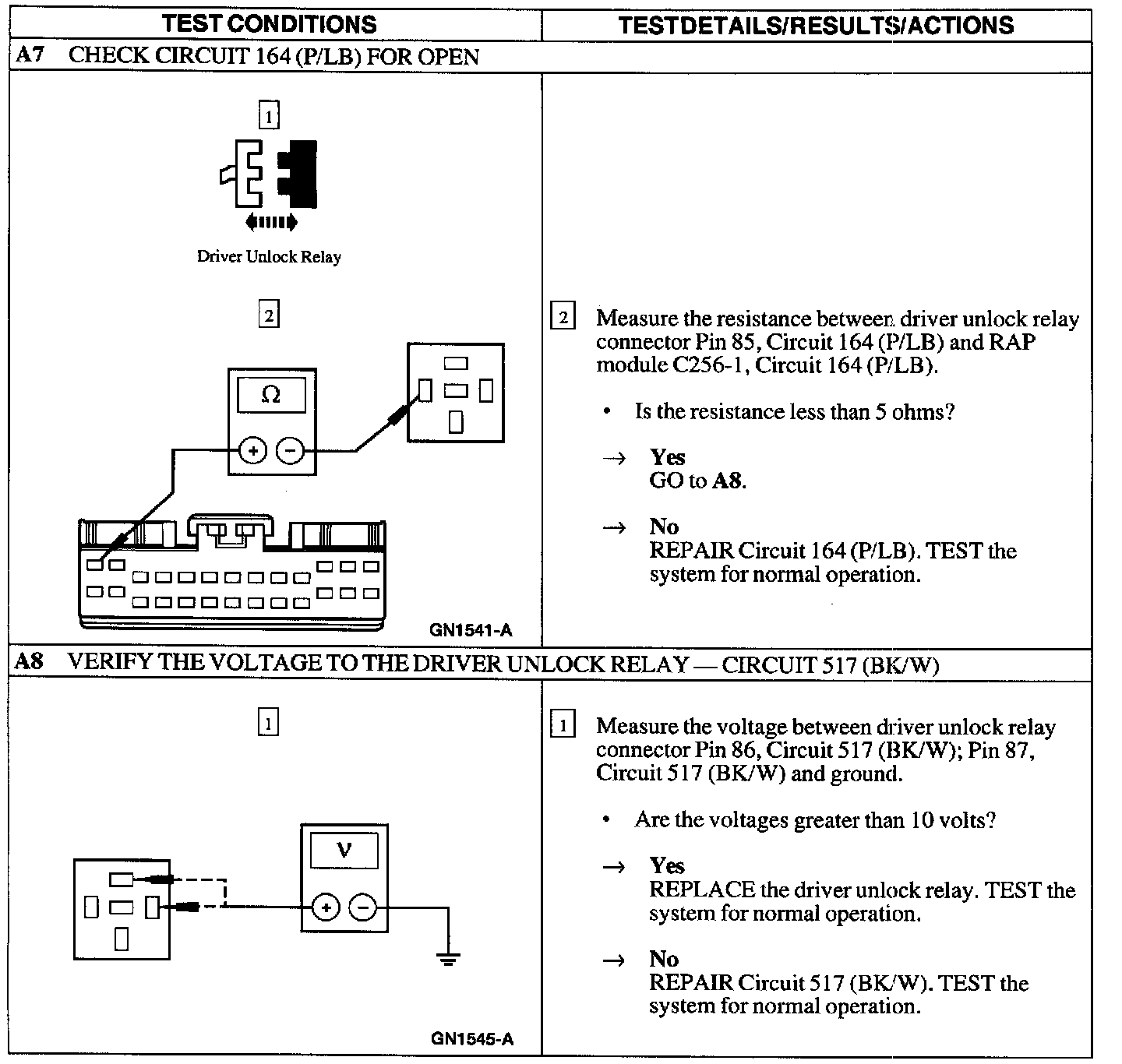

A7 - A8:

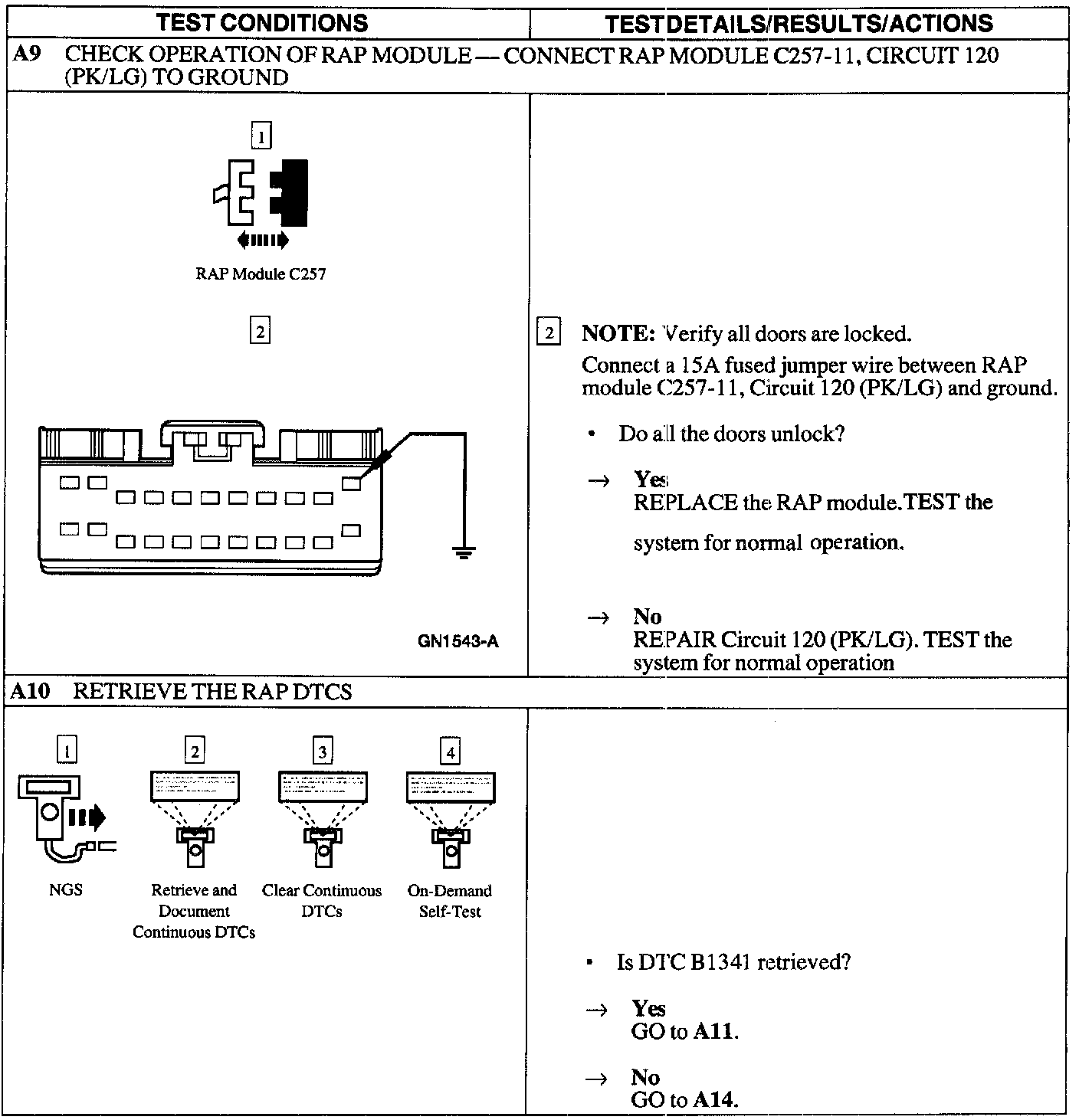

A9 - A10:

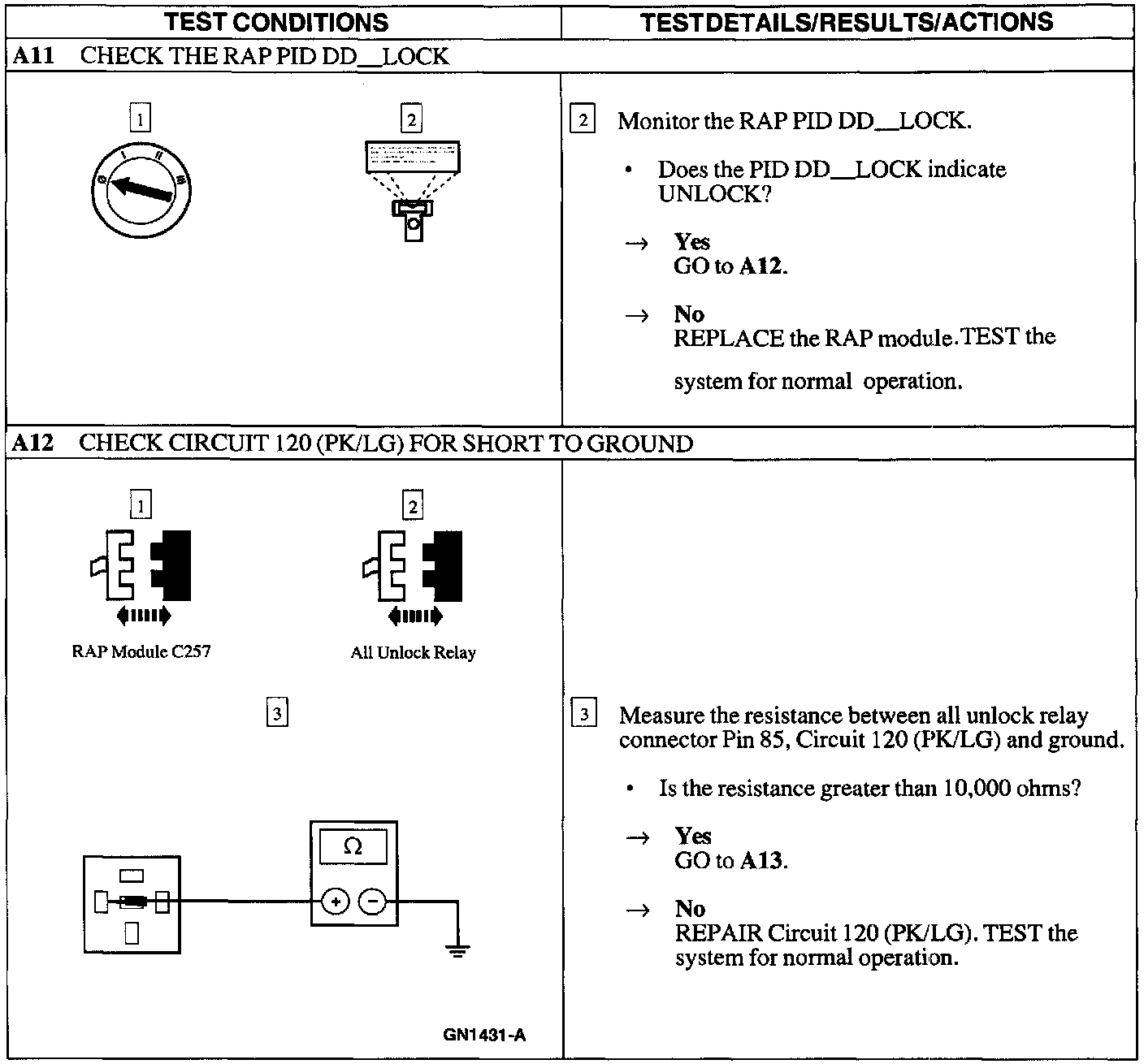

A11 - A12:

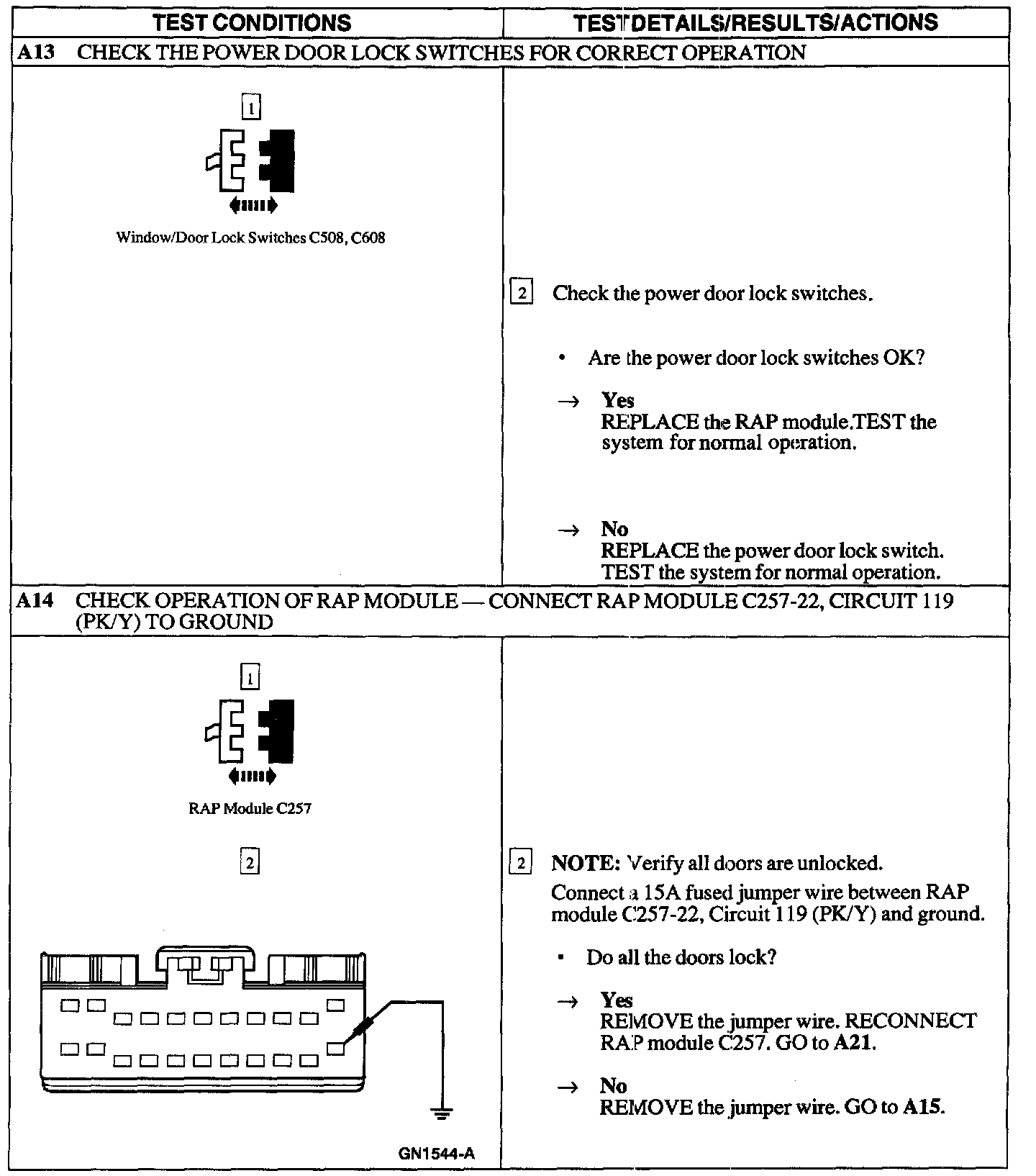

A13 - A14:

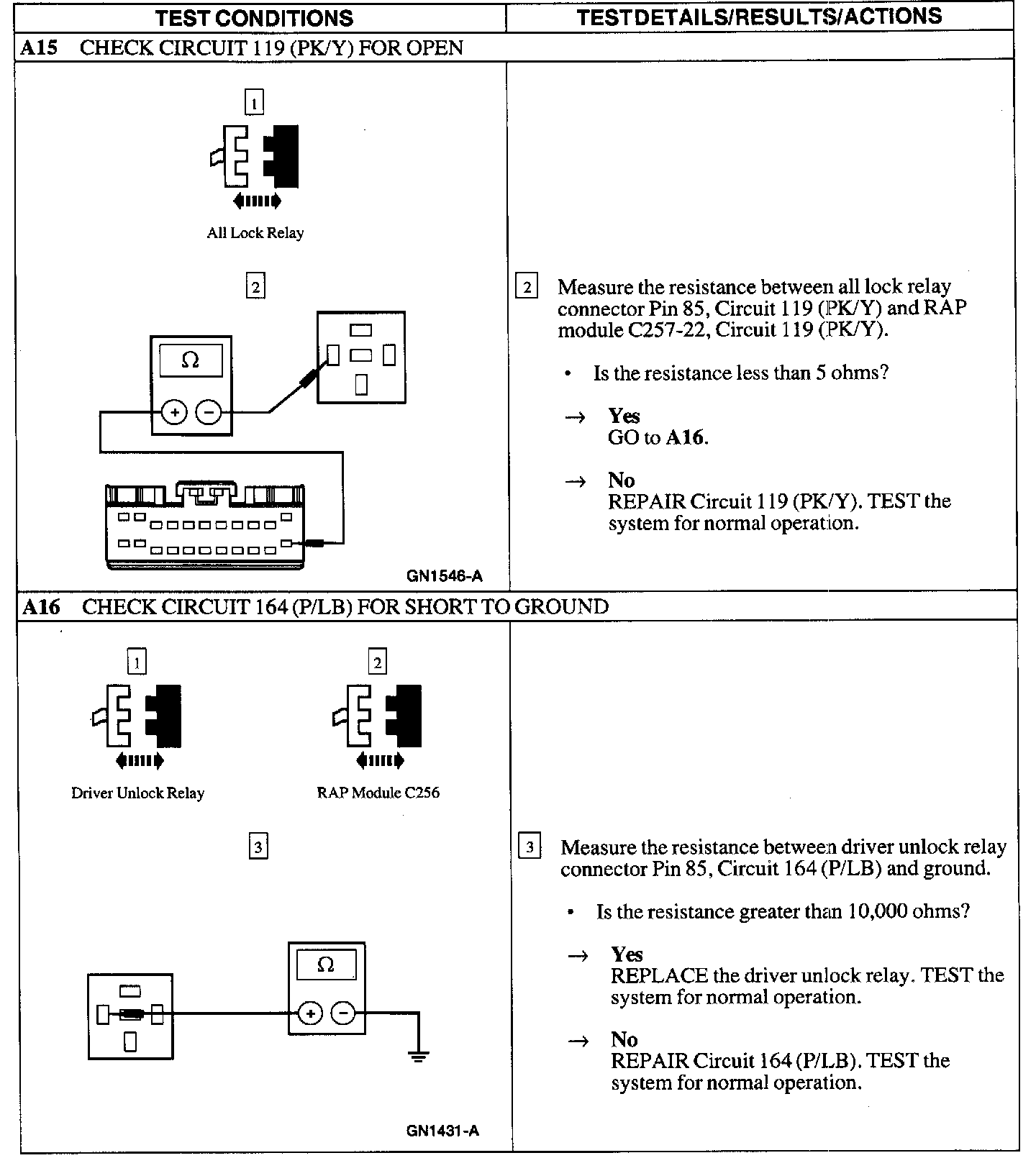

A15 - A16:

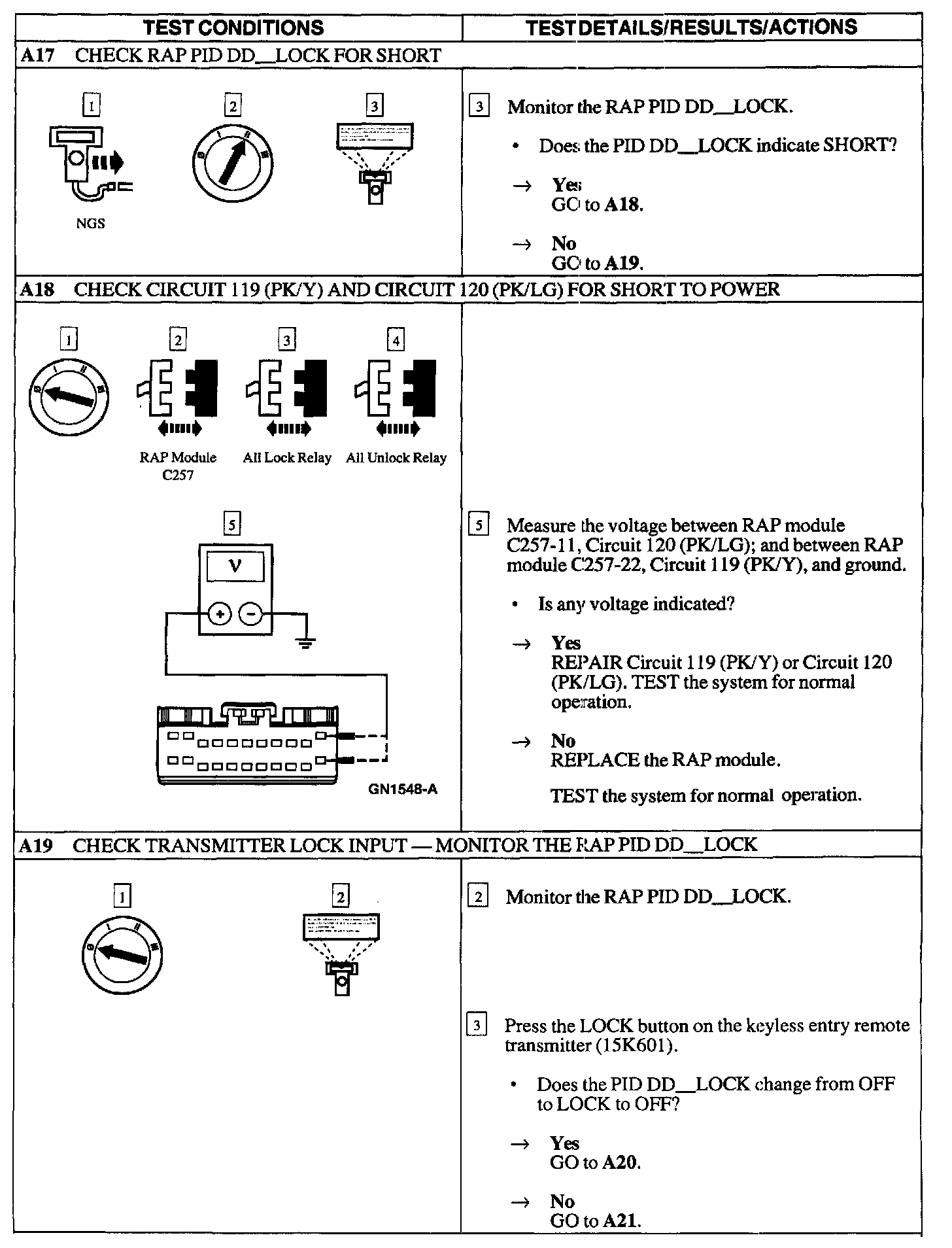

A17 - A19:

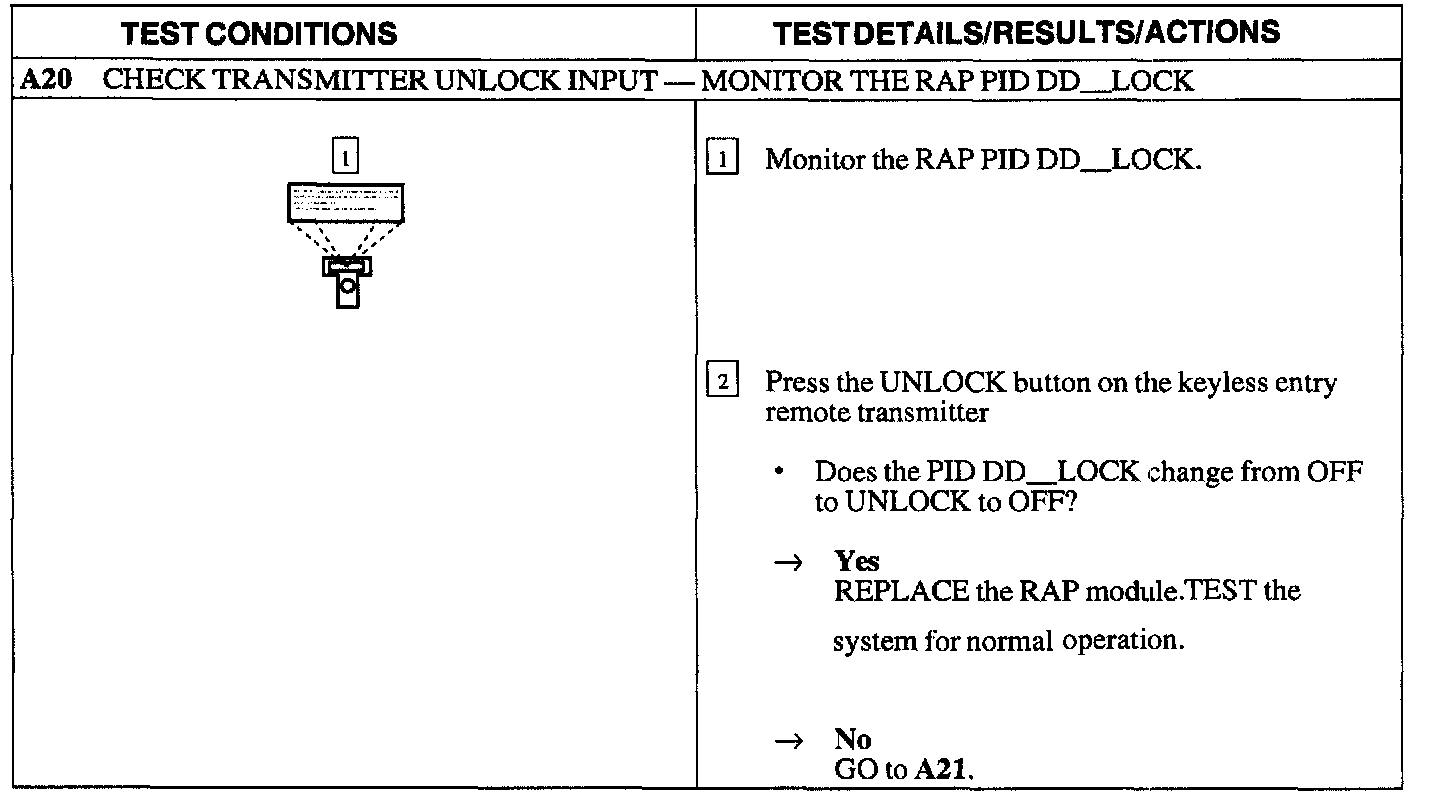

A20:

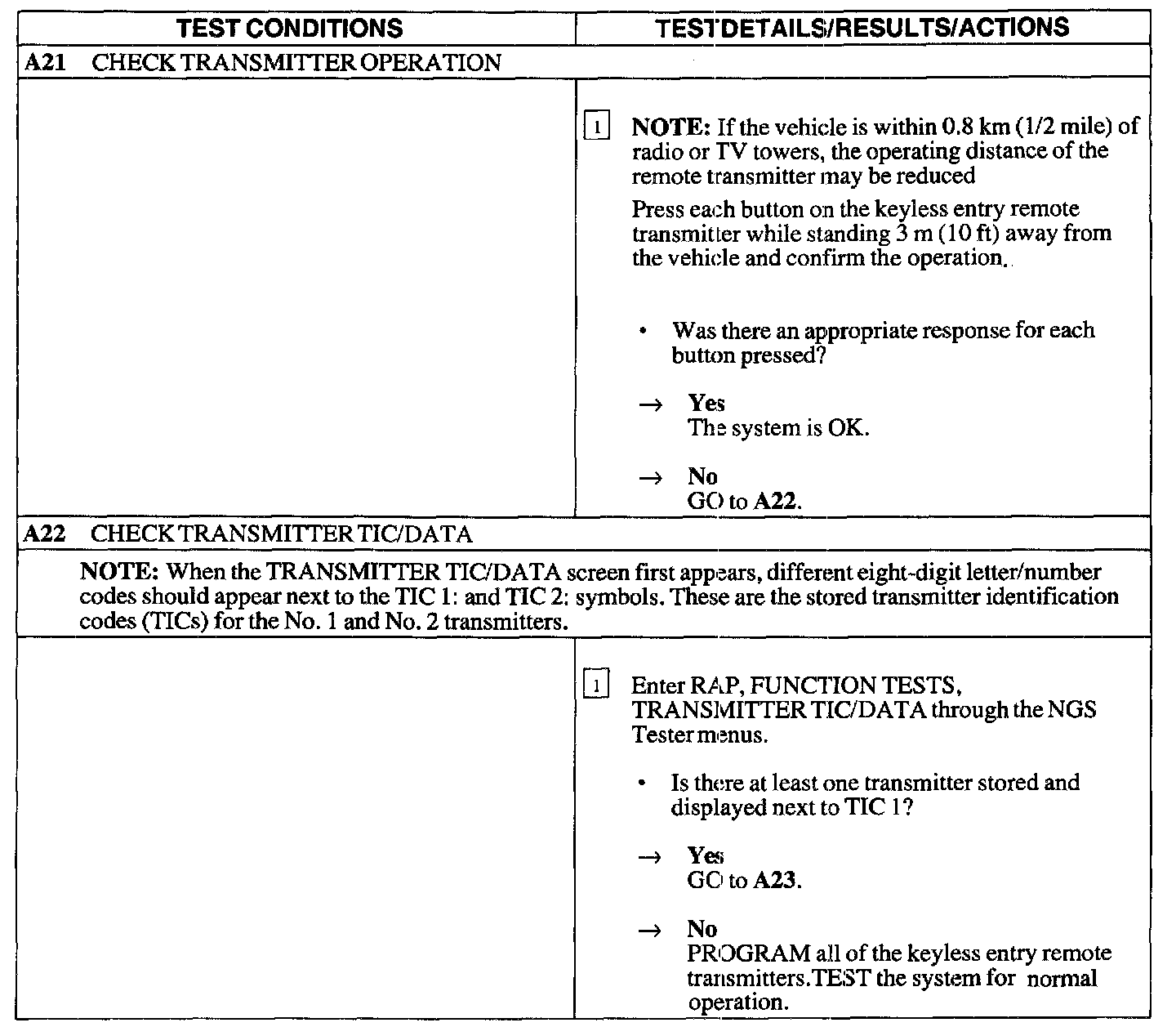

A21 - A22:

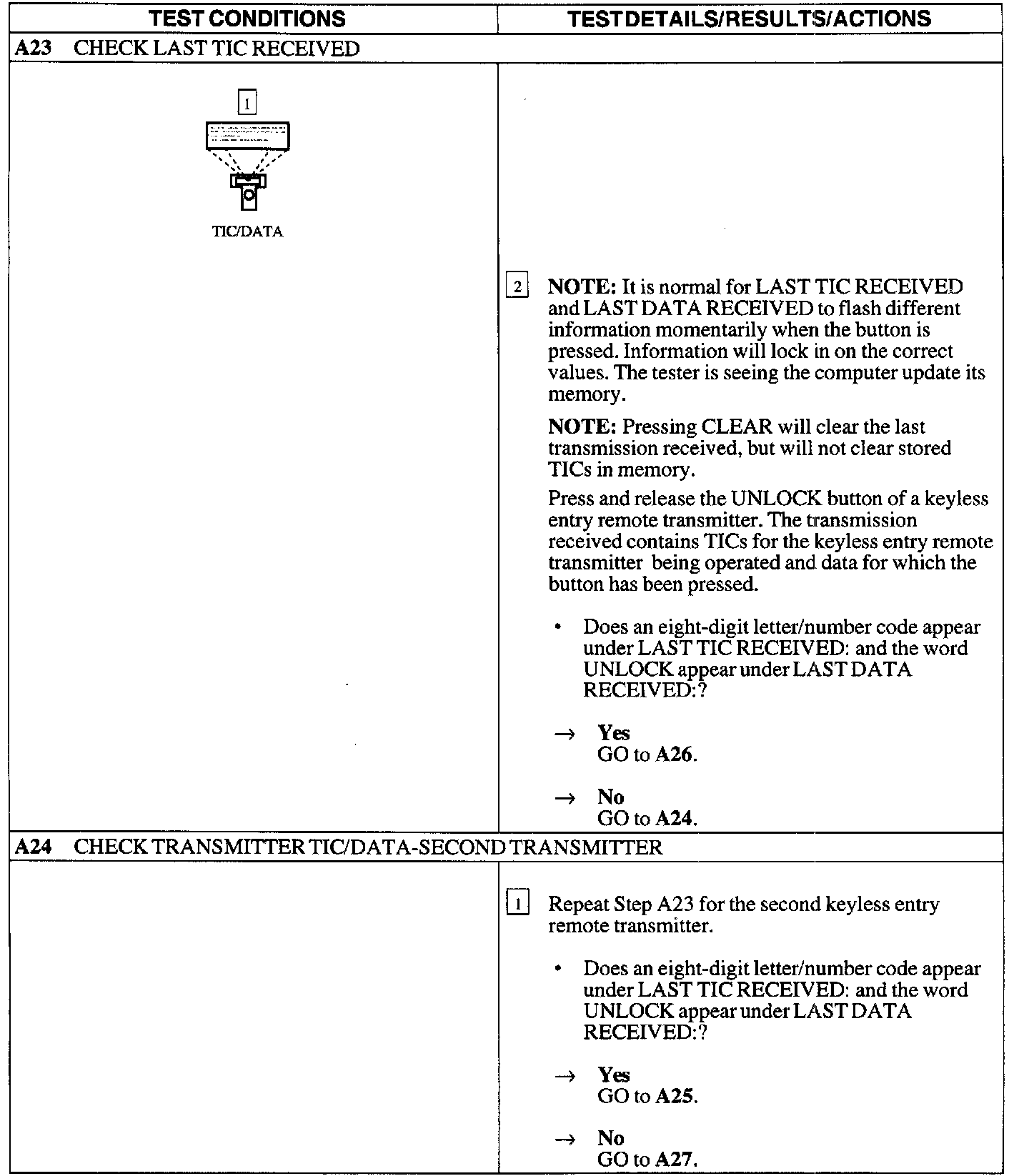

A23 - A24:

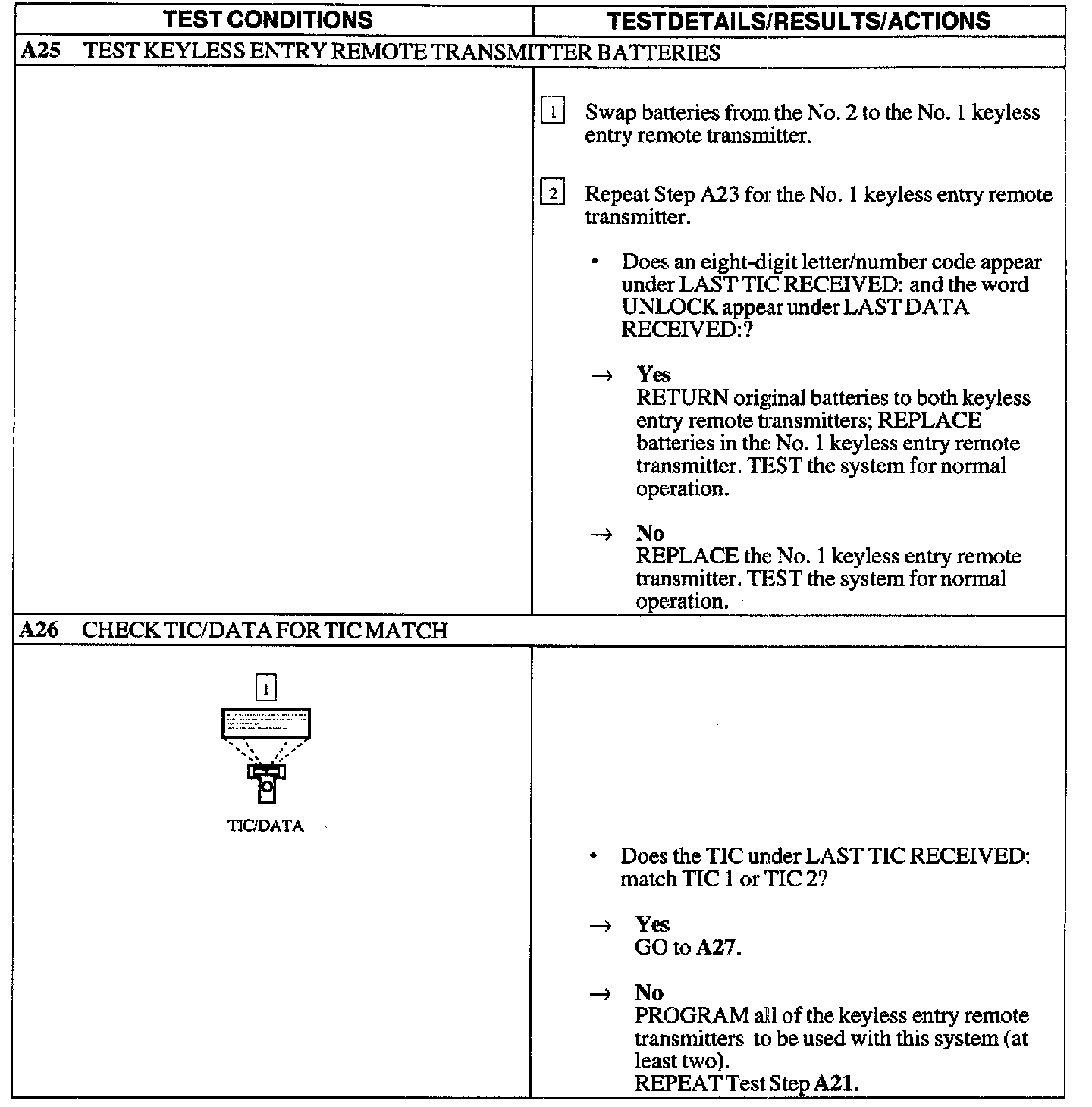

A25 - A26:

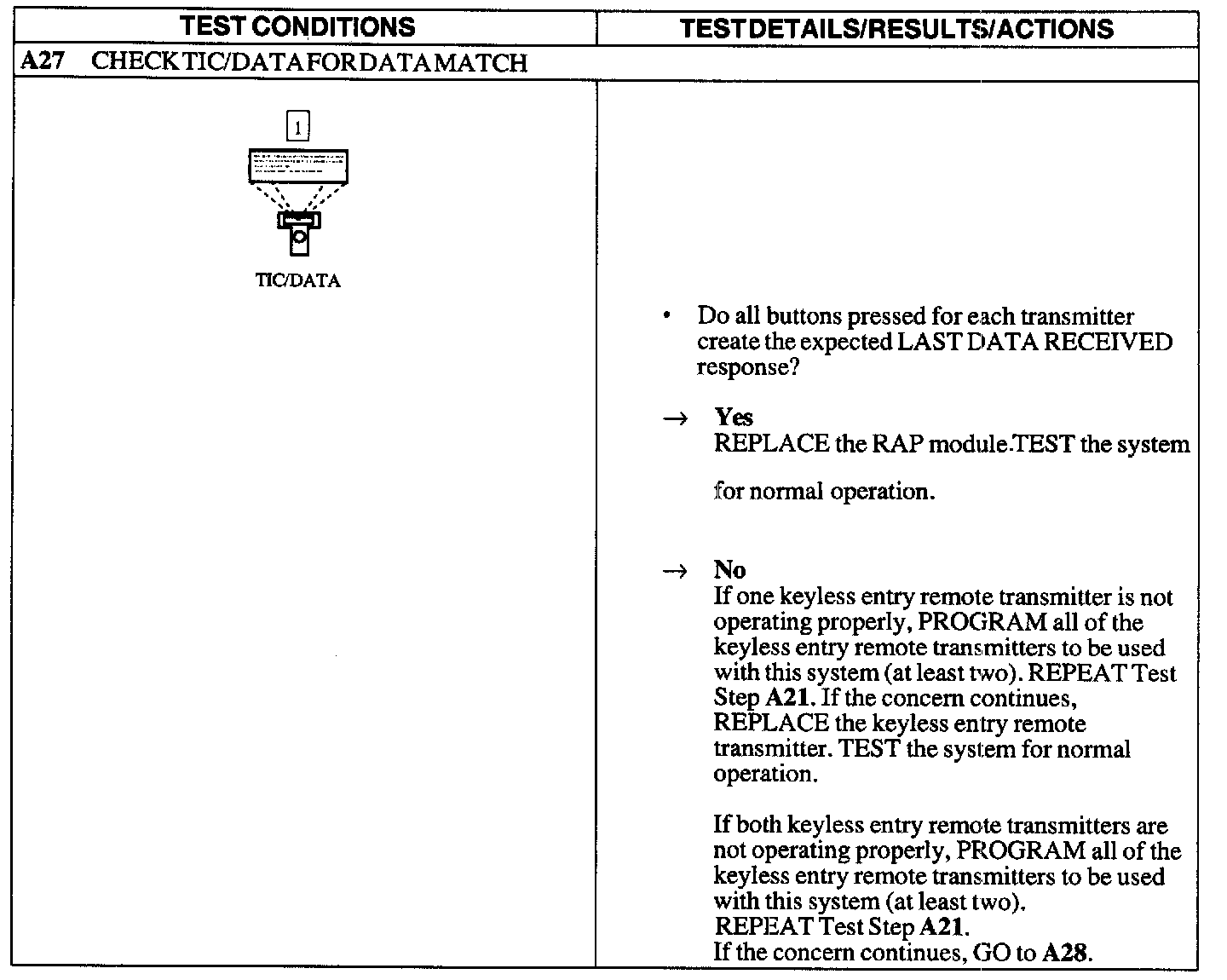

A27:

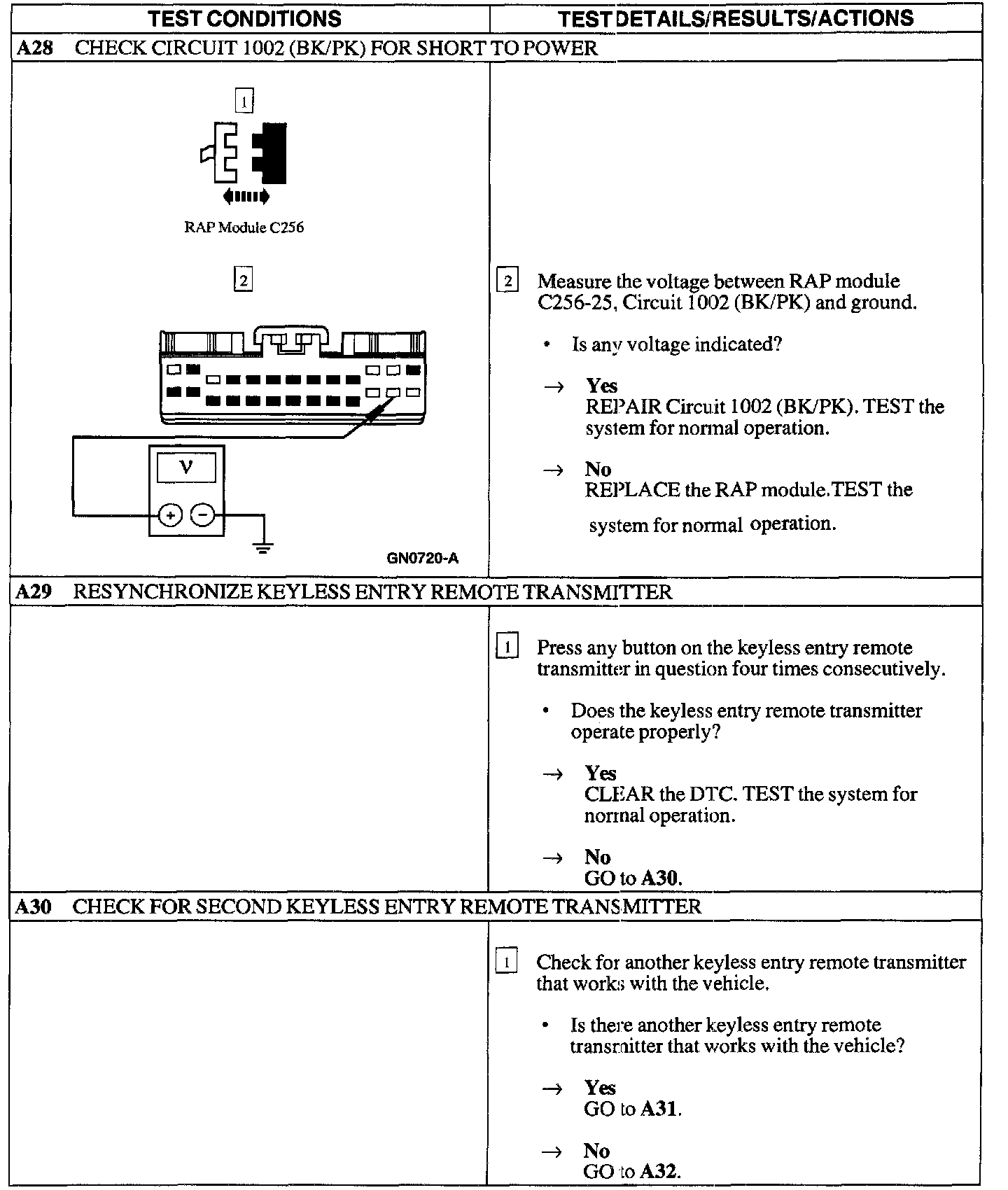

A28 - A29:

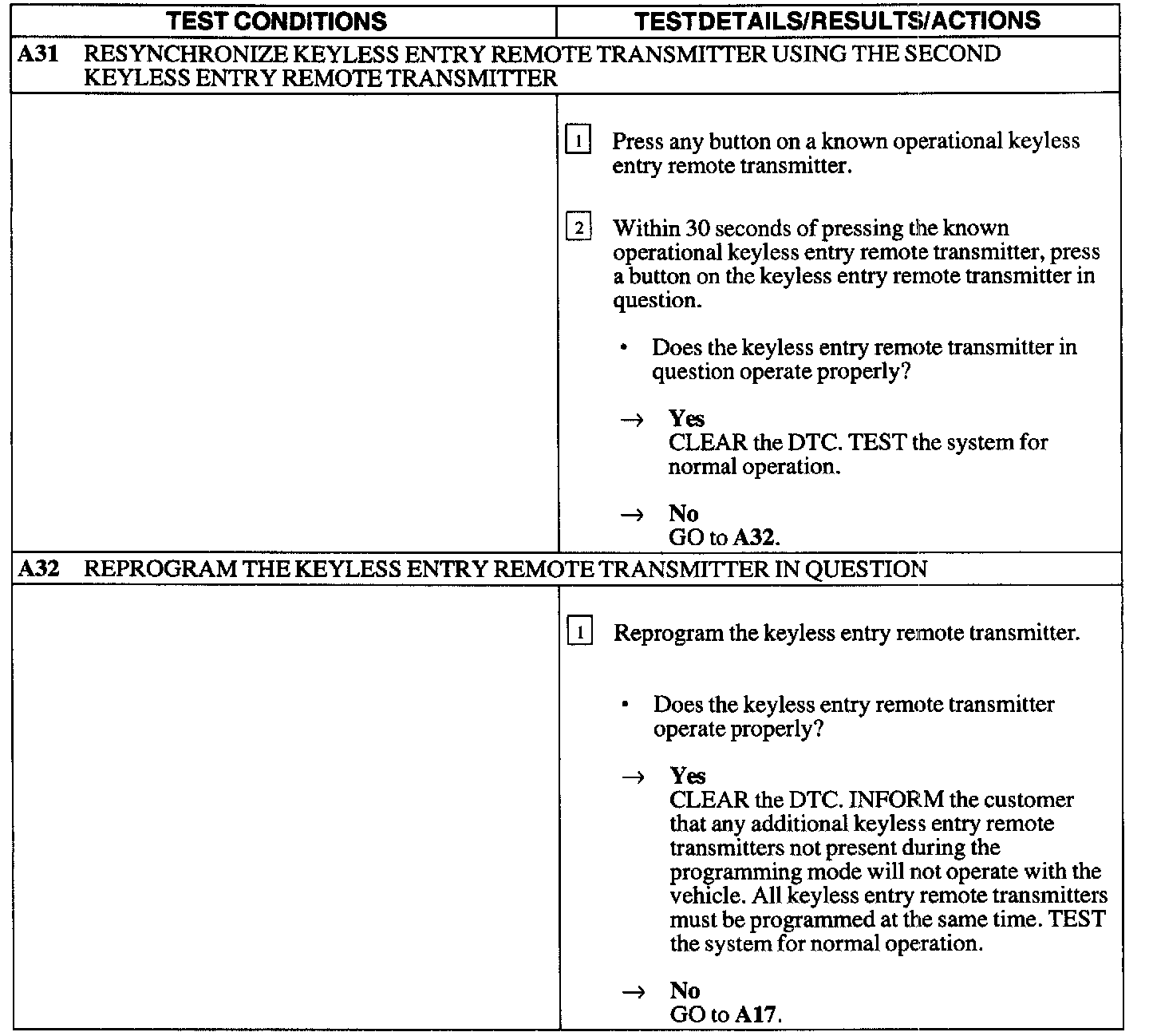

A31 - A32:
