Transmission Position Sensor/Switch: Testing and Inspection
1 Of 2:
2 Of 2:

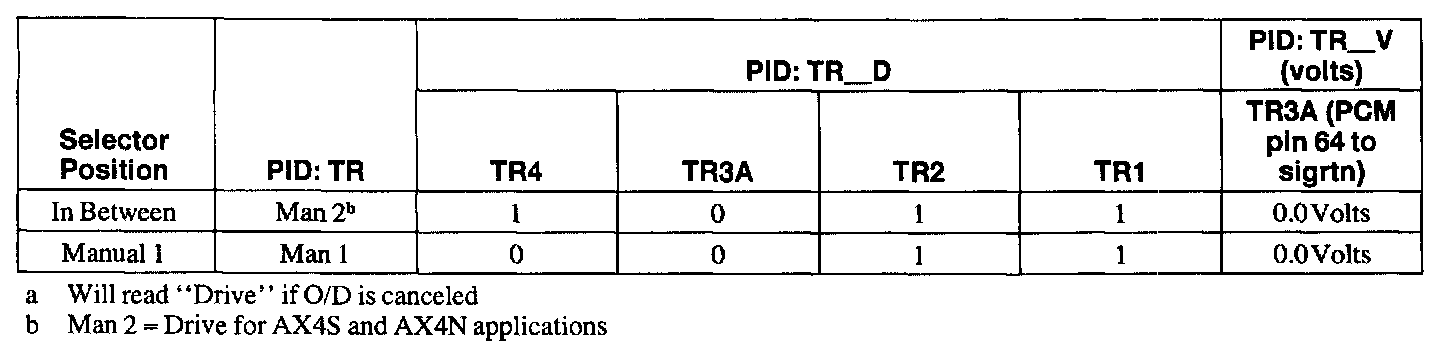

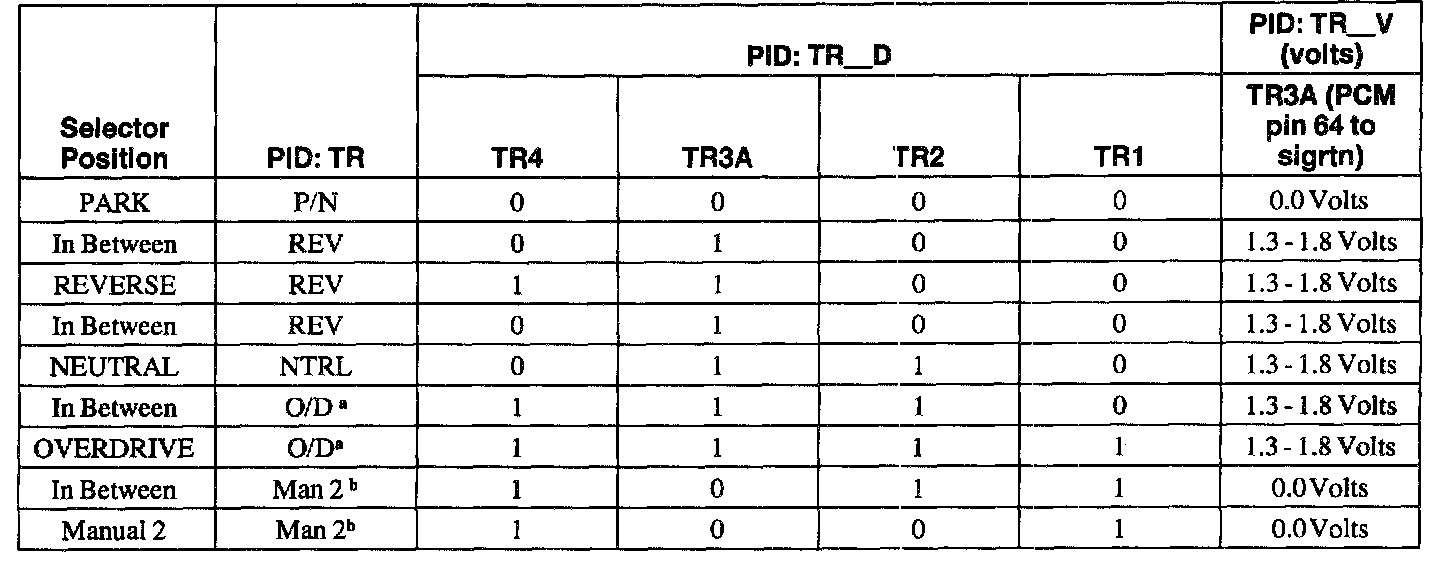

DIGITAL TRANSMISSION RANGE (TR) SENSOR DIAGNOSIS CHART
