Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1999
>>
Expedition 4WD V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

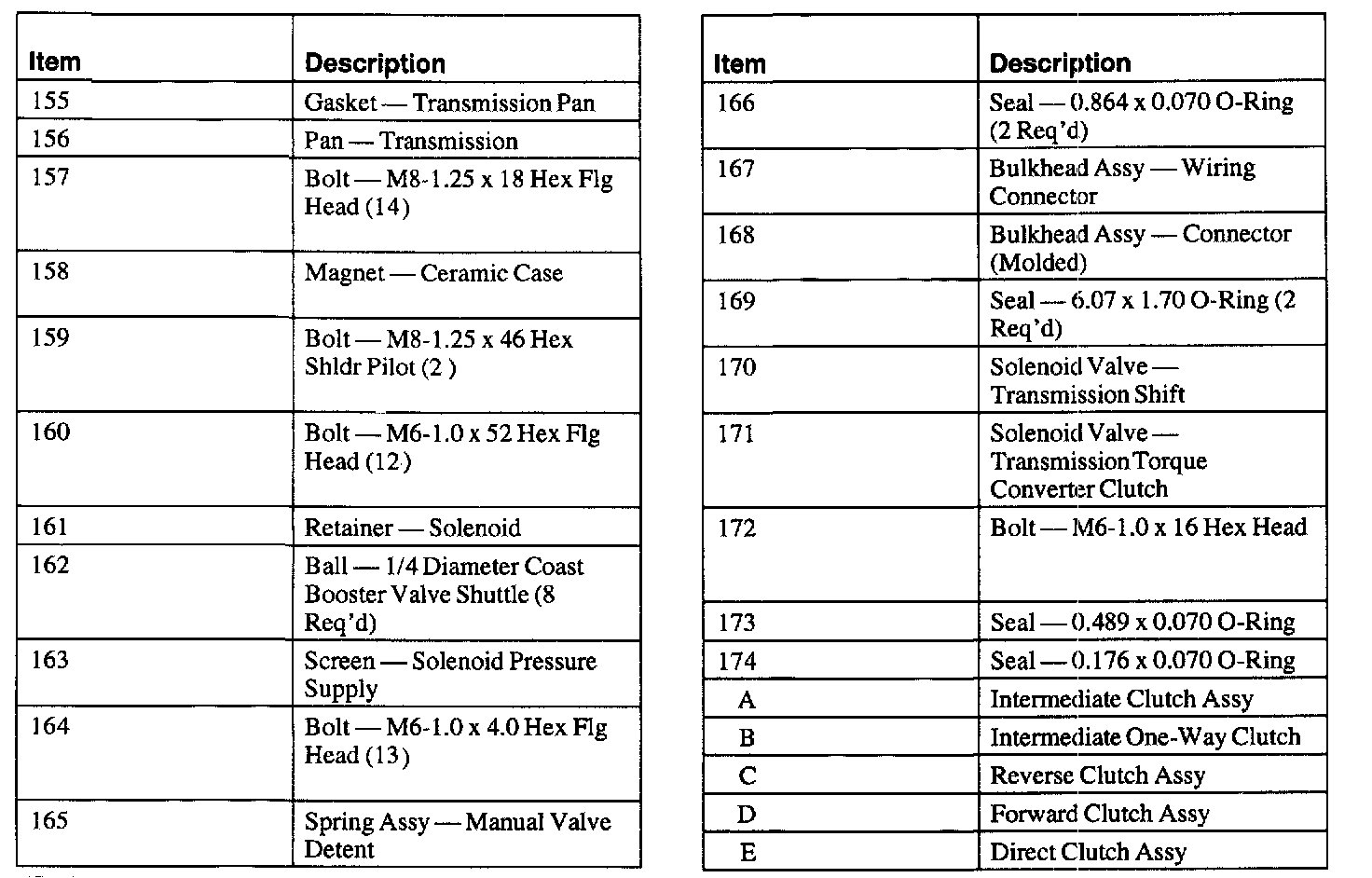

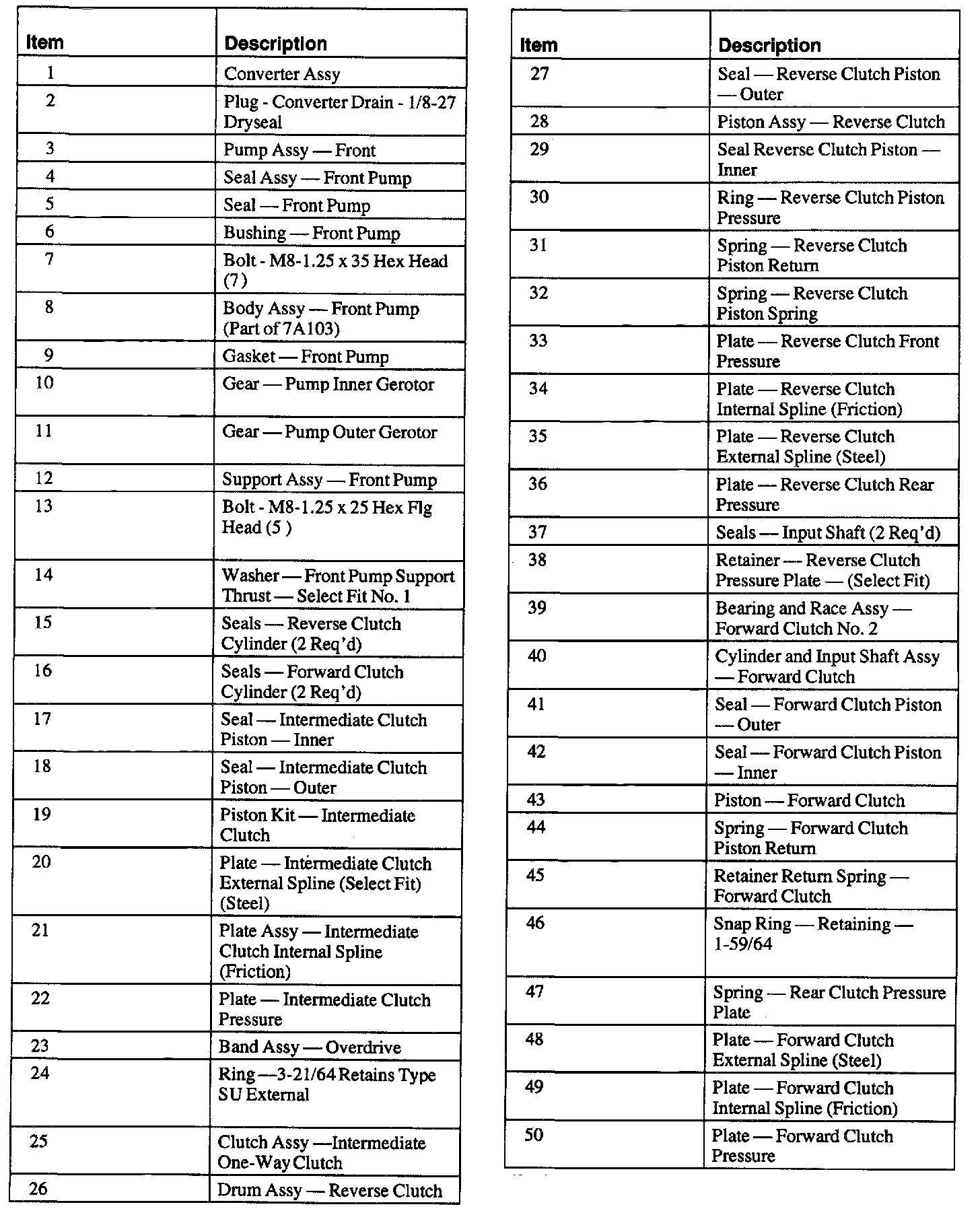

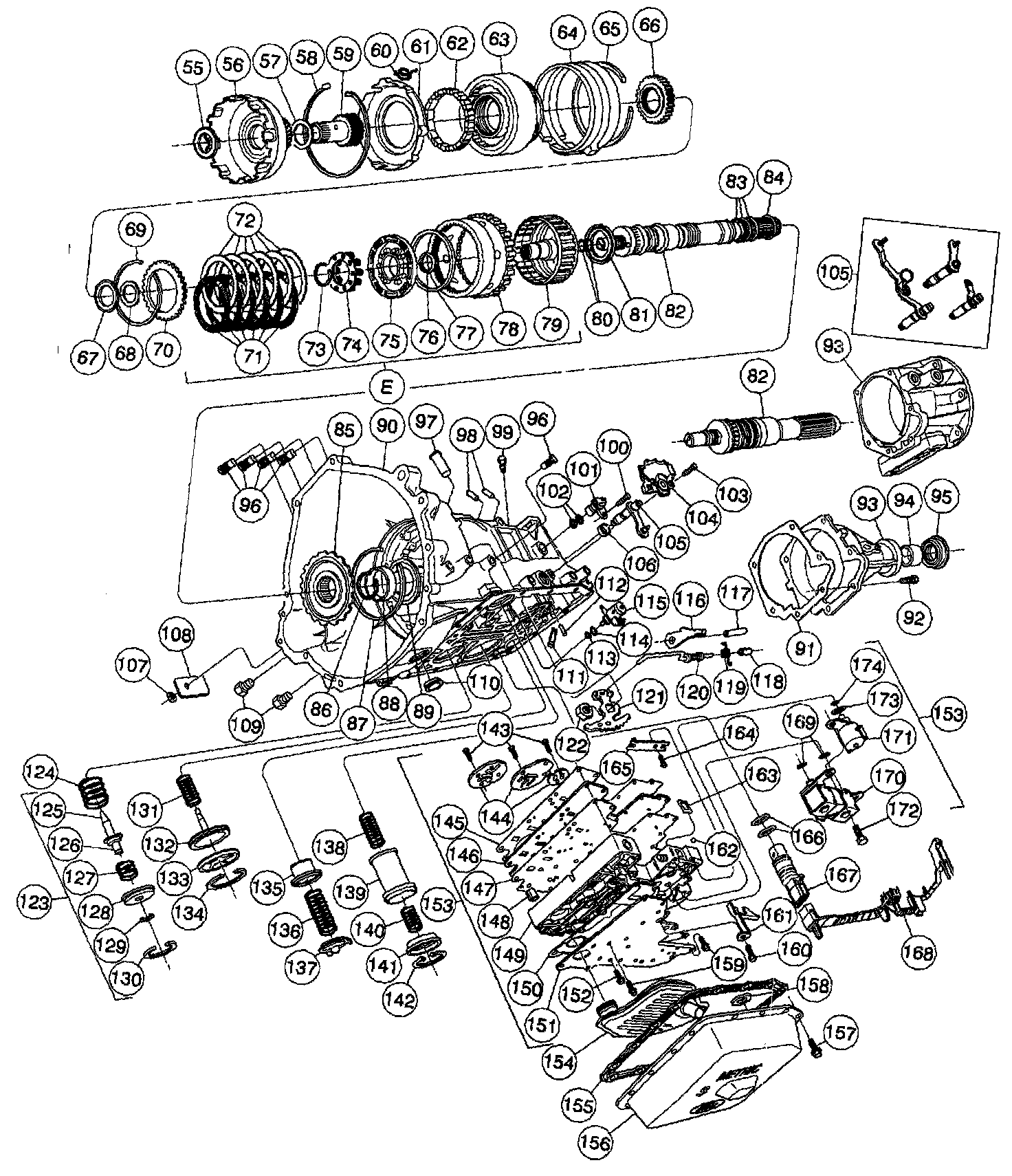

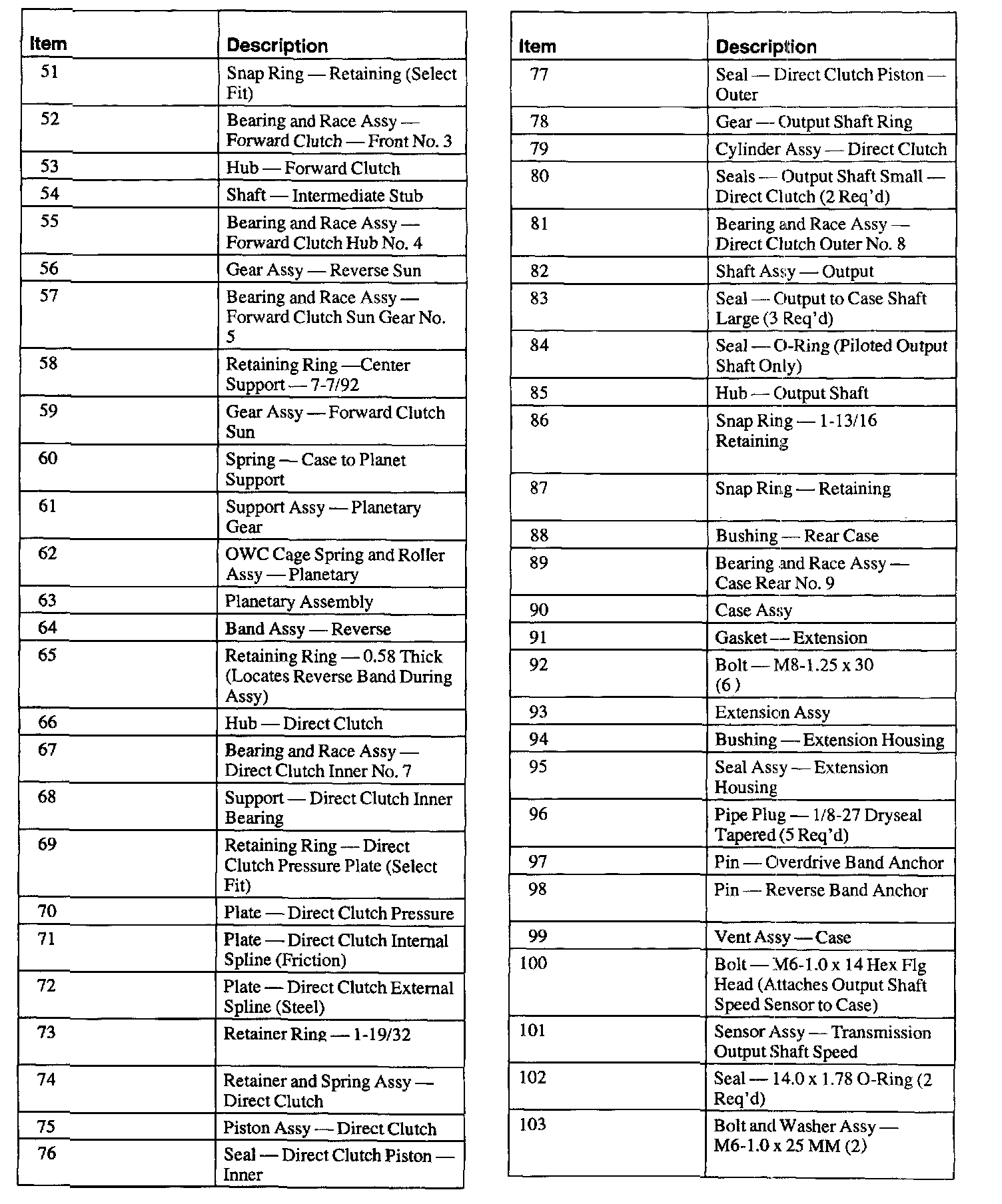

4R70W AUTOMATIC TRANSMISSION - DISASSEMBLED VIEW
