A: DTC B1249: Blend Door Failure
A: DTC B1249: Blend Door Failure
A1 - A2:
A3 - A4:

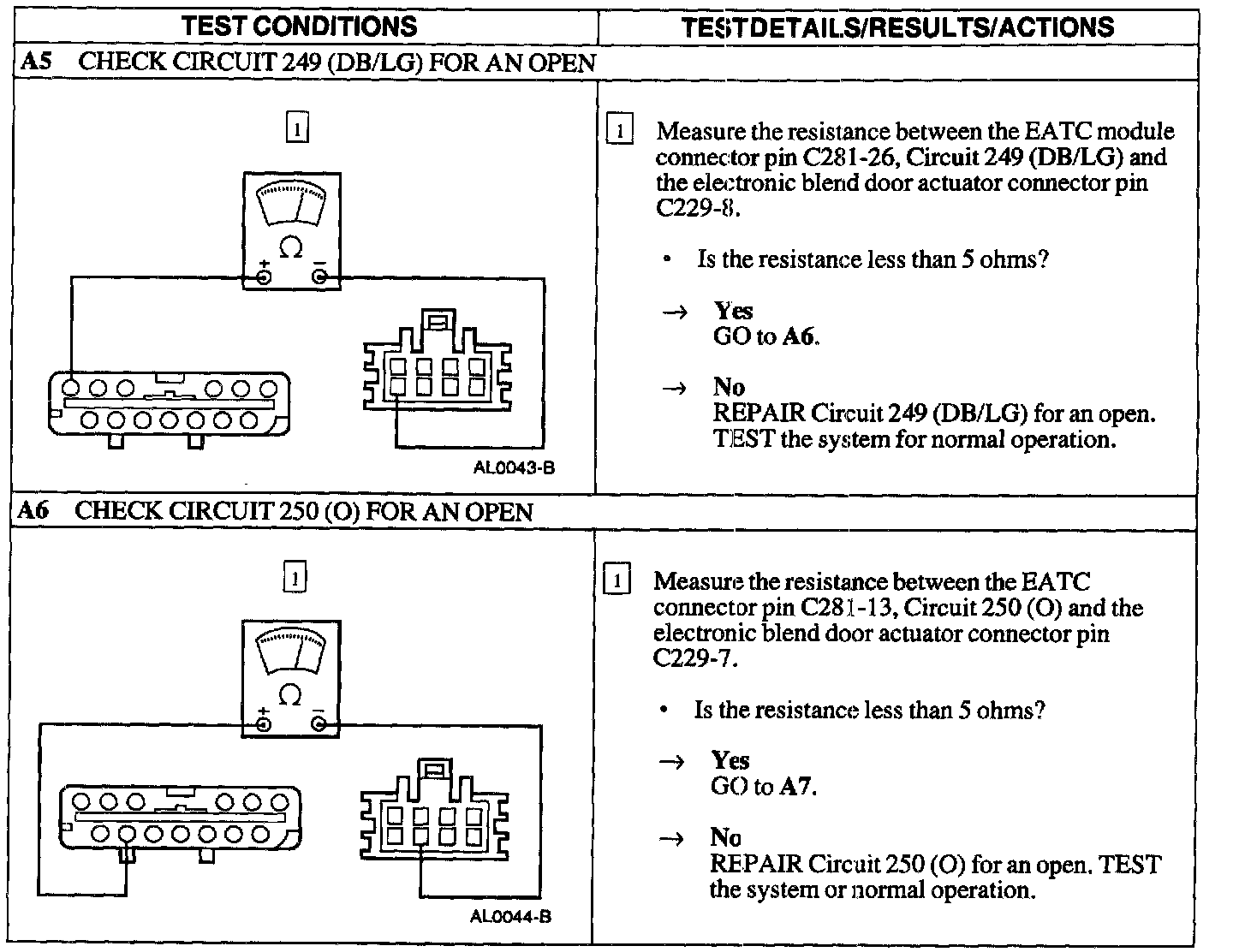

A5 - A6:
A7:
A8 - A9:
A10 - A12:
A13:
A14 - A15:

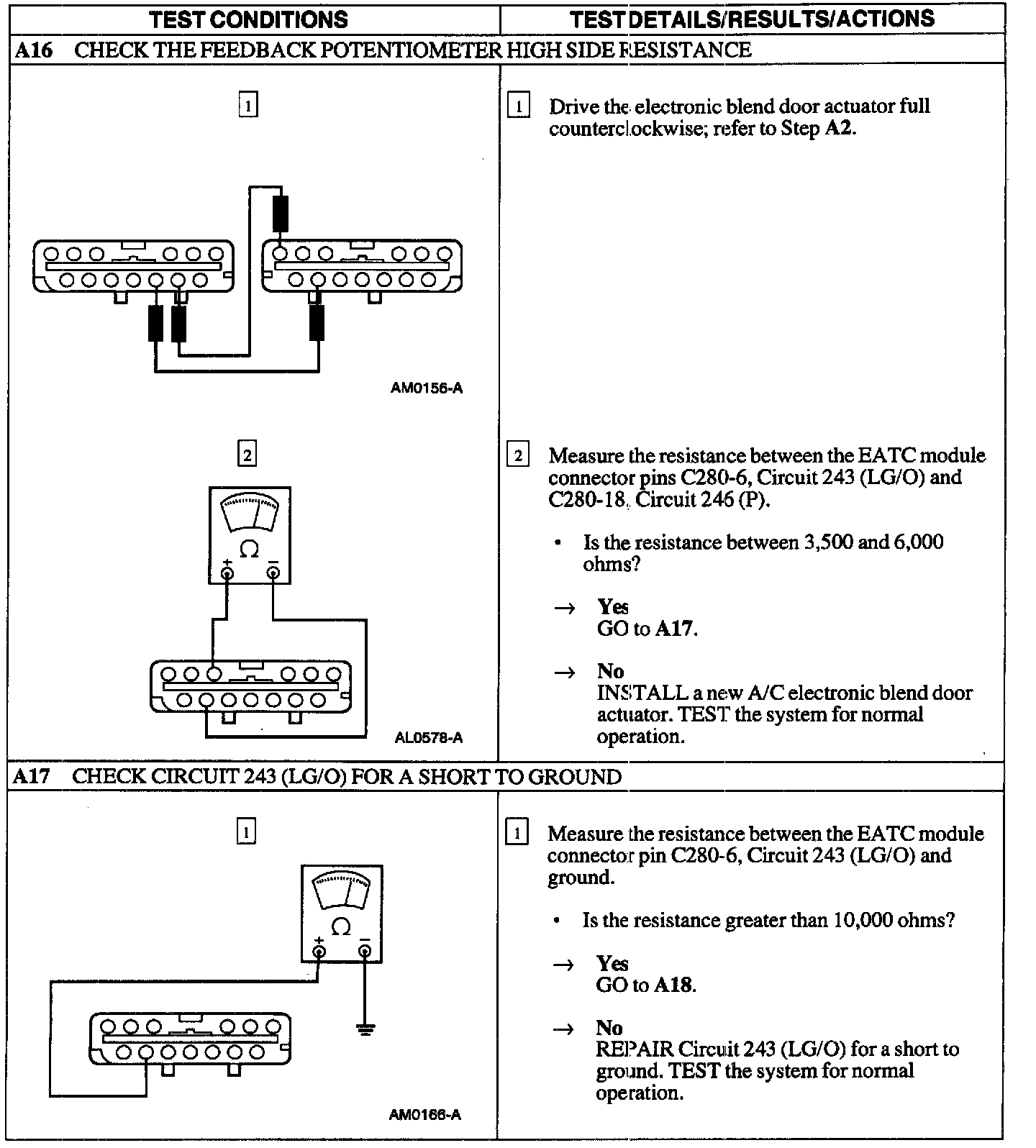

A16 - A17:
A18 - A19:
