Vehicle Speed Sensor
>>
Diagrams
>>
Connector Views
Connector Views

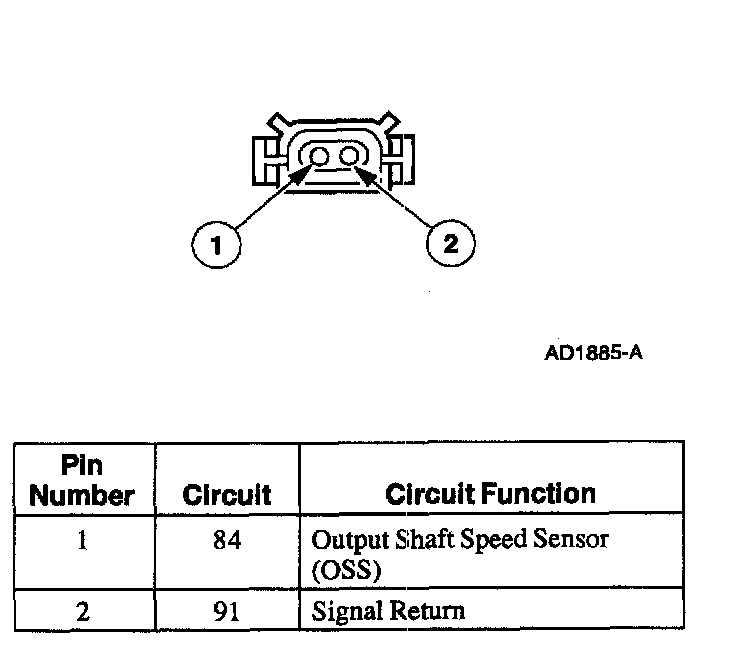

OUTPUT SHAFT SPEED SENSOR
(0SS) HARNESS CONNECTOR
