Throttle Position Sensor: Service and Repair

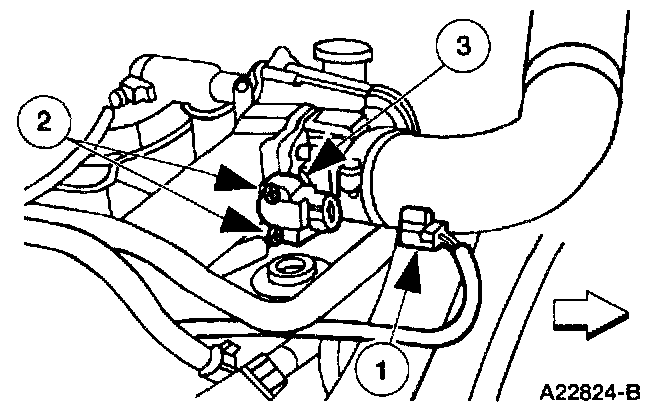

REMOVAL
1. Disconnect the battery ground cable.







2. Remove the throttle position sensor.
1 Disconnect the electrical connector
2 Remove the screws.
3 Remove the throttle position sensor.

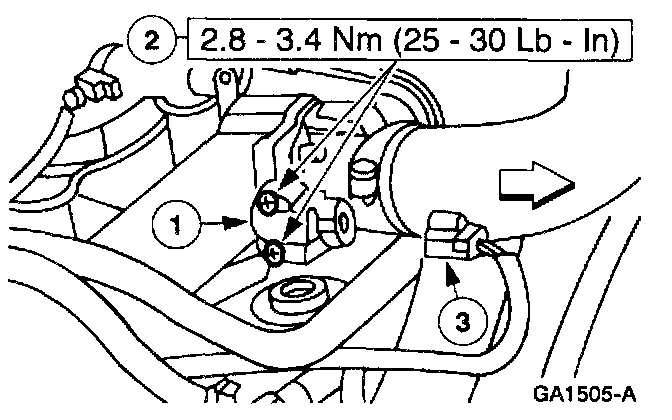

INSTALLATION







1. Follow the removal procedure in reverse order.
