Knock Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.







2. Remove the Knock sensor.

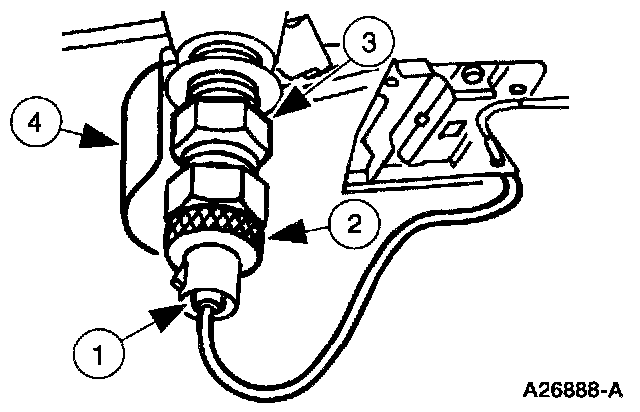

1 Disconnect the connector.
2 Remove the knock sensor.
3 Remove the adapter.
4 Remove the heat shield.

INSTALLATION

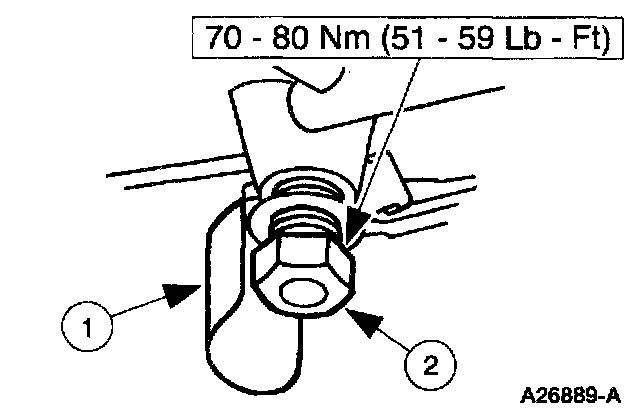

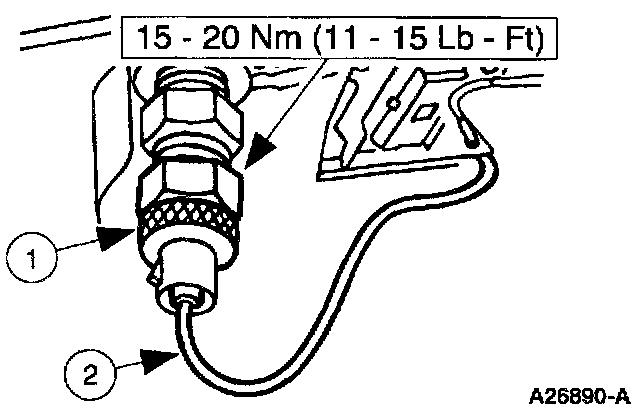

1. Follow the removal procedure in reverse order.
