Shift Solenoid Operation Chart

SHIFT SOLENOID PRE-DIAGNOSIS

Solenoid Operation Chart:

Use the following shift solenoid operation information when performing Pinpoint Test A. A: Shift Solenoids

EC = Electronically Controlled.
HD = Hydraulically Disabled.

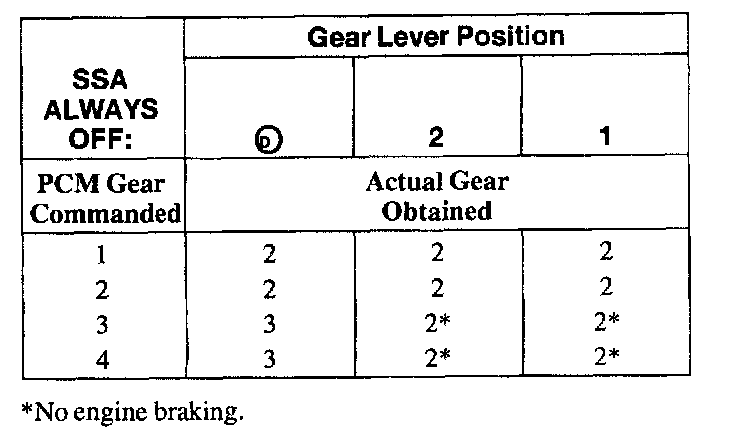

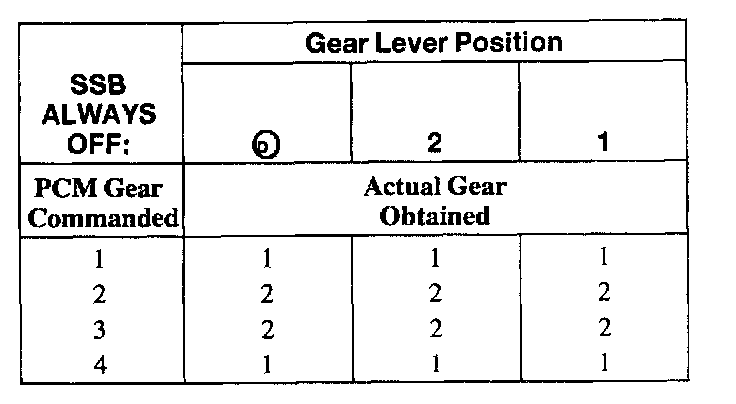

SHIFT SOLENOID FAILURE MODE CHART "ALWAYS OFF"








Failed off due to and/or vehicle wiring concerns, electrically or hydraulically stuck off.

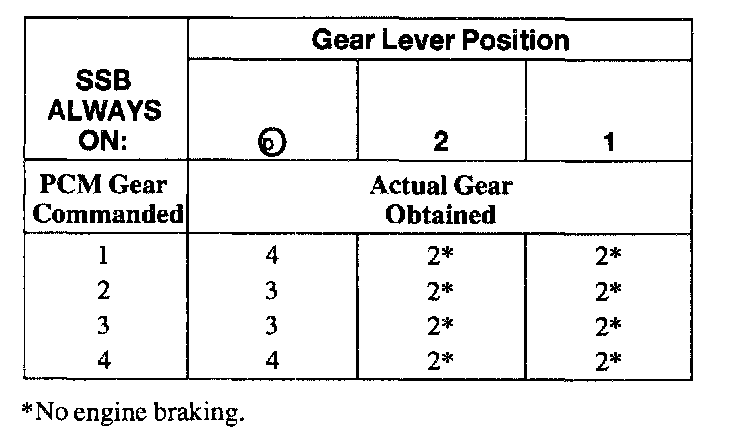

SHIFT SOLENOID FAILURE MODE CHART "ALWAYS ON"








Failed on due to and/or vehicle wiring concerns, electrically or hydraulically stuck on.
