Transmission Connector Layouts

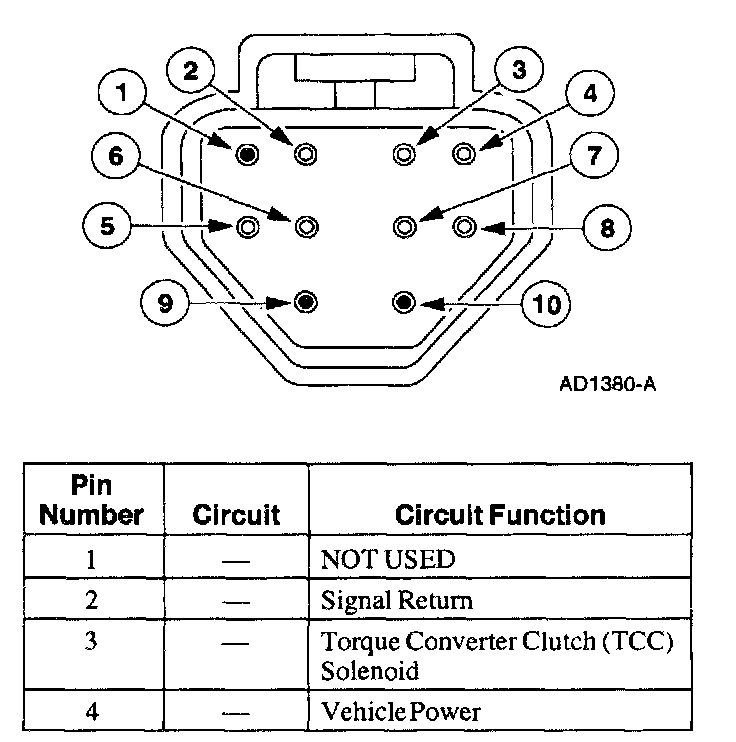

Transmission Vehicle Harness Connector (Part 1 Of 2):

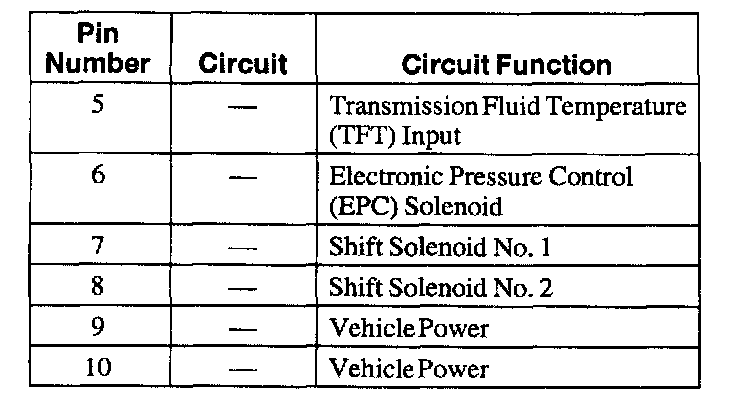

Transmission Vehicle Harness Connector (Part 2 Of 2):

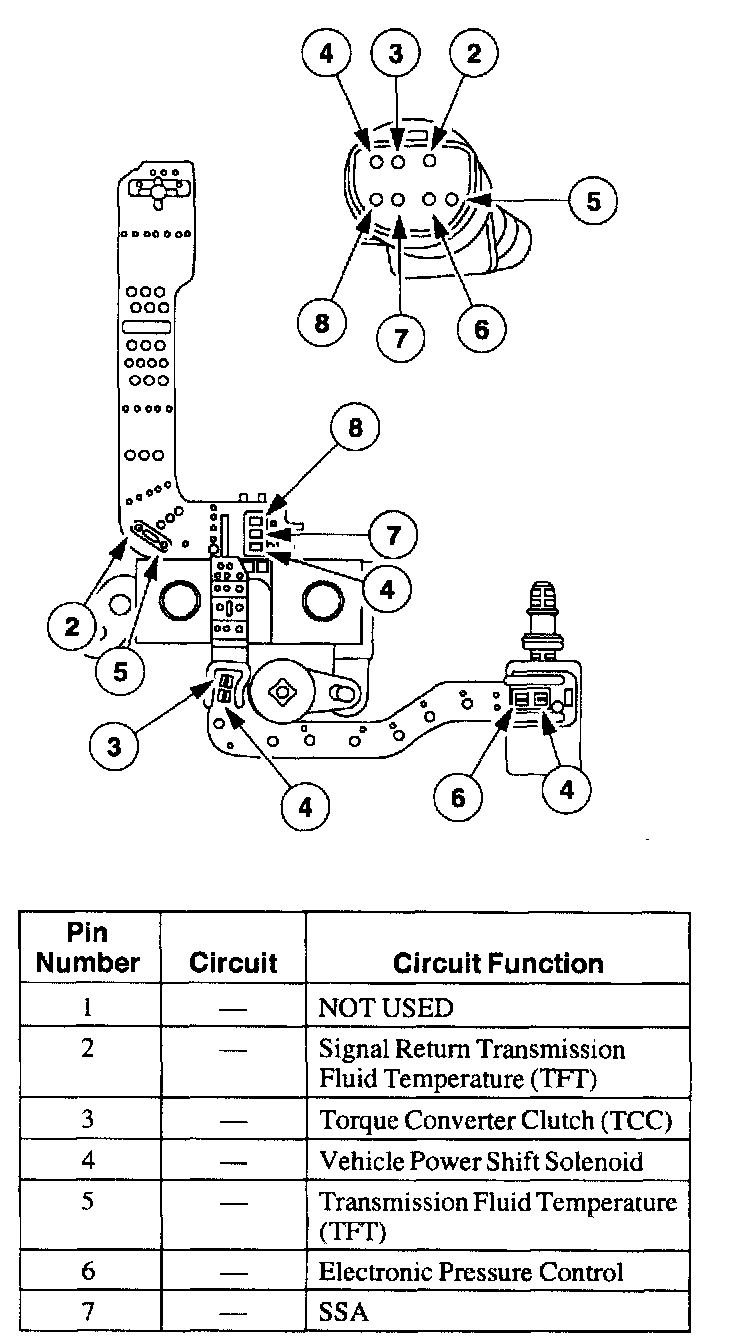

Transmission Internal Harness Connector (Part 1 Of 2):

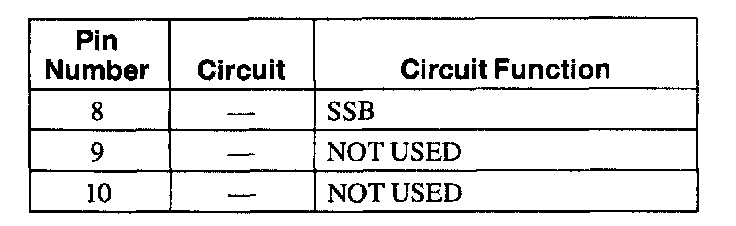

Transmission Internal Harness Connector (Part 2 Of 2):

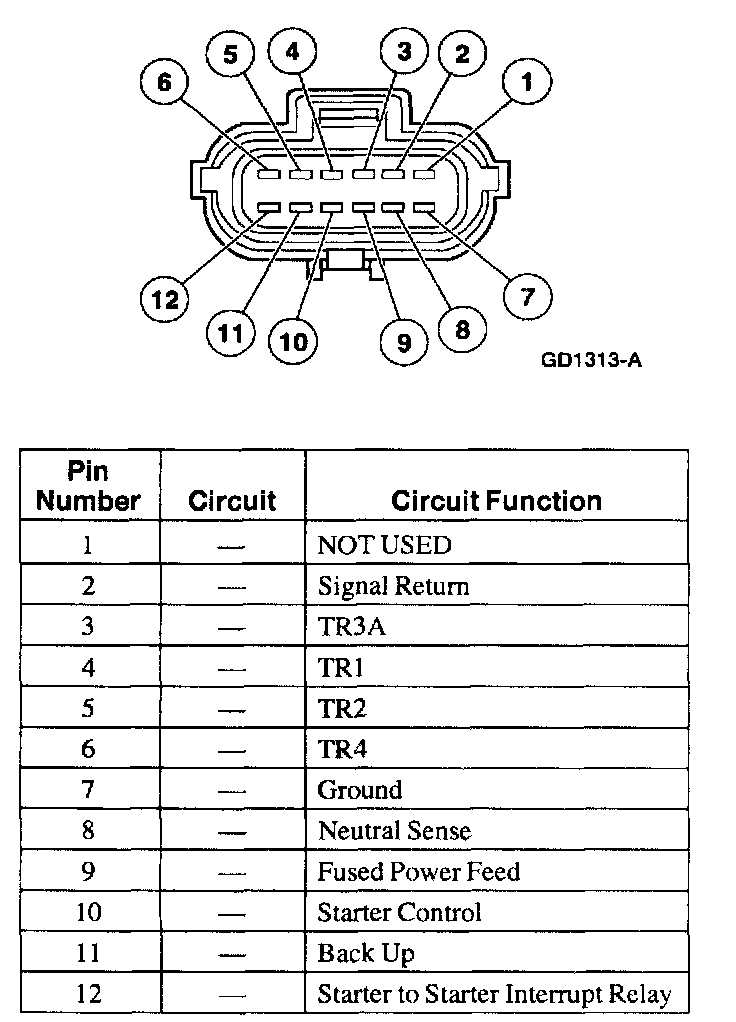

Digital Transmission Range Sensor Connector:

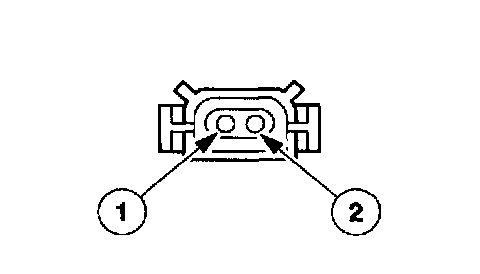

Output Shaft Speed Sensor Harness Connector (Part 1 Of 2):

Output Shaft Speed Sensor Harness Connector (Part 2 Of 2):
