I DTC C1230 Anti-Lock Brake Sensor Resistance at EHCU Connector
I DTC C1230 Anti-Lock Brake Sensor Resistance at EHCU Connector

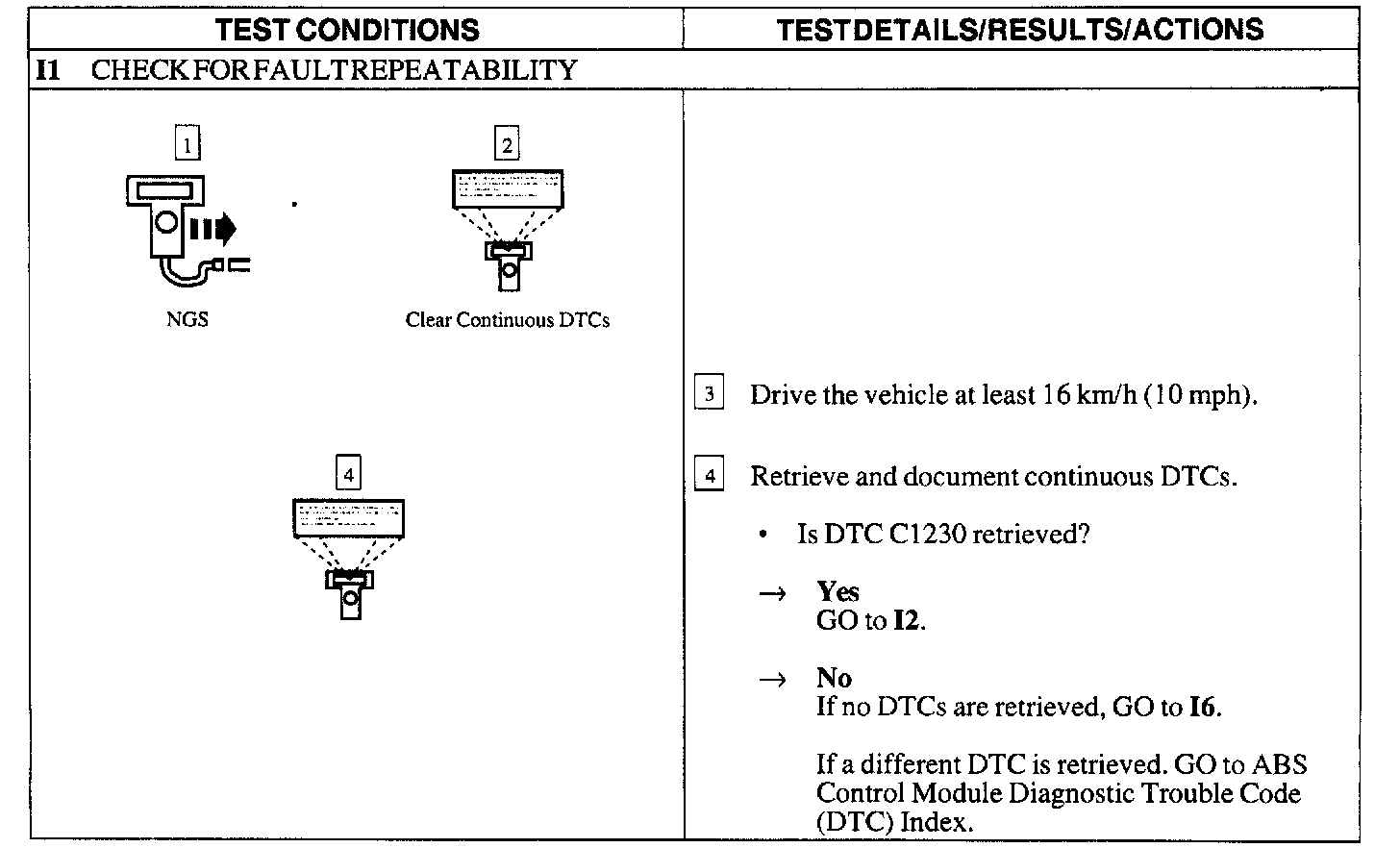

Test I1:
Test I2:

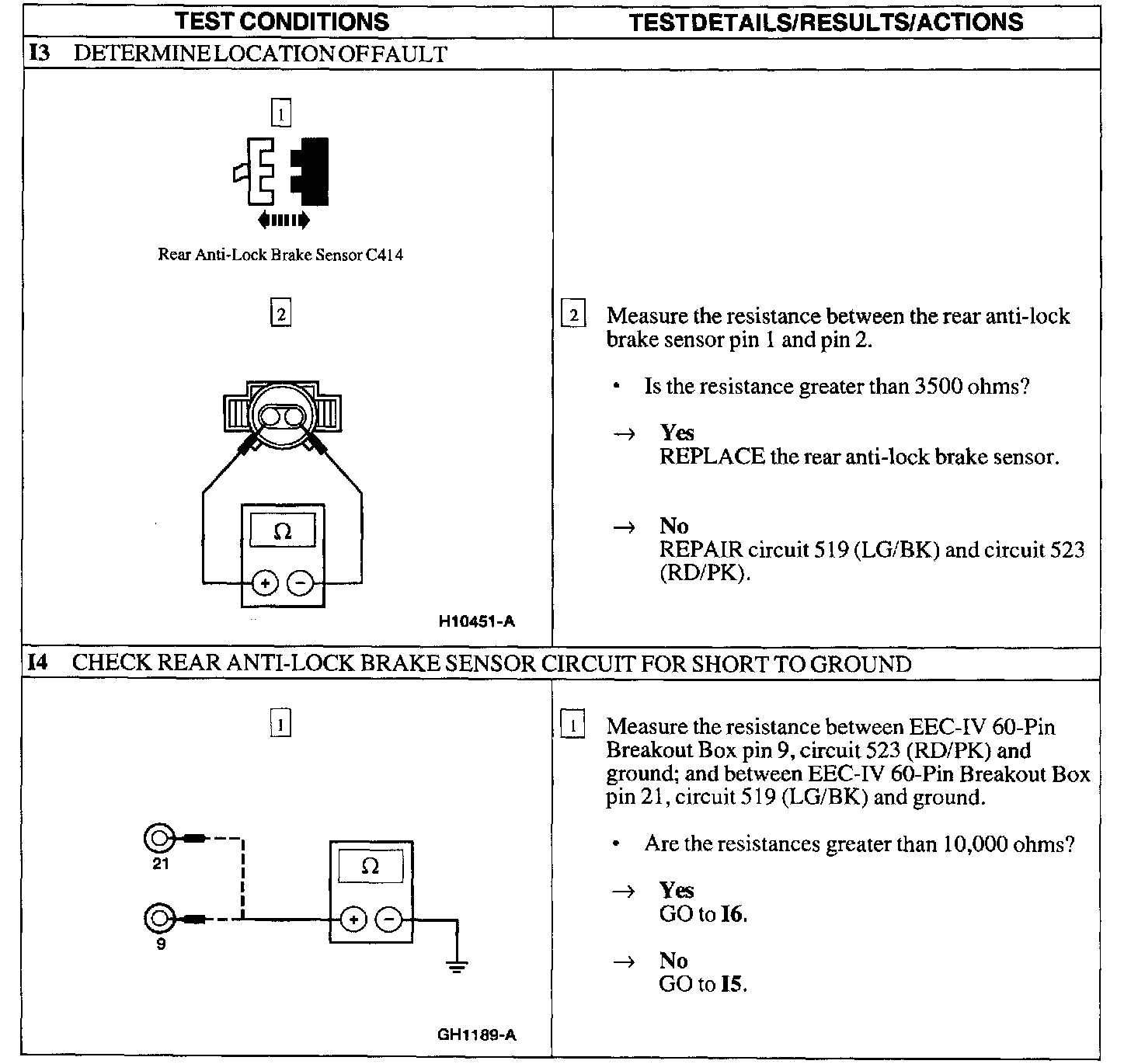

Test I3 - I4:
Test I5 - I6:
