4R100

Removal
1. Raise and support the vehicle.





2. Remove the front skid plate.
1 Remove the bolts.
2 Remove the front skid plate.





3. Remove the lower air deflector.
1 Remove the bolts.
2 Remove the lower air dam.

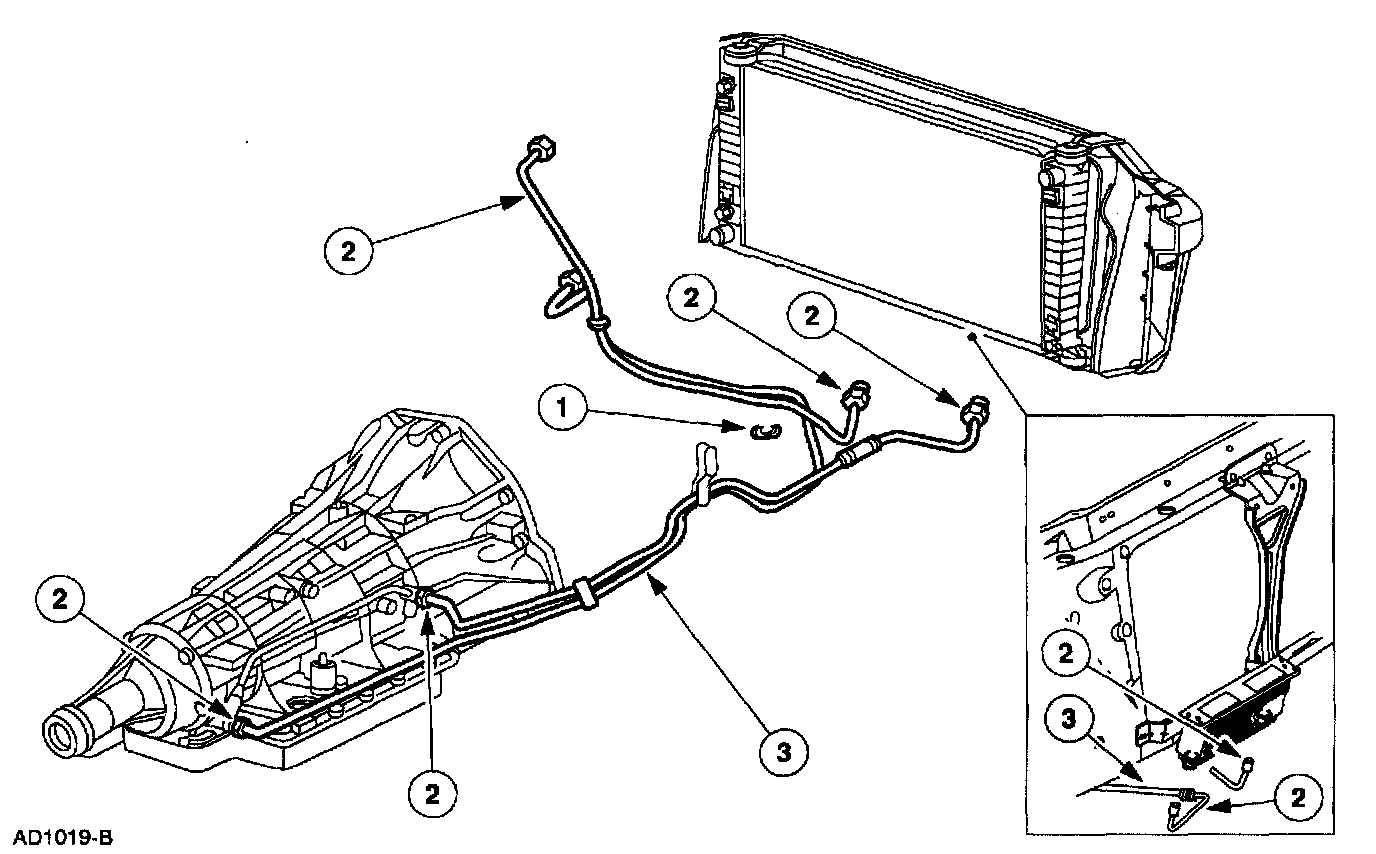

4. Remove the damaged transmission fluid cooler tube.
1 Remove the three clips.
2 Disconnect the tube fittings.
3 Remove the transmission fluid cooler tube.





5. NOTE: Note the differences in tube routing between vehicles with a transmission auxiliary fluid cooler and vehicles without an auxiliary fluid cooler.

Remove the damaged transmission fluid cooler tube.
1 Remove the three clips.
2 Disconnect the tube fittings.
3 Remove the transmission fluid cooler tube.


Installation





1. NOTE: Note the differences in tube routing between vehicles with a transmission auxiliary fluid cooler and vehicles without an auxiliary fluid cooler.

Install the transmission fluid cooler tubes.
1 Position the transmission fluid cooler tube.
2 Connect the tube fittings.
3 Install the clips.
2. Install the transmission fluid cooler tube.





3. Install the lower air deflector.
1 Position the deflector.
2 Install the bolts.





4. Install the front skid plate.
- Install the bolts.

5. NOTE: If equipped with air suspension, reactivate the system by turning on the air suspension switch.

Lower the vehicle.

6. Fill transmission fluid to the proper level and inspect for leaks.
