Input Shaft and Bearing

Special Tools:

Disassembly

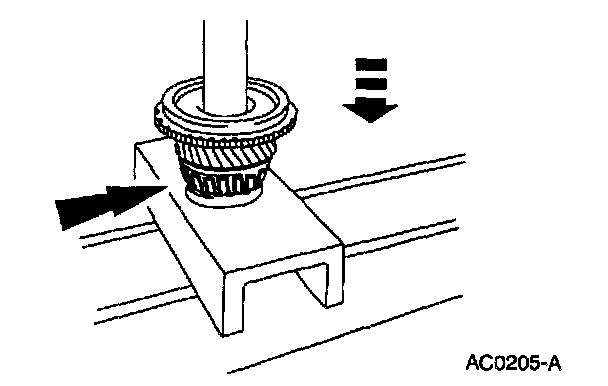

1. Remove the bearing.
^ Position the input shaft in the bearing pulling attachment.
^ Remove the bearing.

Assembly

CAUTION: To prevent damage, inspect the surface of the input shaft in the area of the bearing race to make sure it is smooth and free of burrs.

1. Press method:
^ Use pinion bearing cone replacer, Axle Bearing/Seal Plate and press to install the bearing until it seats against its stop.

2. CAUTION: Do not heat the bearing cone for more than 15 minutes.

CAUTION: Do not drive against the bearing cone. Drive against the inner race only.

Heat method:
^ Use a heat gun or gear and bearing heater to heat the bearing to 160°C (320°F).
^ Seat the bearing against its stop.
