Stay Pad-Convertible Top

REMOVAL
1. Remove the convertible top material.
2. Remove the rear window glass.
3. Remove the staples from all of the bows.

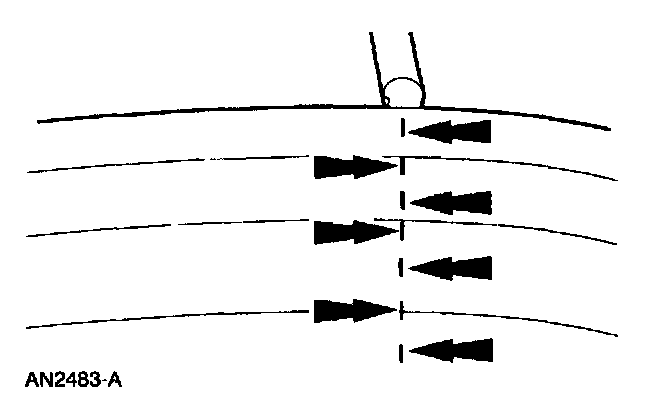

NOTE: Mark the old staypad staple locations and transfer to the new staypads.

INSTALLATION

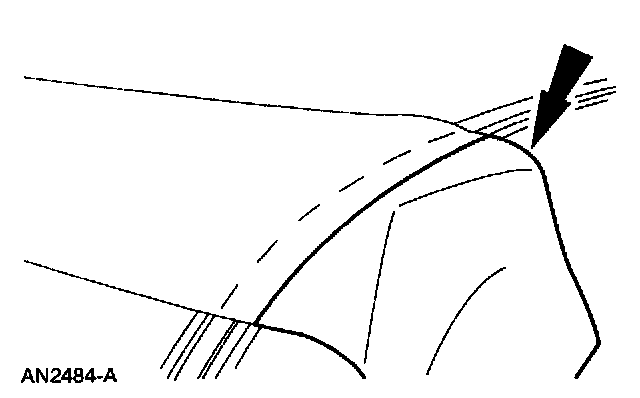

1. Staple the stay pad to the number one bow.







2. Staple the staypad to the number four bow.

NOTE: The staypad should be tight between the number one and number four bows.







3. Cut the excess staypad material from the rear of the number four bow.

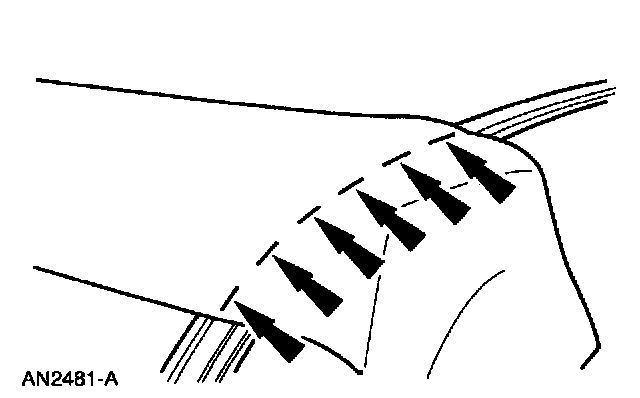

4. Staple the staypad to the number two bow.







5. Staple the staypad to the number three bow.
6. Install the rear window glass.
7. Install the convertible top material.
