Steering Column Joint/Sphere

Removal

CAUTION: The lower end of the steering column shaft must be wired in such a way that the steering column does not rotate, resulting in damage to the air bag sliding contact.

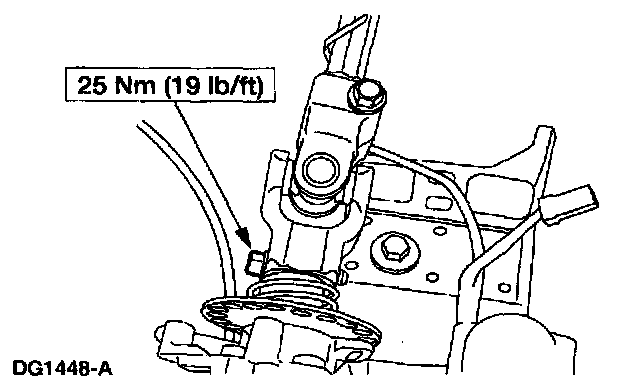

NOTE: Discard the steering column shaft pinch bolt and the lower intermediate shaft-to-steering gear pinch bolt upon removal. Do not reuse, install new bolts.

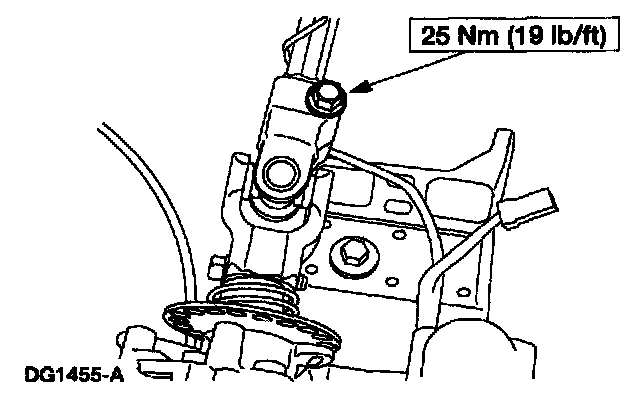

Remove and discard the steering column shaft pinch bolts.





2. Remove the coupler.

Installation








1. Using new fasteners, follow the removal procedure in reverse order.
